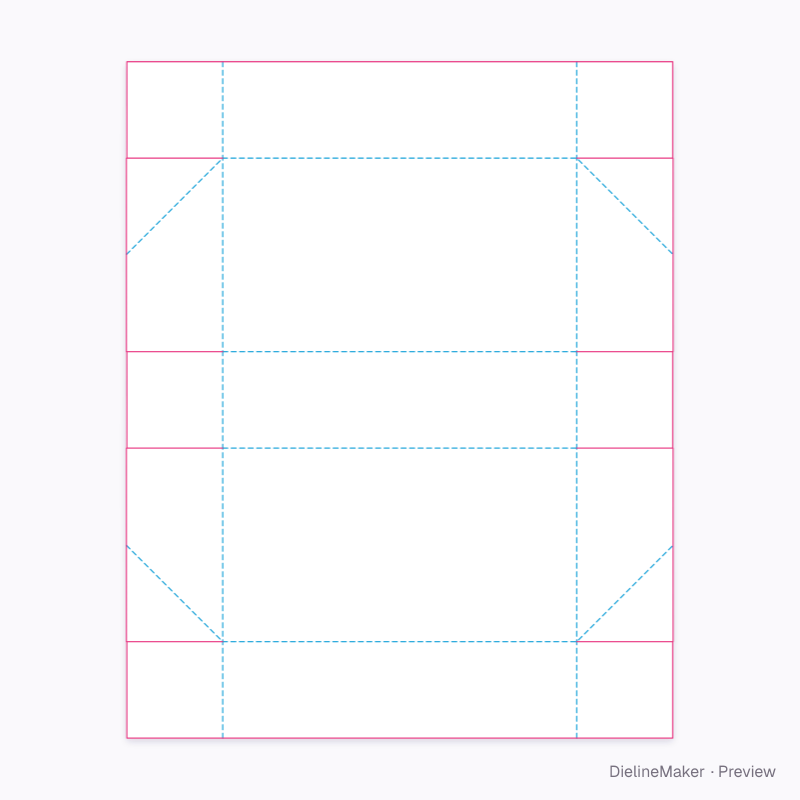

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F20.60.00.00Trays & lids
Collapsible tray with hinged cover dieline
Two 2-point glued trays joined at the back: ships flat, pops up into a hinged box. A ready-sized preset of the collapsible tray and cover — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 120 × 60 mm
Outside223 × 122 × 60.5 mm
Flat blank340.5 × 421 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F20.60.00.00
- Inside size
- Length (A) 220 · Depth (B) 120 · Height 60 mm
- Size range
- Length (A) 60–600 · Depth (B) 40–400 · Height 15–200 mm
- Manufacturing
- 220.5 × 120.5 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.143 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350E-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F20.60.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 220.5 × 120.5 | L + T × W + T |
| Front wall | 220.5 × 60 | L + T × H |
| Back wall | 220.5 × 60 | L + T × H |
| Cover top | 220.5 × 120.5 | L + T × W + T |
| Cover front wall | 220.5 × 60 | L + T × H |
| Left end wall | 60 × 120.5 | H × W + T |
| Cover left end | 60 × 120.5 | H × W + T |
| Corner flap (glued) ×2 | 59.8 × 60 | – × H |
| Corner flap ×2 | 59.8 × 60 | – × H |
| Cover corner flap (glued) ×2 | 59.8 × 60 | – × H |
| Right end wall | 60 × 120.5 | H × W + T |
| Cover right end | 60 × 120.5 | H × W + T |
