ECMA B20.01.00.00 · Nib-lock tray dieline

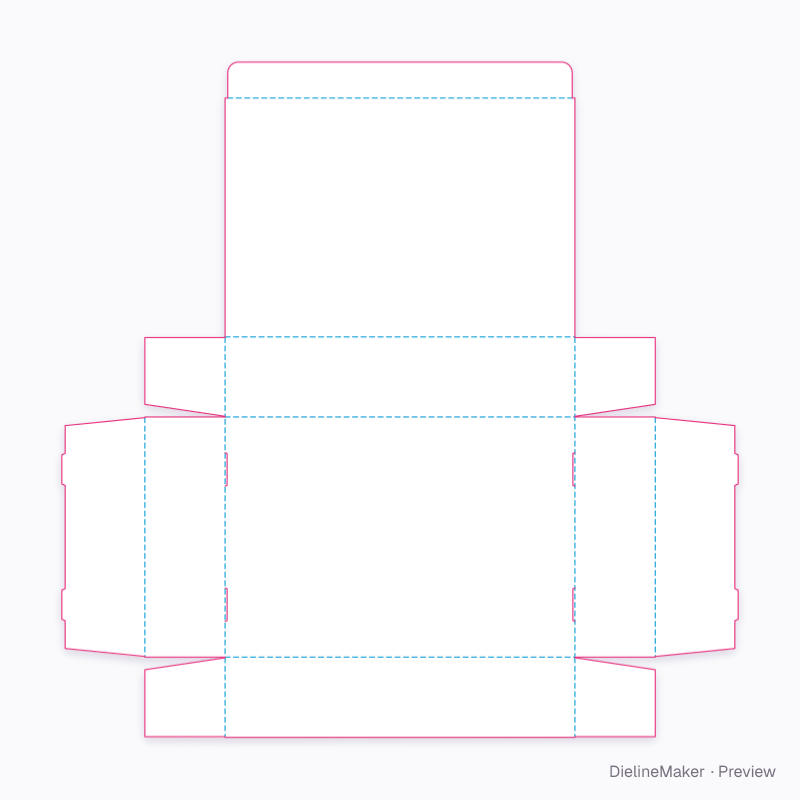

Two directly folded end returns trap four corner flaps and lock into retained floor cuts. Choose an open tray or a hinged tuck cover. A ready-sized preset of the paperboard nib-lock tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 45 mm
Outside263.5 × 181.5 × 45.8 mm
Flat blank447.5 × 271 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B20.01.00.00
- Inside size
- Inside length 260 · Inside width 180 · Inside height 45 mm
- Size range
- Inside length 80–700 · Inside width 60–550 · Inside height 15–180 mm
- Manufacturing
- 262.5 × 180.5 × 45.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.111 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350F-fluteSBS 18 pt
- Good for

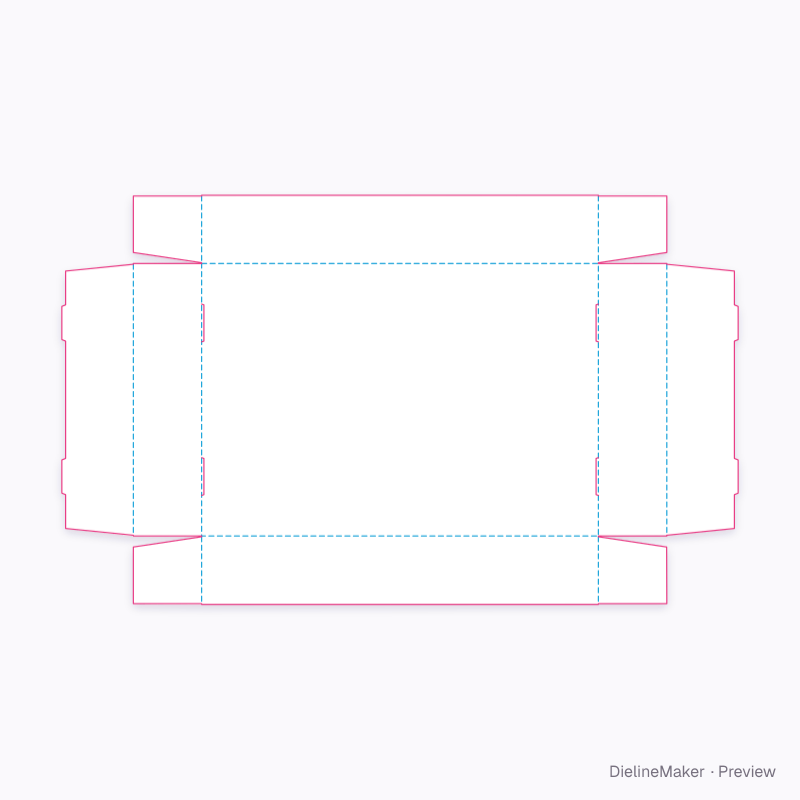

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B20.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 262.5 × 180.5 | – × W + T |
| Tray wall ×2 | 262.5 × 45.3 | – × H + T/2 |
| Tray wall ×2 | 45.3 × 180.5 | H + T/2 × W + T |
| Glued inner wall ×2 | 47.3 × 179.5 | – × W − T |
| Corner glue flap ×4 | 45.3 × 44.3 | H + T/2 × H − 1.5T |
