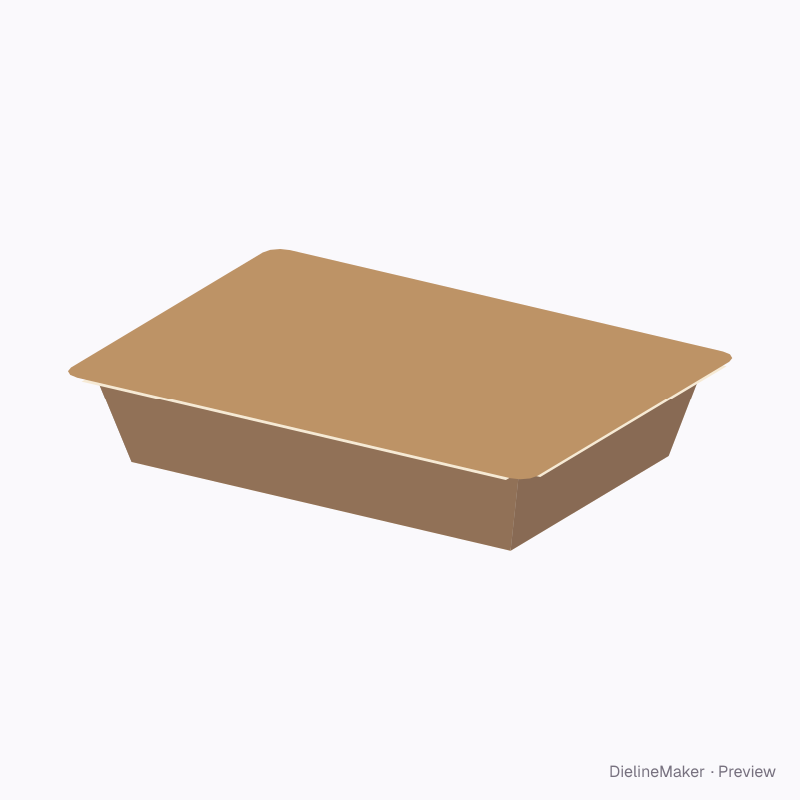

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA D20.20.21.62Trays & lids
ECMA D20.20.21.62 · Flared webbed tray with flange and cover plate dieline
Flared webbed tray with flange and cover plate. A ready-sized preset of the non-rectangular and flared trays — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 40 mm
Outside222.2 × 162.2 × 40.5 mm
Flat blank284 × 224 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA D20.20.21.62
- Inside size
- Length (A) 180 · Width (B) 120 · Height 40 mm
- Size range
- Length (A) 60–600 · Width (B) 40–500 · Height 10–200 mm
- Manufacturing
- 180.5 × 120.5 × 40.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Tray, Cover plate
- Board area
- 0.095 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

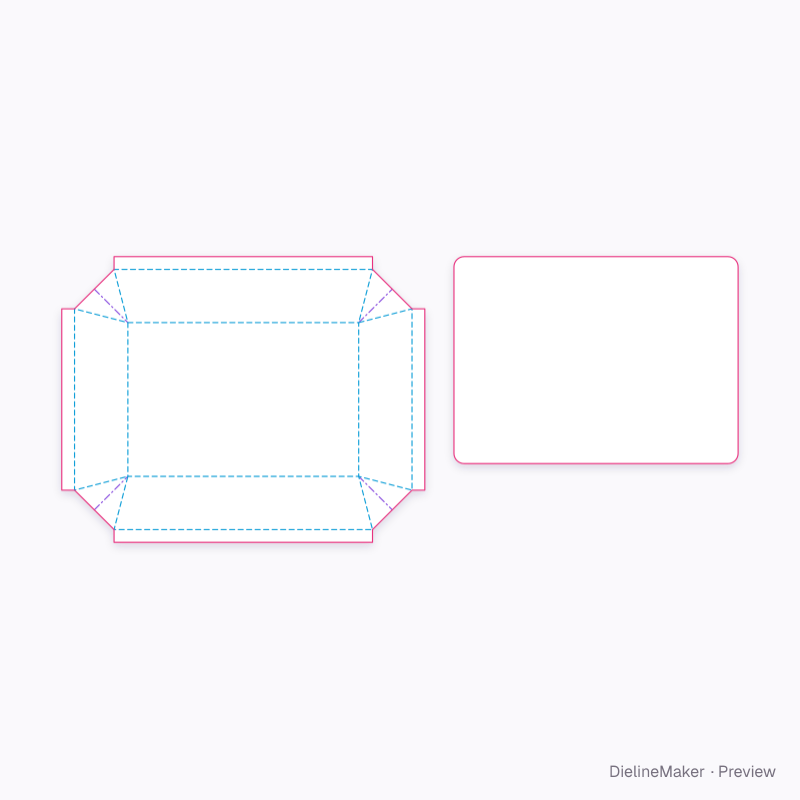

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA D20.20.21.62 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseTray | 180.5 × 120.5 | L + T × W + T |
| Back wallTray | 180.5 × 41.7 | L + T × – |
| Flange ×2Tray | 202.1 × 10.1 | – |
| Right wallTray | 41.7 × 120.5 | – × W + T |
| Flange ×2Tray | 10.1 × 142.1 | – |
| Front wallTray | 180.5 × 41.7 | L + T × – |
| Left wallTray | 41.7 × 120.5 | – × W + T |
| Corner web ×2Tray | 43 × 18.8 | – |
| Corner web ×2Tray | 37.1 × 21.8 | – |
| Corner web ×2Tray | 18.8 × 43 | – |
| Corner web ×2Tray | 21.8 × 37.1 | – |
| Cover plateCover plate | 222.2 × 162.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction8 options
- Wall flare°
- Flange widthmm
