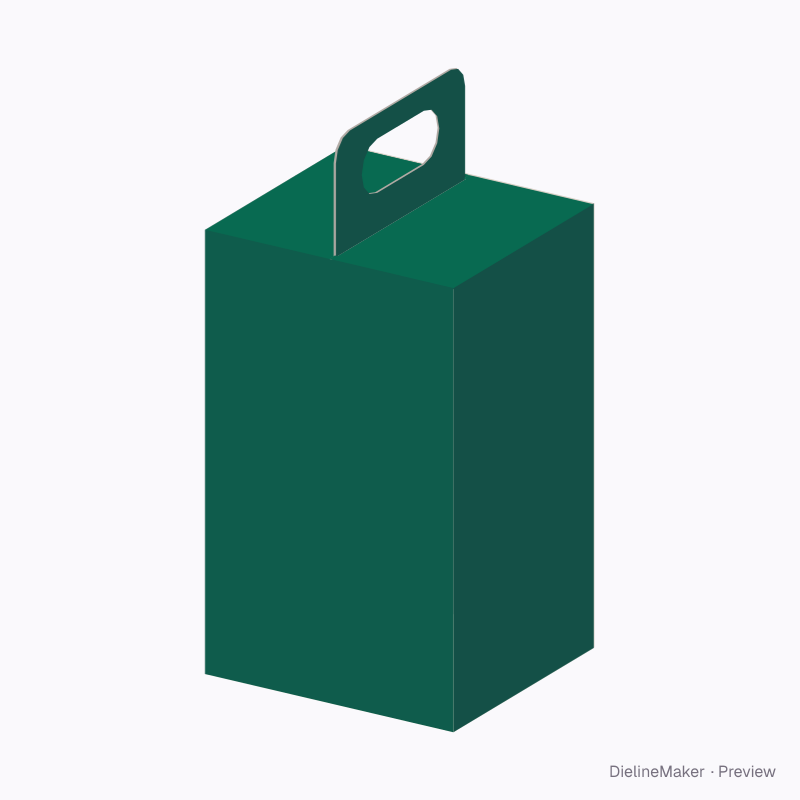

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CARRY-SIDE-FLAP-01Carriers
Side-flap handle carton dieline
Handles on the two side flaps come up through the slot of a tuck lid. Auxiliary feature reference: ECMA X83; product code is DM-CARRY-SIDE-FLAP-01. A ready-sized preset of the carton with carrying handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 100 × 180 mm
Outside111 × 101 × 181 mm
Flat blank433.5 × 409.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARRY-SIDE-FLAP-01
- Inside size
- Length 110 · Width 100 · Height 180 mm
- Size range
- Length 60–400 · Width 40–250 · Height 60–400 mm
- Manufacturing
- 110.5 × 100.5 × 180.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.133 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARRY-SIDE-FLAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 110.5 × 180.5 | L + T × H + T |
| Left side | 100.5 × 180.5 | W + T × H + T |
| Back | 110.5 × 180.5 | L + T × H + T |
| Right side | 100 × 180.5 | W × H + T |
| Glue flap | 12 × 180.5 | – × H + T |
| Bottom closure | 110.5 × 99.5 | L + T × W − T |
| Bottom tuck | 109.5 × 15 | L − T × – |
| Bottom dust flap | 100.5 × 54.3 | W + T × – |
| Bottom dust flap | 100 × 54.3 | W × – |
| Handle half flap | 100.5 × 54.8 | W + T × – |
| Handle | 92.5 × 48 | – |
| Handle half flap | 100 × 54.8 | W × – |
| Handle | 92 × 48 | – |
| Slotted lid ×2 | 55.3 × 99.5 | – × W − T |
| Top tuck | 109.5 × 15 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Handle4 options
- Handle heightmm
- Hand hole widthmm
- Hand hole heightmm
- Tuck depthmm
