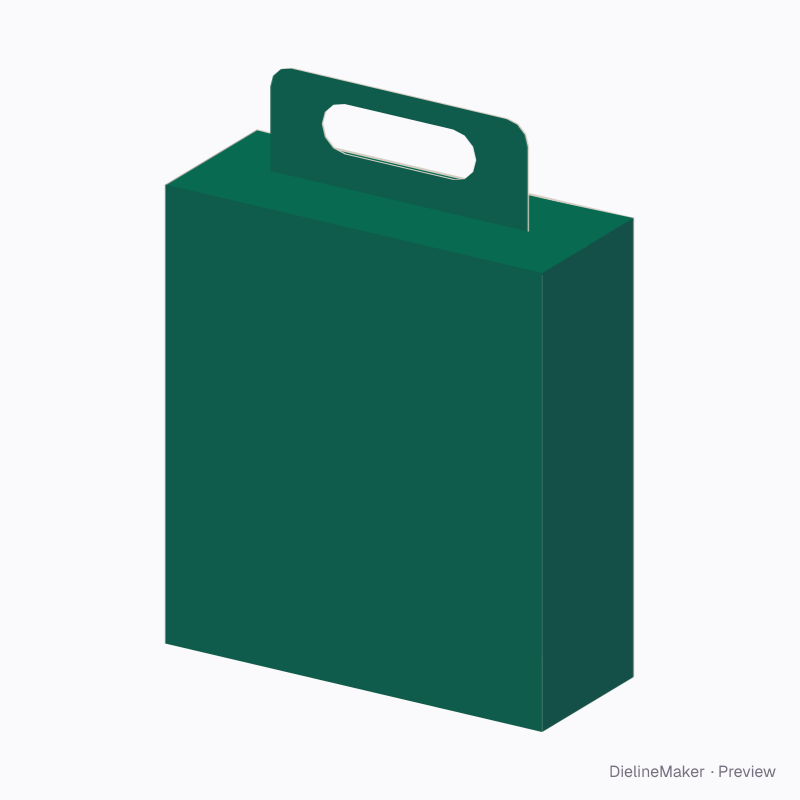

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CARRY-SLOTTED-SIDES-01Carriers
Handle carton with tuck-in side flaps dieline
Handles on the main half lids, covered by tall side flaps with slits that tuck in. Auxiliary feature reference: ECMA X84; product code is DM-CARRY-SLOTTED-SIDES-01. A ready-sized preset of the carton with carrying handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 70 × 200 mm
Outside181 × 71 × 201 mm
Flat blank513.5 × 464.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARRY-SLOTTED-SIDES-01
- Inside size
- Length 180 · Width 70 · Height 200 mm
- Size range
- Length 60–400 · Width 40–250 · Height 60–400 mm
- Manufacturing
- 180.5 × 70.5 × 200.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.170 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for

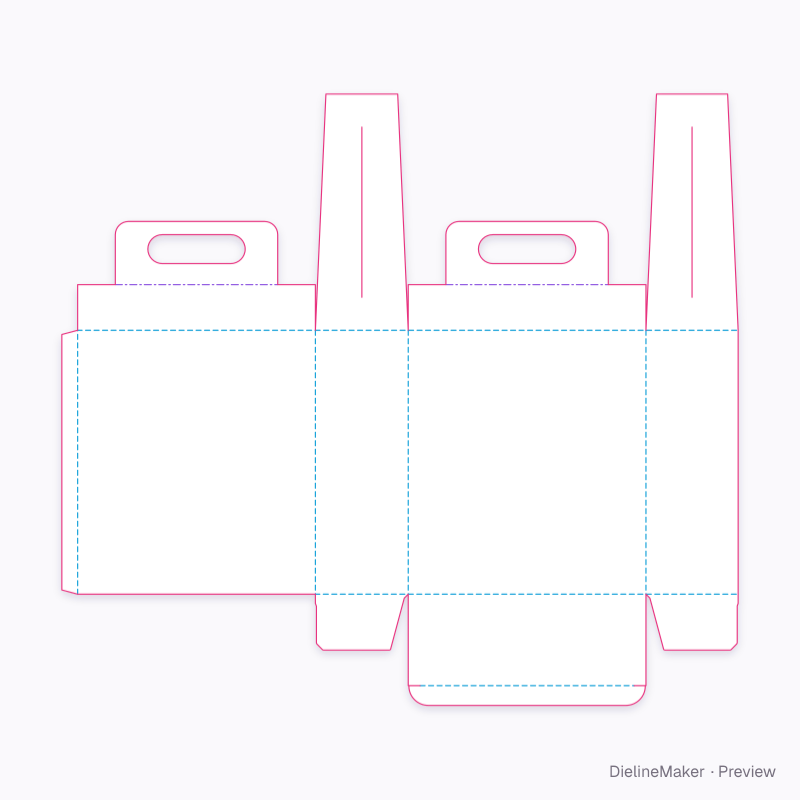

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARRY-SLOTTED-SIDES-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 180.5 × 200.5 | L + T × H + T |
| Left side | 70.5 × 200.5 | W + T × H + T |
| Back | 180.5 × 200.5 | L + T × H + T |
| Right side | 70 × 200.5 | W × H + T |
| Glue flap | 12 × 200.5 | – × H + T |
| Bottom closure | 180.5 × 69.5 | L + T × W − T |
| Bottom tuck | 179.5 × 15 | L − T × – |
| Bottom dust flap | 70.5 × 42.5 | W + T × – |
| Bottom dust flap | 70 × 42.5 | W × – |
| Half lid ×2 | 180.5 × 34.8 | L + T × – |
| Handle ×2 | 123.2 × 48 | – |
| Tuck-in side flap ×2 | 35.3 × 179.5 | – × L − T |
| Tuck-in side flap ×2 | 35 × 179.5 | – × L − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Handle4 options
- Handle heightmm
- Hand hole widthmm
- Hand hole heightmm
- Tuck depthmm
The carton with carrying handle family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

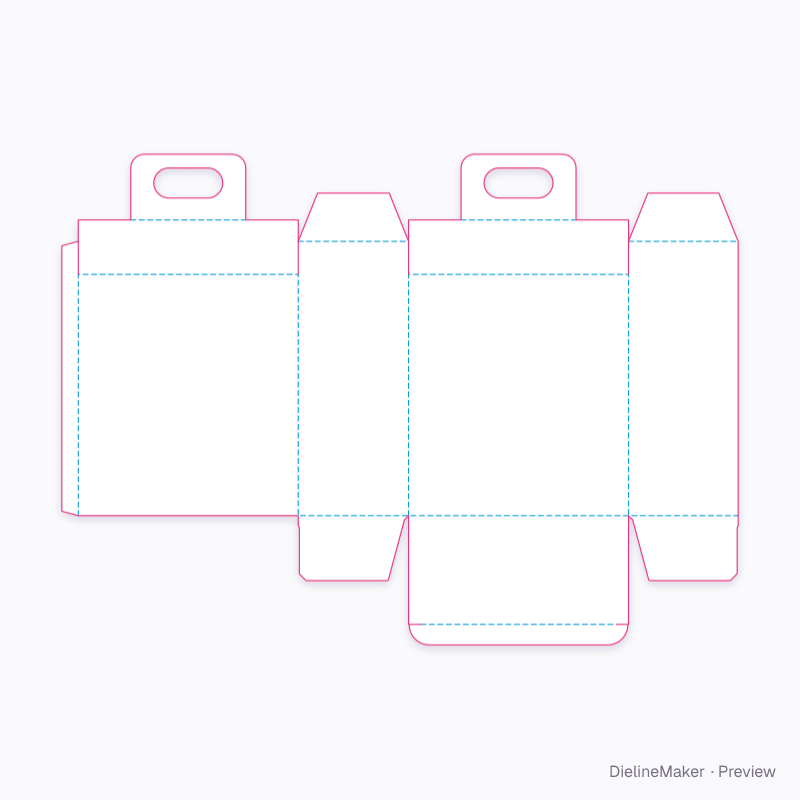

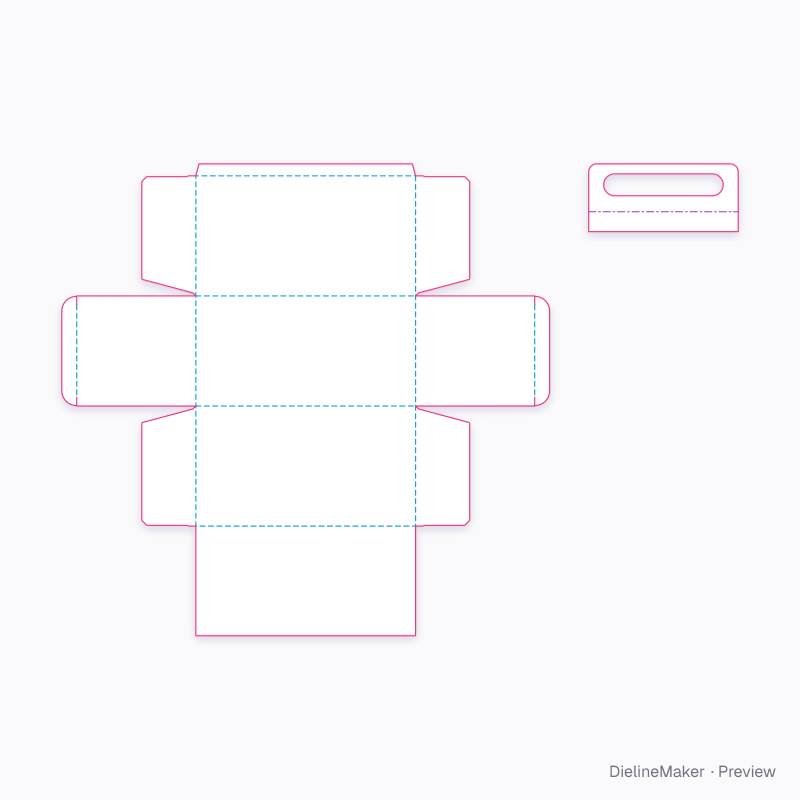

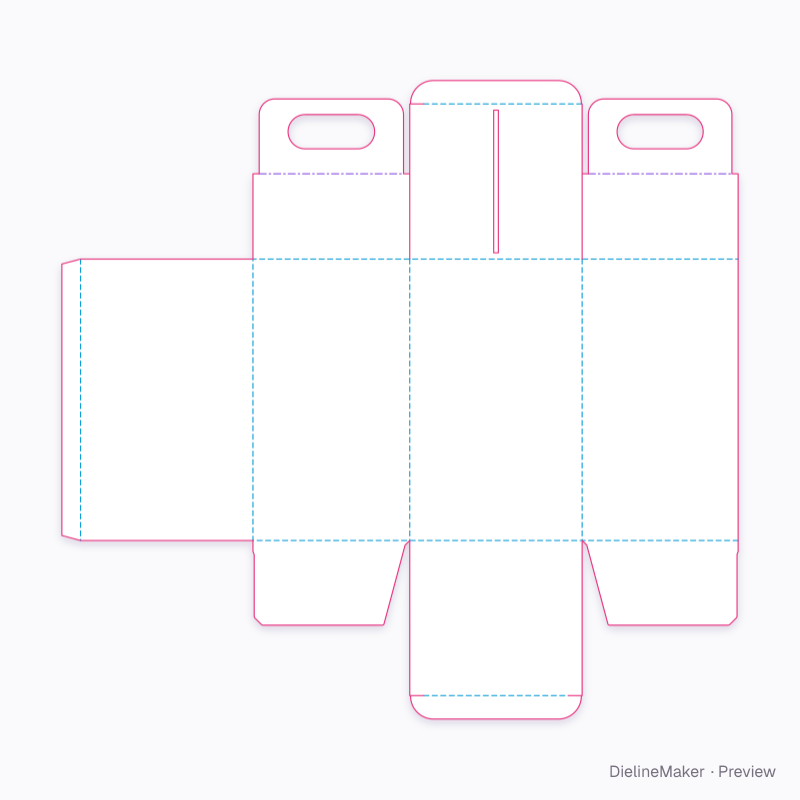

Similar structures
