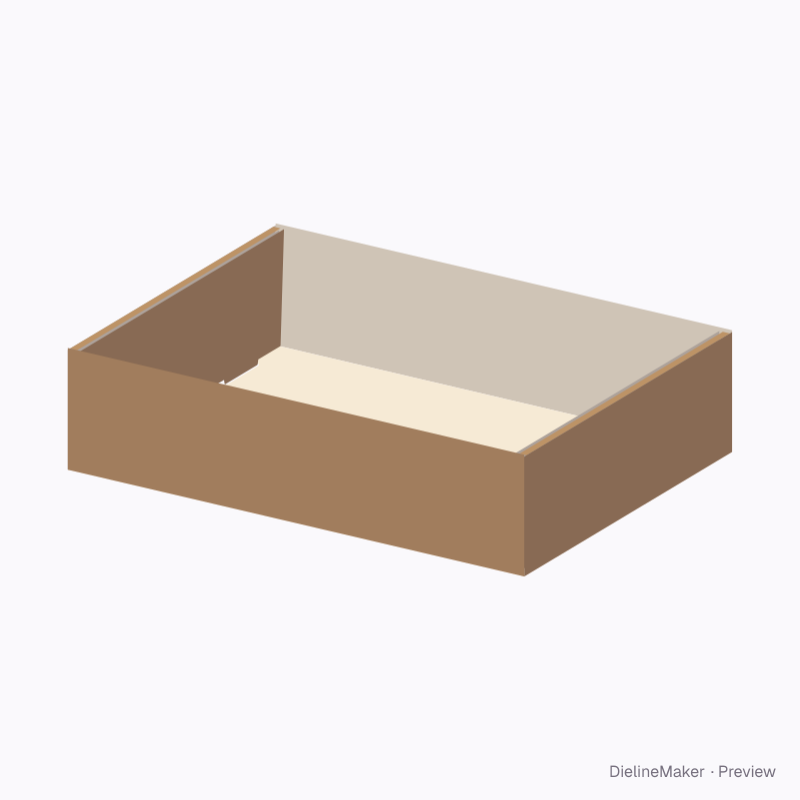

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0422Trays & lids
Roll-end tray 400×300×100 dieline
Glue-free produce or shelf tray with doubled, locked end walls. A ready-sized preset of the roll-end tray with corner flaps — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside419.2 × 306.4 × 103.2 mm
Flat blank828.8 × 506.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0422
- Inside size
- Length 400 · Width 300 · Height 100 mm
- Size range
- Length 50–800 · Width 40–600 · Height 15–300 mm
- Manufacturing
- 416 × 303.2 × 101.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.376 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0422 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 416 × 303.2 | – × W + T |
| Front | 416 × 101.6 | – × H + T/2 |
| Back | 416 × 101.6 | – × H + T/2 |
| Front ear ×2 | 145.2 × 93.6 | – × H − 2T |
| Back ear ×2 | 145.2 × 93.6 | – × H − 2T |
| Left end | 100 × 303.2 | H × W + T |
| Left end roll | 6.4 × 296.8 | – × W − T |
| Left end (inside) | 100 × 296.8 | H × W − T |
| Right end | 100 × 303.2 | H × W + T |
| Right end roll | 6.4 × 296.8 | – × W − T |
| Right end (inside) | 100 × 296.8 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lock tonguescount
