FEFCO 0874Display
Shallow display tray dieline

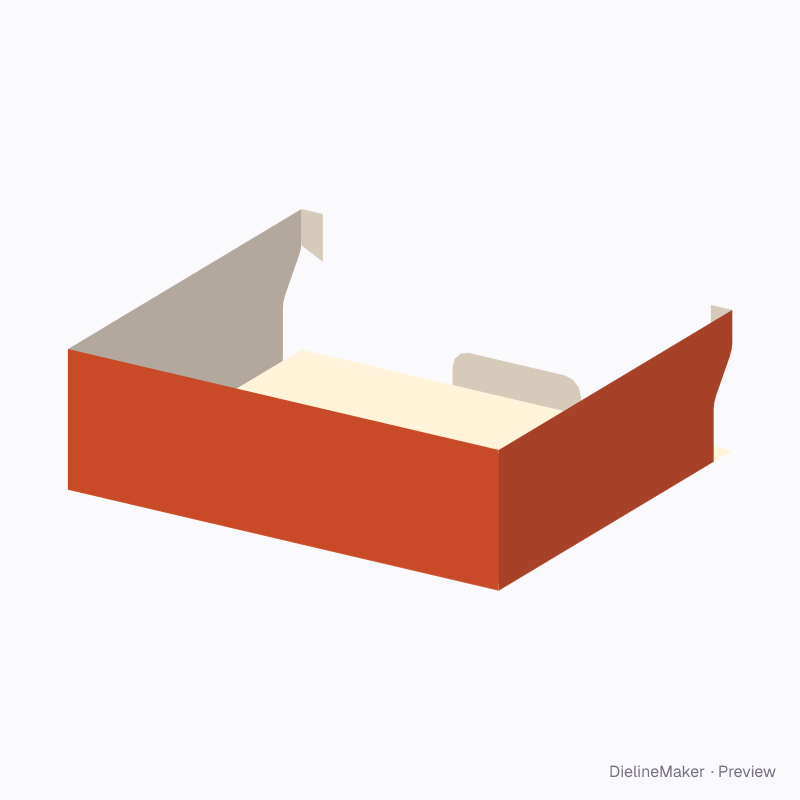

A low tray open at the back: full-height front and sides, a centre tongue on the back edge and corner ears. A ready-sized preset of the counter display tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 260 × 90 mm
Outside303.2 × 263.2 × 90 mm
Flat blank481.6 × 374.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0874
- Inside size
- Width 300 · Depth 260 · Back height 90 mm
- Size range
- Width 120–1000 · Depth 100–800 · Back height 60–900 mm
- Manufacturing
- 301.6 × 261.6 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.157 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB doubleE-flute K
- Good for

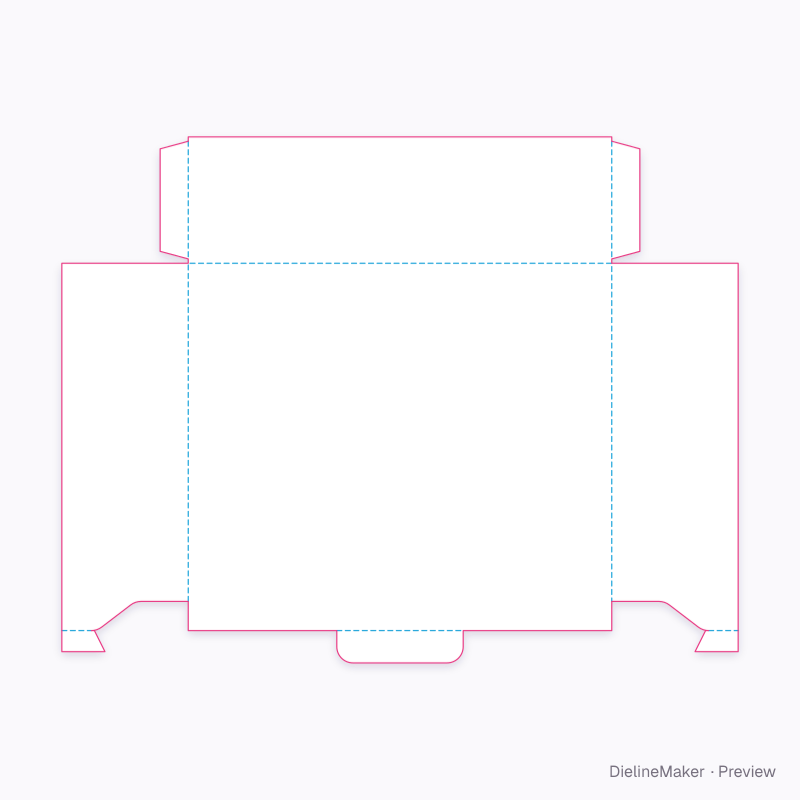

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0874 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 301.6 × 261.6 | L + T × W + T |
| Front | 301.6 × 90 | L + T × H |
| Back | 90 × 23 | – |
| Left side | 90 × 240.8 | H × – |
| Right side | 90 × 240.8 | H × – |
| Glue flap ×2 | 20 × 83.8 | – |
| Corner ear ×2 | 23.2 × 15 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction10 options
- Front heightmm
- Slope positionmm
- Shoulder radiusmm
- Doubled walls5 options
- Back tonguemm
The counter display tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this shallow display tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
