FEFCO 0714Shipping
Automatic-bottom telescope case dieline
Two pre-glued automatic-bottom tubes form a full-depth telescope case with double walls. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside321 × 217.8 × 162.8 mm
Flat blank1093.6 × 289 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0714
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 100–1000 · Width 60–800 · Height 50–900 mm
- Manufacturing
- 303.2 × 203.2 × 153.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 0.543 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

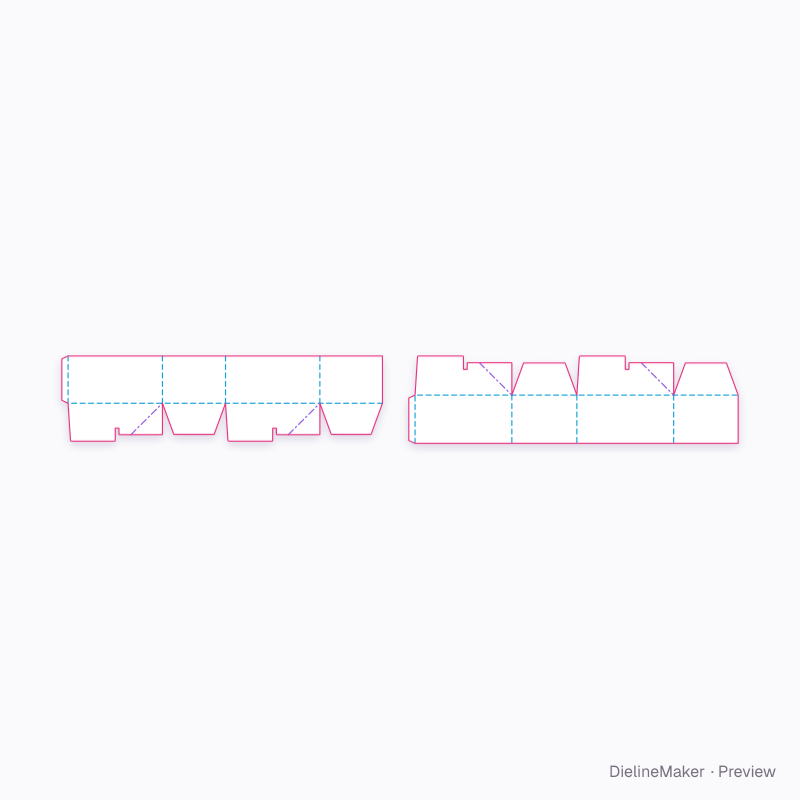

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0714 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 303.2 × 153.2 | L + T × H + T |
| Left sideBody | 203.2 × 153.2 | W + T × H + T |
| BackBody | 303.2 × 153.2 | L + T × H + T |
| Right sideBody | 200 × 153.2 | W × H + T |
| Glue flapBody | 32 × 153.2 | – × H + T |
| Crash-lock flap (back)Body | 303.2 × 122.6 | L + T × – |
| Glued web ×2Body | 143.7 × 71.4 | – |
| Bottom side flapBody | 203.2 × 100 | W + T × – |
| Crash-lock flap (front)Body | 303.2 × 122.6 | L + T × – |
| Bottom side flapBody | 200 × 100 | W × – |
| Pose rigCover | 100 × 189.6 | – |
| FrontCover | 100 × 189.6 | – |
| Left sideCover | 214.6 × 159.6 | – |
| BackCover | 317.8 × 159.6 | – |
| Right sideCover | 211.4 × 159.6 | – |
| Glue flapCover | 32 × 159.6 | – |
6 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Hook reachmm
- Hook notchmm
Ready-sized automatic-bottom telescope case presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this automatic-bottom telescope case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
