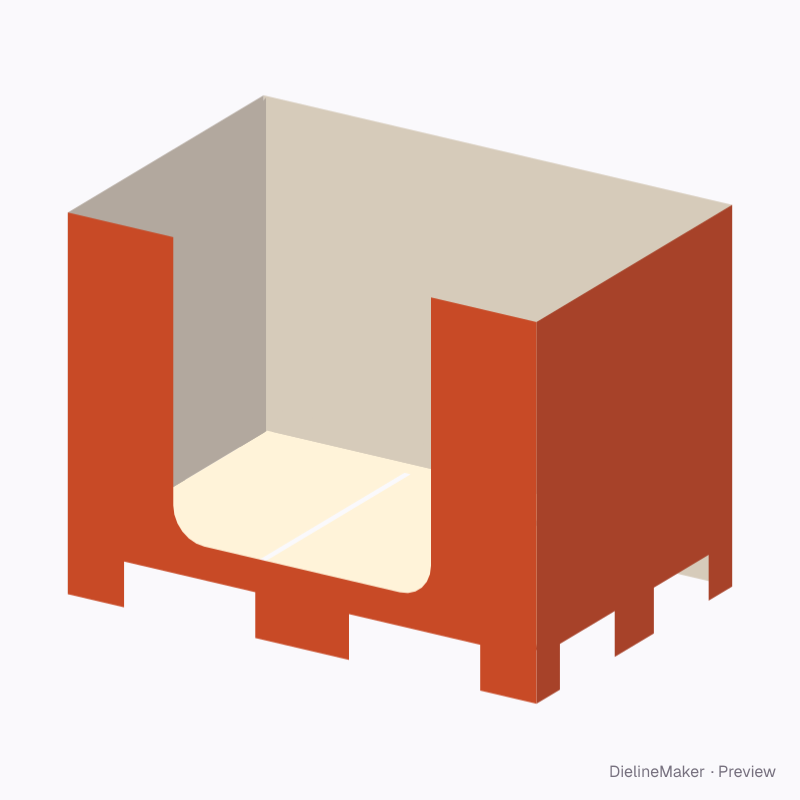

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0865Display
Footed bin with cut-away front dieline
Legs left between fork-entry cut-outs, a deep U front and a raised slatted floor. A ready-sized preset of the display bin with inserts — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 400 × 450 mm
Outside606.4 × 406.4 × 450 mm
Flat blank2044.8 × 450 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0865
- Inside size
- Width 600 · Depth 400 · Height 450 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Height 200–1600 mm
- Manufacturing
- 603.2 × 403.2 × 450 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Footed bin, Slatted floor
- Board area
- 1.025 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0865 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFooted bin | 603.2 × 450 | L + T × H |
| Right sideFooted bin | 403.2 × 450 | W + T × H |
| Left sideFooted bin | 403.2 × 450 | W + T × H |
| BackFooted bin | 603.2 × 450 | L + T × H |
| Glue flapFooted bin | 32 × 446 | – |
| LipSlatted floor | 588.4 × 27 | – |
| Slatted floorSlatted floor | 588.4 × 394.8 | – |
| LipSlatted floor | 576.8 × 27 | – |
| Lip ×2Slatted floor | 27 × 383.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Construction5 options
- Columnscount
- Rowscount
- Headermm
- Front heightmm
- Foot heightmm
- Crossed floor supportson / off
- Cut-away depthmm
The display bin with inserts family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this footed bin with cut-away front yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
