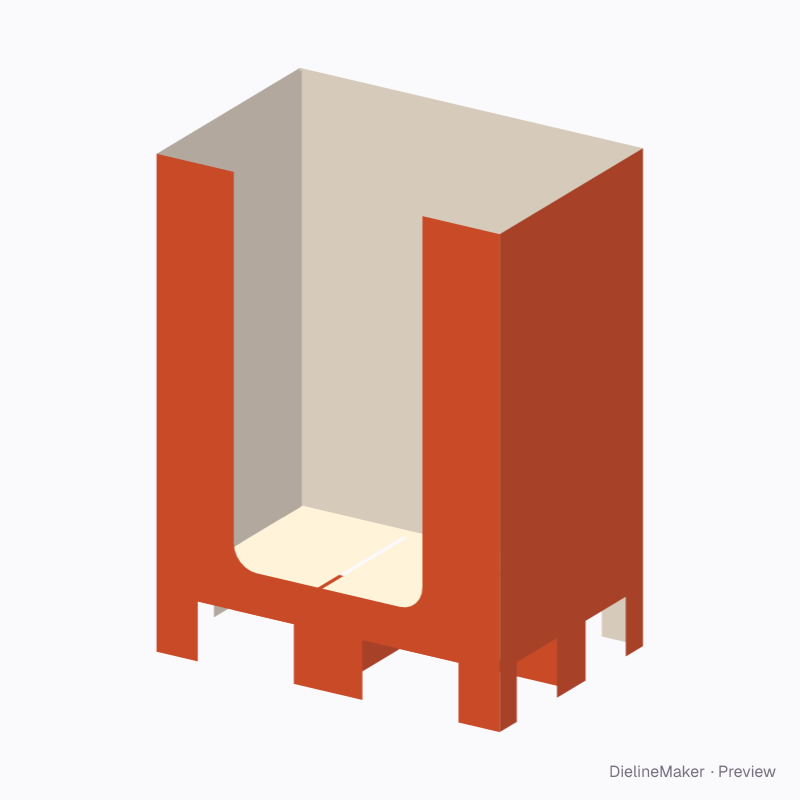

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BIN-FLOOR-SUPPORT-01Display
Footed bin with crossed floor supports dieline
The 0865 footed bin with two half-slotted strips crossing under the raised floor for heavier loads. A ready-sized preset of the display bin with inserts — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 400 × 800 mm
Outside606.4 × 406.4 × 800 mm
Flat blank2044.8 × 800 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BIN-FLOOR-SUPPORT-01
- Inside size
- Width 600 · Depth 400 · Height 800 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Height 200–1600 mm
- Manufacturing
- 603.2 × 403.2 × 800 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Footed bin, Slatted floor, Floor support (long), Floor support (cross)
- Board area
- 1.733 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BIN-FLOOR-SUPPORT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontFooted bin | 603.2 × 800 | L + T × H |
| Right sideFooted bin | 403.2 × 800 | W + T × H |
| Left sideFooted bin | 403.2 × 800 | W + T × H |
| BackFooted bin | 603.2 × 800 | L + T × H |
| Glue flapFooted bin | 32 × 796 | – |
| LipSlatted floor | 588.4 × 48 | – |
| Slatted floorSlatted floor | 588.4 × 394.8 | – |
| LipSlatted floor | 576.8 × 48 | – |
| Lip ×2Slatted floor | 48 × 383.2 | – |
| Floor support (long)Floor support (long) | 584.4 × 96 | – |
| Floor support (cross)Floor support (cross) | 390.8 × 96 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Construction5 options
- Columnscount
- Rowscount
- Headermm
- Front heightmm
- Foot heightmm
- Crossed floor supportson / off
- Cut-away depthmm
The display bin with inserts family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this footed bin with crossed floor supports yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
