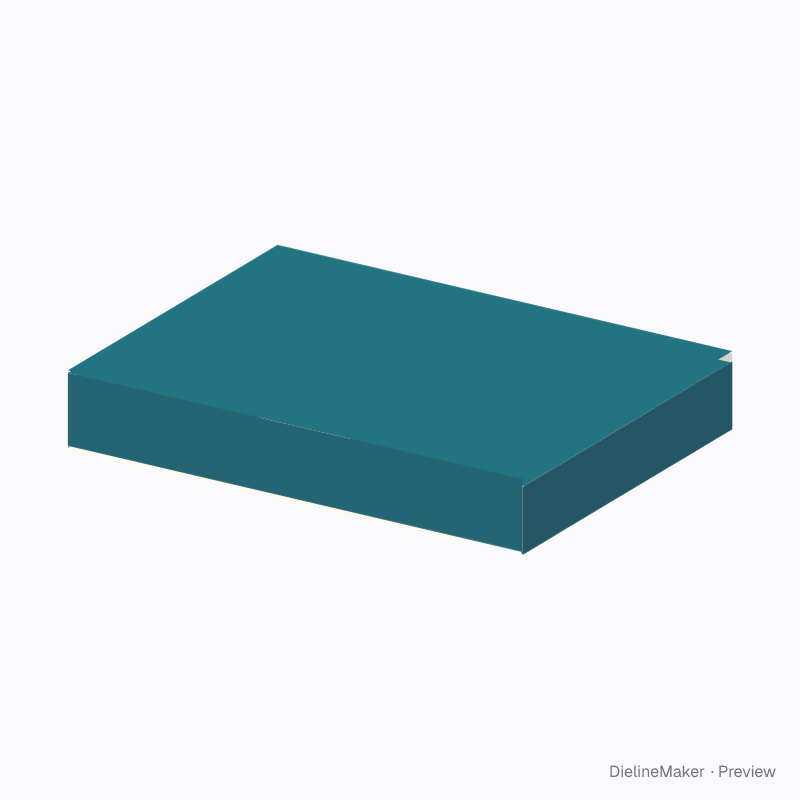

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0474Shipping
Diagonal-web book folder dieline
One-piece and separate-piece folders, with construction-specific covers, end closures and corner connections. A ready-sized preset of the standard folder and book wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 40 mm
Outside306.4 × 226.4 × 49.6 mm
Flat blank696.6 × 529.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0474
- Inside size
- Length 300 · Width 220 · Height 40 mm
- Size range
- Length 120–1200 · Width 80–900 · Height 10–160 mm
- Manufacturing
- 304.8 × 224.8 × 44.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.354 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

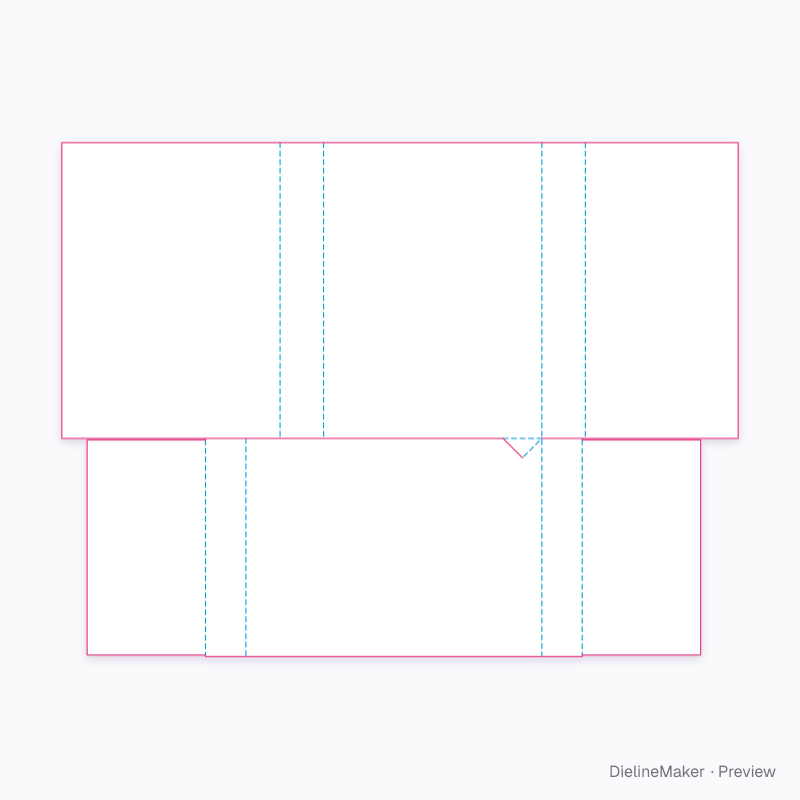

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0474 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Outer floor | 304.8 × 224.8 | – |
| Two-fold connecting web | 28.3 × 28.3 | – |
| Crossing inner floor | 40 × 304.8 | H × – |
| Inner end wall ×2 | 41.6 × 224.8 | H + T × – |
| Inner cover flap ×2 | 121.9 × 221.6 | – × W + T |
| Outer long wall ×2 | 44.8 × 304.8 | – |
| Full cover | 224.8 × 304.8 | – |
| Under cover flap | 157.4 × 304.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction12 options
- End flap depthmm
