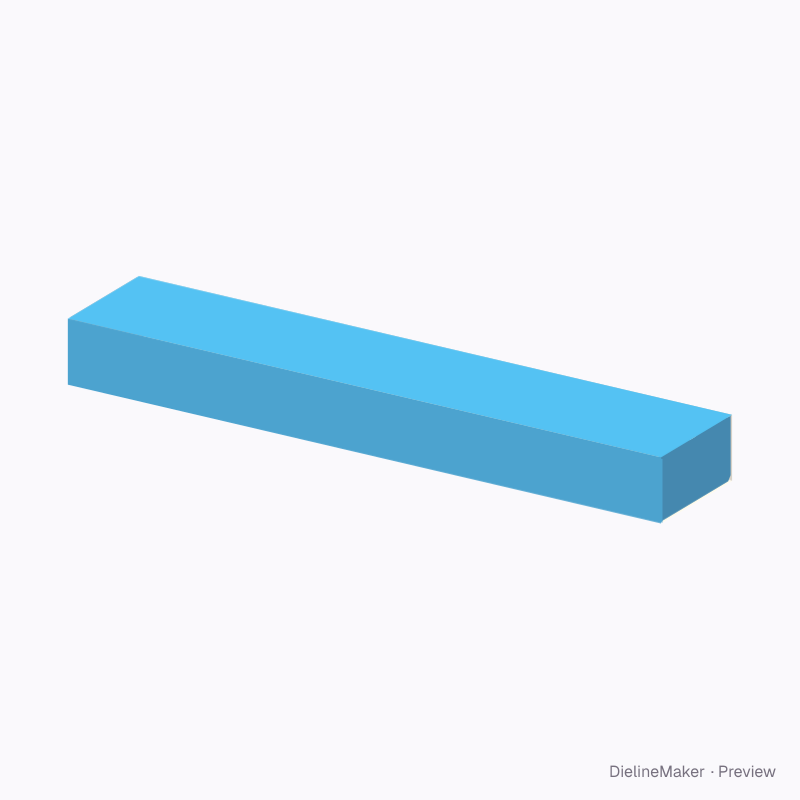

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0410Shipping
Five panel folder dieline
A one-piece wrap for long, slim goods: a fifth panel closes over the front, and every end is three layers thick so nothing pushes through. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside800 × 150 × 80 mm
Outside819.2 × 159.6 × 86.4 mm
Flat blank976 × 556 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0410
- Inside size
- Length 800 · Width 150 · Height 80 mm
- Size range
- Length 200–2000 · Width 40–700 · Height 25–400 mm
- Manufacturing
- 816 × 153.2 × 83.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.523 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0410 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bottom | 816 × 153.2 | L + 5T × W + T |
| Front side | 816 × 80 | L + 5T × H |
| Back side | 816 × 83.2 | L + 5T × H + T |
| Top | 816 × 156.4 | L + 5T × W + 2T |
| Closing panel | 816 × 83.2 | L + 5T × H + T |
| Side end flap ×4 | 73.4 × 76.8 | – × H − T |
| Bottom end flap ×2 | 80 × 146.8 | H × W − T |
| Top end flap ×2 | 80 × 146.8 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side flap depthmm
