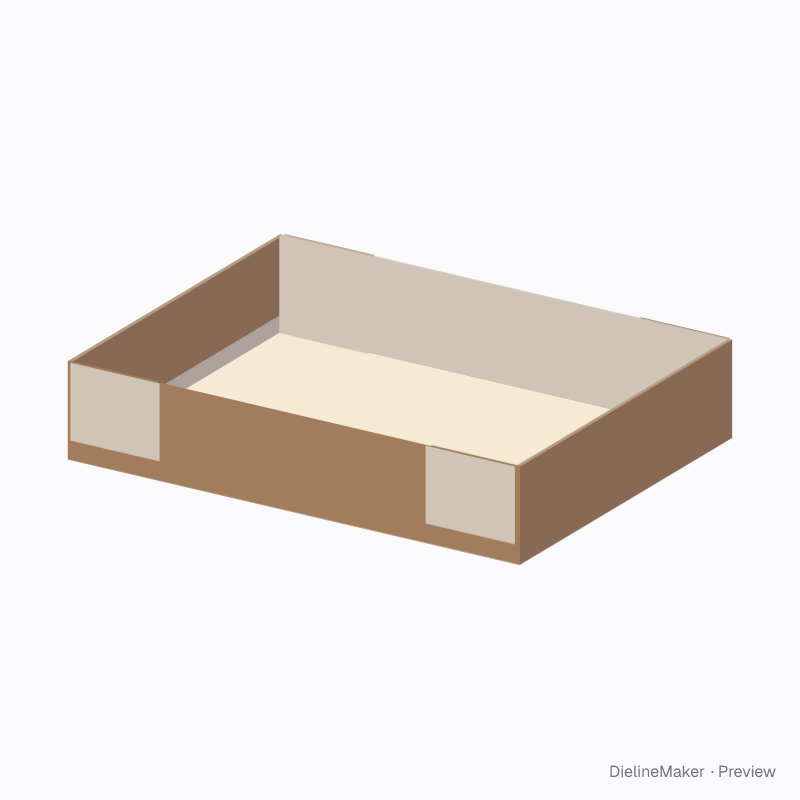

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0480Trays & lids
FEFCO 0480 · Double end walls with two sets of corner flaps dieline
Double end walls with two sets of corner flaps. A ready-sized preset of the glued and webbed standard tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 80 mm
Outside406.4 × 309.6 × 81.6 mm
Flat blank697.6 × 466.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0480
- Inside size
- Length 400 · Width 300 · Height 80 mm
- Size range
- Length 120–800 · Width 80–600 · Height 25–250 mm
- Manufacturing
- 404.8 × 304.8 × 80.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.324 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteFBB 400
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0480 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 404.8 × 304.8 | – |
| Tray wall ×2 | 404.8 × 80.8 | – × H + T/2 |
| Double wall ×2 | 80.8 × 304.8 | H + T/2 × – |
| Double wall roll ×2 | 1.6 × 304.8 | – |
| Double wall (inside) ×2 | 64 × 304.8 | – |
| Corner glue flap ×4 | 80.8 × 80 | H + T/2 × H |
| Corner glue flap ×4 | 64 × 80 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction8 options
- Inner end-wall heightmm
