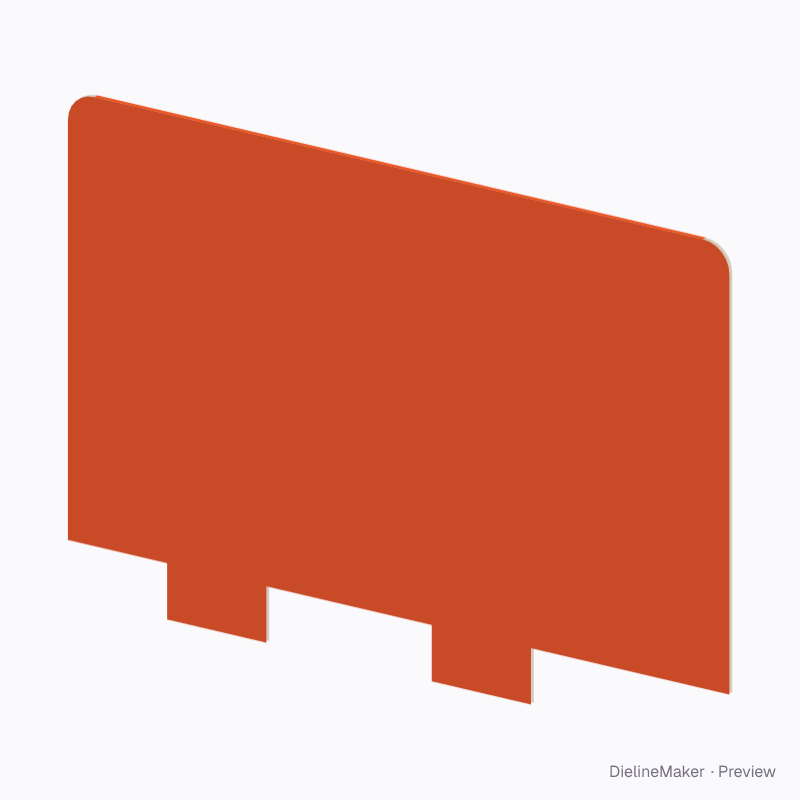

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0880Display
Display header panel dieline
A header board that plugs into a display: a double-ply panel with tabs, a single panel with slits, or a front with folded-back wings. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 150 × 350 mm
Outside500 × 150 × 350 mm
Flat blank500 × 703.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0880
- Inside size
- Width 500 · Wing depth 150 · Height 350 mm
- Size range
- Width 150–1400 · Wing depth 30–600 · Height 80–1000 mm
- Manufacturing
- 500 × 150 × 350 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.324 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB doubleE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0880 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front ply | 500 × 350 | L × H |
| Back ply roll | 460 × 3.4 | – |
| Back ply inner ply | 460 × 350 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction3 options
- Tab widthmm
- Tab / slit depthmm
- Corner radiusmm
Ready-sized display header panel presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this display header panel yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
