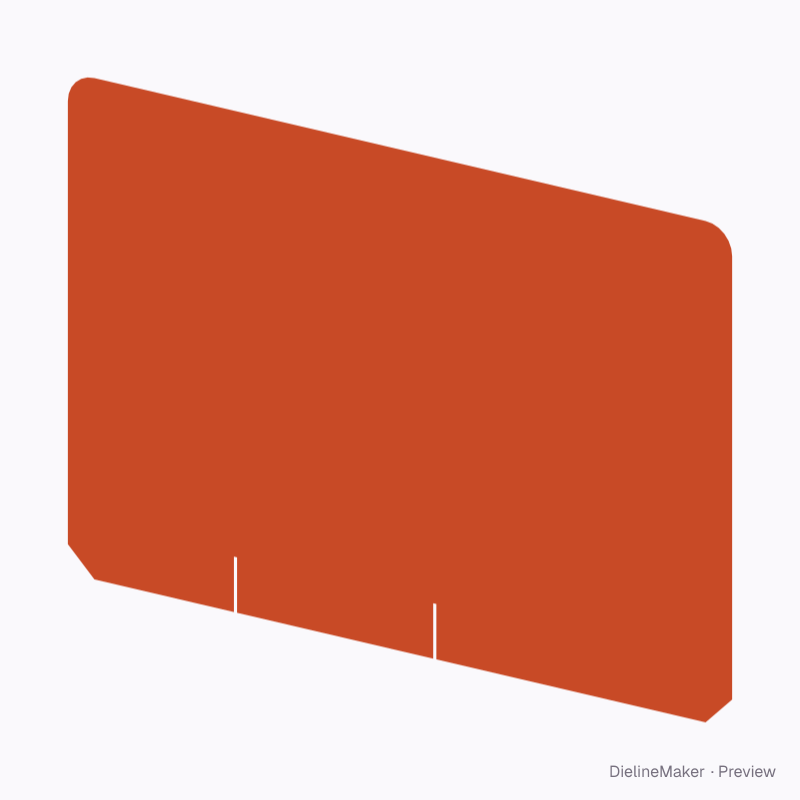

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0881Display
Slotted header board dieline
A single panel with two slits that slide over the display’s back. A ready-sized preset of the display header panel — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside550 × 150 × 380 mm
Outside550 × 150 × 380 mm
Flat blank632.9 × 632.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0881
- Inside size
- Width 550 · Wing depth 150 · Height 380 mm
- Size range
- Width 150–1400 · Wing depth 30–600 · Height 80–1000 mm
- Manufacturing
- 550 × 150 × 380 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.208 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB doubleE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction3 options
- Tab widthmm
- Tab / slit depthmm
- Corner radiusmm
The display header panel family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slotted header board yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
