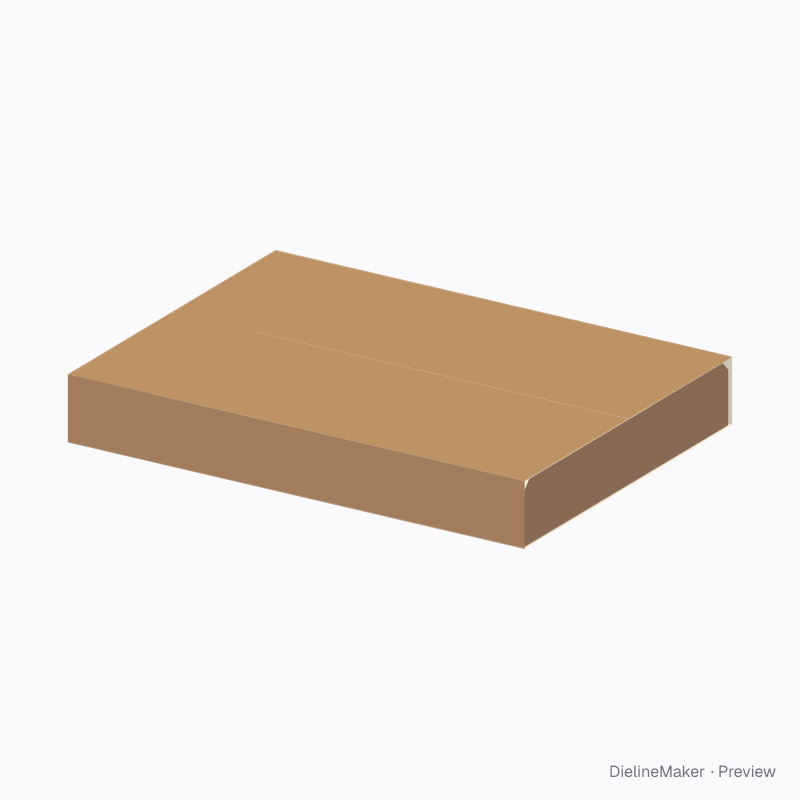

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-MEETCOVER-02Shipping
Centre-joint meeting covers without flaps dieline
Meeting covers over a tray with plain end walls and no dust or cover flaps. A ready-sized preset of the standard hinged and meeting-cover box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 40 mm
Outside306.4 × 223.2 × 43.2 mm
Flat blank384.8 × 526.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-MEETCOVER-02
- Inside size
- Length 300 · Width 220 · Height 40 mm
- Size range
- Length 160–900 · Width 120–650 · Height 20–100 mm
- Manufacturing
- 304.8 × 221.6 × 41.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.178 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline

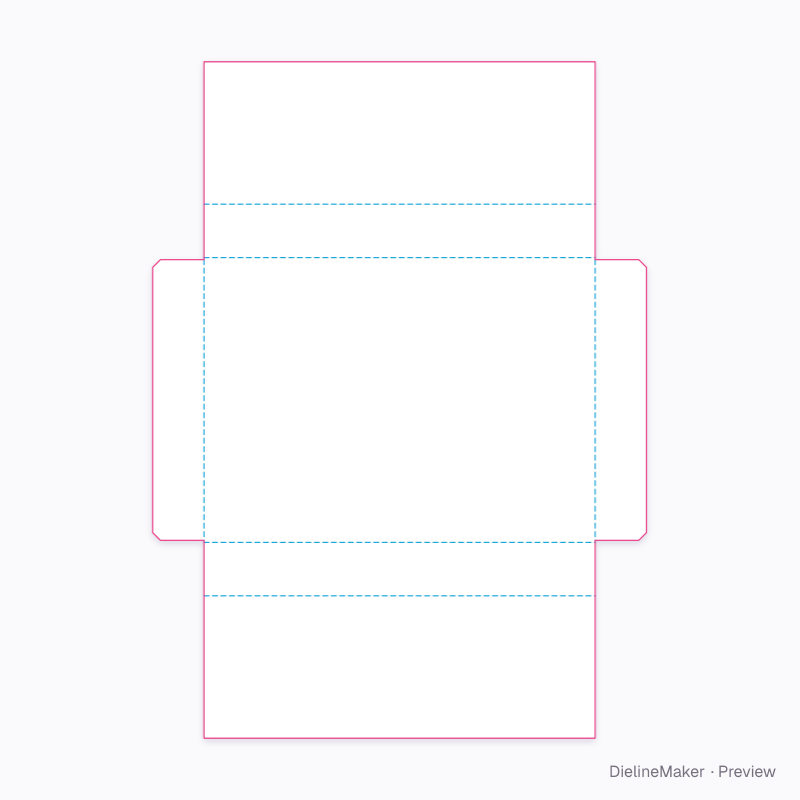

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-MEETCOVER-02 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 304.8 × 221.6 | – × W + T |
| n wall | 304.8 × 41.6 | – × H + T |
| Meeting cover ×2 | 304.8 × 110.8 | – |
| s wall | 304.8 × 41.6 | – × H + T |
| End flap ×2 | 40 × 218.4 | H × W − T |
