FEFCO 0465Shipping

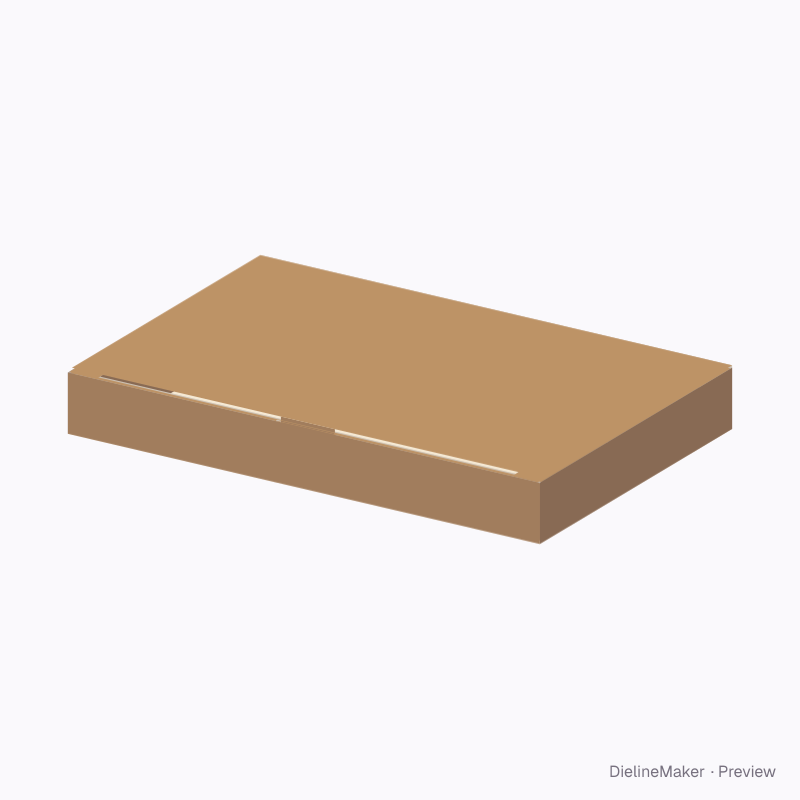

Presentation box with split side locks dieline
Folders and presentation boxes with construction-specific covers, rolled walls and corner locks, including a separate-cover drop-front tray. A ready-sized preset of the standard hinged and meeting-cover box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 40 mm
Outside351.2 × 229.6 × 44.8 mm
Flat blank596 × 596.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0465
- Inside size
- Length 300 · Width 220 · Height 40 mm
- Size range
- Length 160–900 · Width 120–650 · Height 20–100 mm
- Manufacturing
- 349.6 × 228 × 43.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.264 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

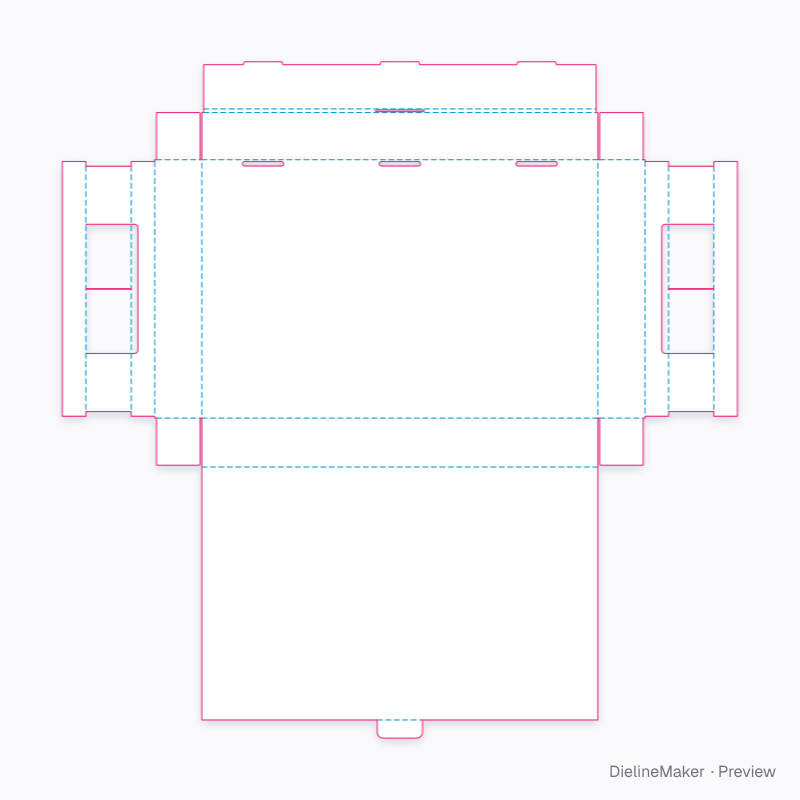

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0465 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 349.6 × 228 | – |
| Front | 349.6 × 41.6 | – × H + T |
| Front roll | 346.4 × 3.2 | – |
| Front (inside) | 346.4 × 41.6 | – × H + T |
| back | 349.6 × 43.2 | – × H + 2T |
| e | 41.6 × 228 | H + T × – |
| Corner flap ×4 | 38.4 × 41.6 | H − T × H + T |
| e rim | 20.8 × 224.8 | – |
| e inner | 40 × 216.4 | H × – |
| e foot | 20.8 × 224.8 | – |
| e split lock a | 40 × 56.7 | H × – |
| e split lock b | 40 × 56.7 | H × – |
| w | 41.6 × 228 | H + T × – |
| w rim | 20.8 × 224.8 | – |
| w inner | 40 × 216.4 | H × – |
| w foot | 20.8 × 224.8 | – |
4 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction10 options
- Cover tuck depthmm
- Retaining flap depthmm
