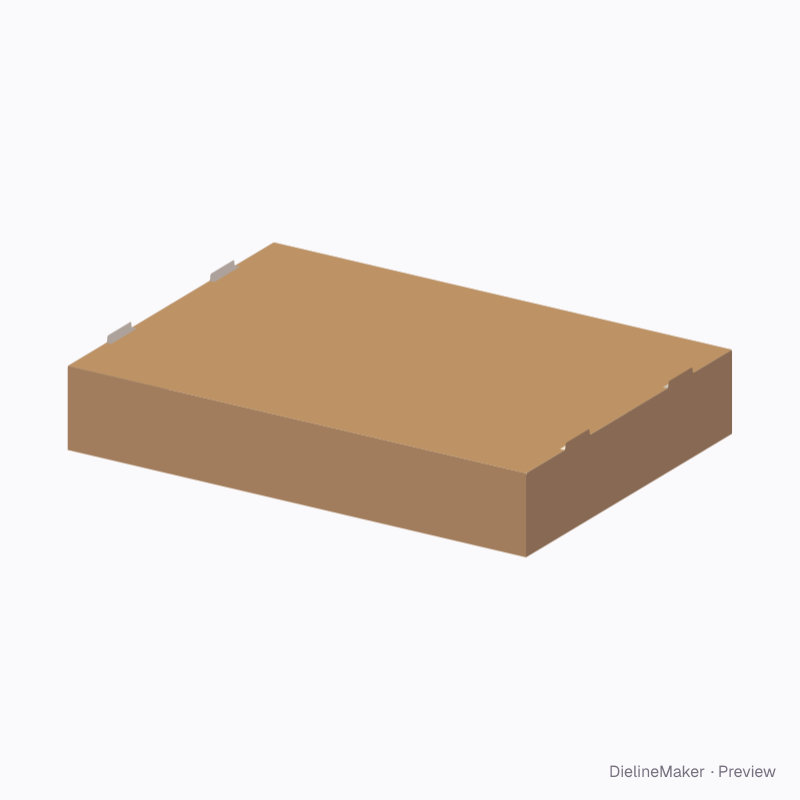

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0464Shipping
Meeting-cover tray with upright end locks dieline
Construction-specific hinged and meeting covers with retained end flaps, return walls and integral locking features. A ready-sized preset of the meeting-cover locking box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 50 mm
Outside309.6 × 223.2 × 53.2 mm
Flat blank419.2 × 549.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0464
- Inside size
- Length 300 · Width 220 · Height 50 mm
- Size range
- Length 160–900 · Width 60–650 · Height 25–300 mm
- Manufacturing
- 308 × 221.6 × 51.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.193 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0464 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 308 × 221.6 | – × W + T |
| n | 308 × 51.6 | – × H + T |
| n cover | 308 × 112.4 | – |
| s | 308 × 51.6 | – × H + T |
| s cover | 308 × 112.4 | – |
| e | 55.6 × 221.6 | – × W + T |
| w | 55.6 × 221.6 | – × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Construction2 options
The meeting-cover locking box family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this meeting-cover tray with upright end locks yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
