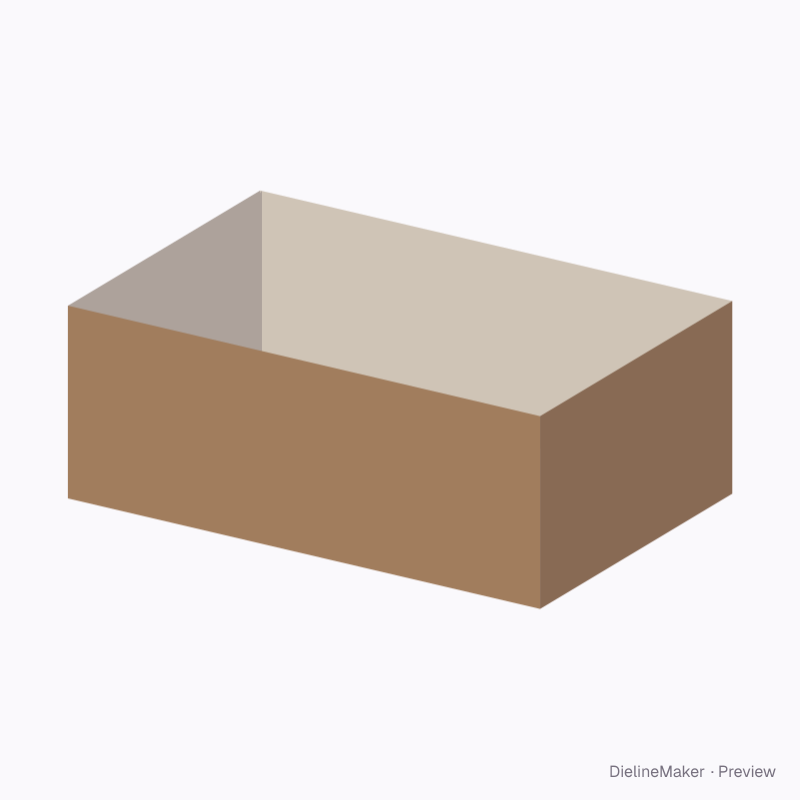

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0501Shipping
Vertical open sleeve dieline
Source-specific sleeve and rigid-box constructions with separate printable blanks, specified opening directions and board allowances. A ready-sized preset of the sleeve by opening direction — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 260 × 150 mm
Outside403.2 × 263.2 × 150 mm
Flat blank150 × 1351.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0501
- Inside size
- Length 400 · Width 260 · Height 150 mm
- Size range
- Length 120–1000 · Width 80–700 · Height 40–500 mm
- Manufacturing
- 401.6 × 261.6 × 150 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.203 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

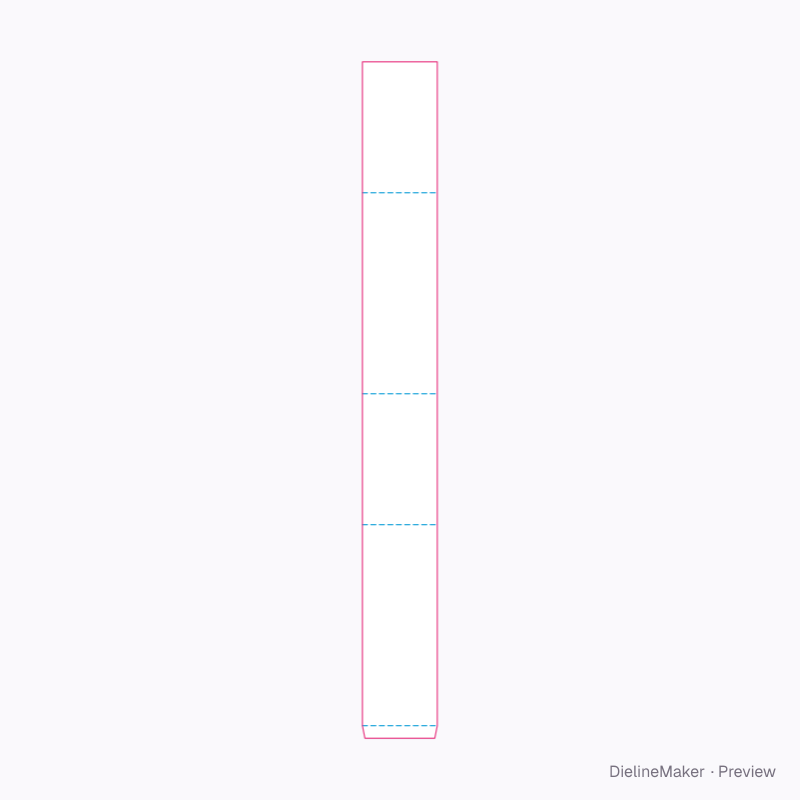

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0501 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150 × 401.6 | H × L + T |
| Left | 150 × 261.6 | H × W + T |
| Right | 150 × 261.6 | H × W + T |
| Back | 150 × 401.6 | H × L + T |
| seam glue | 150 × 25 | H × – |
