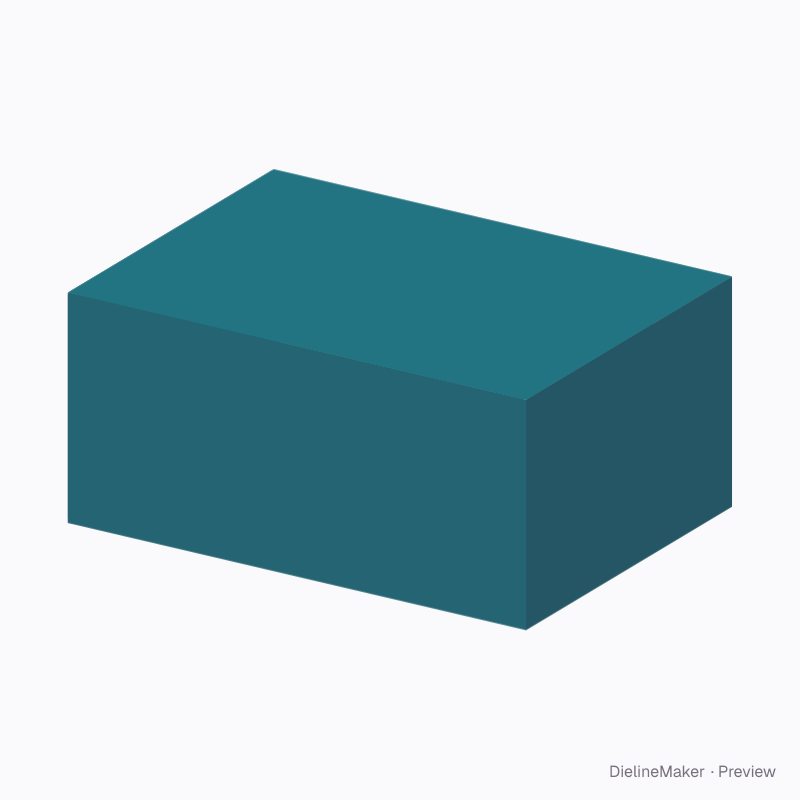

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0472Shipping
Archive box with two curved closing panels dieline
Construction-specific hinged and meeting covers with retained end flaps, return walls and integral locking features. A ready-sized preset of the archive box with rolled end walls — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 140 mm
Outside309.6 × 223.2 × 143.2 mm
Flat blank751.2 × 1006.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0472
- Inside size
- Length 300 · Width 220 · Height 140 mm
- Size range
- Length 160–900 · Width 60–650 · Height 25–300 mm
- Manufacturing
- 308 × 221.6 × 141.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.577 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0472 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 308 × 221.6 | – × W + T |
| front | 308 × 141.6 | – × H + T |
| back | 308 × 141.6 | – × H + T |
| lid | 308 × 221.6 | – × W + T |
| closing | 304.8 × 140 | – × H |
| closing start wing | 63.1 × 136.8 | – × H − 2T |
| closing end wing | 63.1 × 136.8 | – × H − 2T |
| front cover | 304.8 × 140 | – × H |
| front cover start wing | 63.1 × 136.8 | – × H − 2T |
| front cover end wing | 63.1 × 136.8 | – × H − 2T |
| Rear-wall end panel ×2 | 221.6 × 141.6 | W + T × H + T |
| end start anchor | 218.4 × 127.4 | W − T × – |
| end start roll | 218.4 × 3.2 | W − T × – |
| end start inner | 218.4 × 143.2 | W − T × H + 2T |
| Front-wall flap trapped inside side return ×2 | 212.7 × 138.4 | – × H − T |
| end end anchor | 218.4 × 127.4 | W − T × – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction4 options
- Closing flap depthmm
