FEFCO 0485Trays & lids
Sloping display box with fold-back cover dieline
A low-front display tray with sloping return walls and a divided cover. Perforated lid skirts release for manual fold-back display conversion. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 240 × 55 mm
Outside332.8 × 243.2 × 58.2 mm
Flat blank554.6 × 637.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0485
- Inside size
- Length 320 · Width 240 · Height 55 mm
- Size range
- Length 120–900 · Width 100–650 · Height 20–180 mm
- Manufacturing
- 331.2 × 241.6 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.273 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

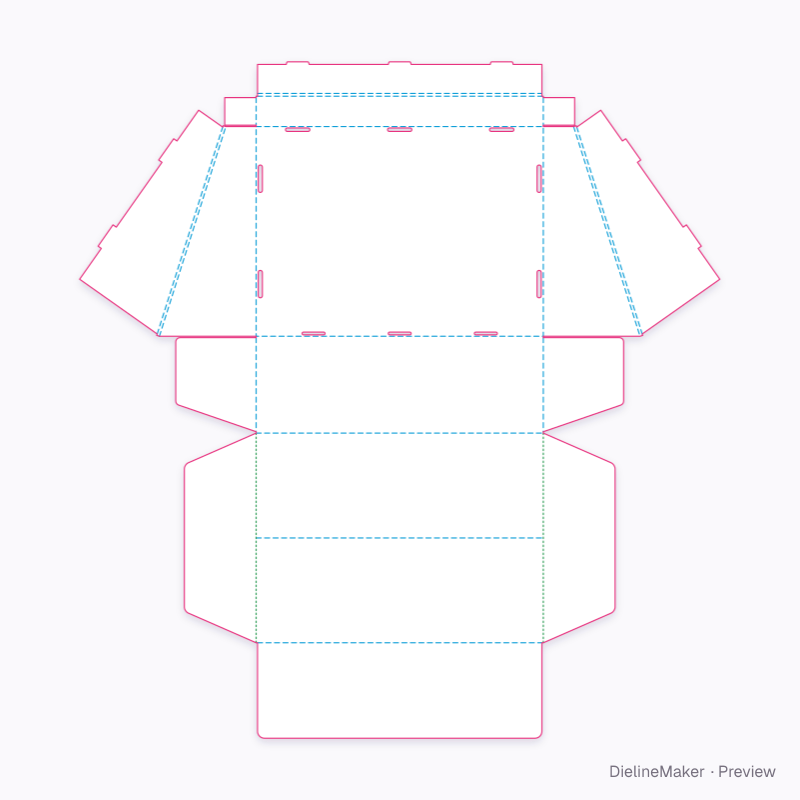

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0485 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Display floor | 331.2 × 241.6 | – × W + T |
| Low front return | 331.2 × 19.3 | – |
| Low front return roll | 328 × 3.2 | – |
| Low front return (inside) | 328 × 20.6 | – |
| back | 331.2 × 56.6 | – × H + T |
| front start ear | 19.3 × 16 | – |
| back start ear | 48.1 × 53.4 | – × H − T |
| front end ear | 19.3 × 16 | – |
| back end ear | 48.1 × 53.4 | – × H − T |
| Sloping side wall ×2 | 56.6 × 241.6 | H + T × W + T |
| e roll | 3.2 × 244.5 | – |
| Sloping inner return with floor tongues ×2 | 54.1 × 244.5 | – |
| w roll | 3.2 × 244.5 | – |
| lid | 331.2 × 120.8 | – |
| lid foldback | 331.2 × 120.8 | – |
| lid closing | 328 × 55 | – × H |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Front wall heightmm
