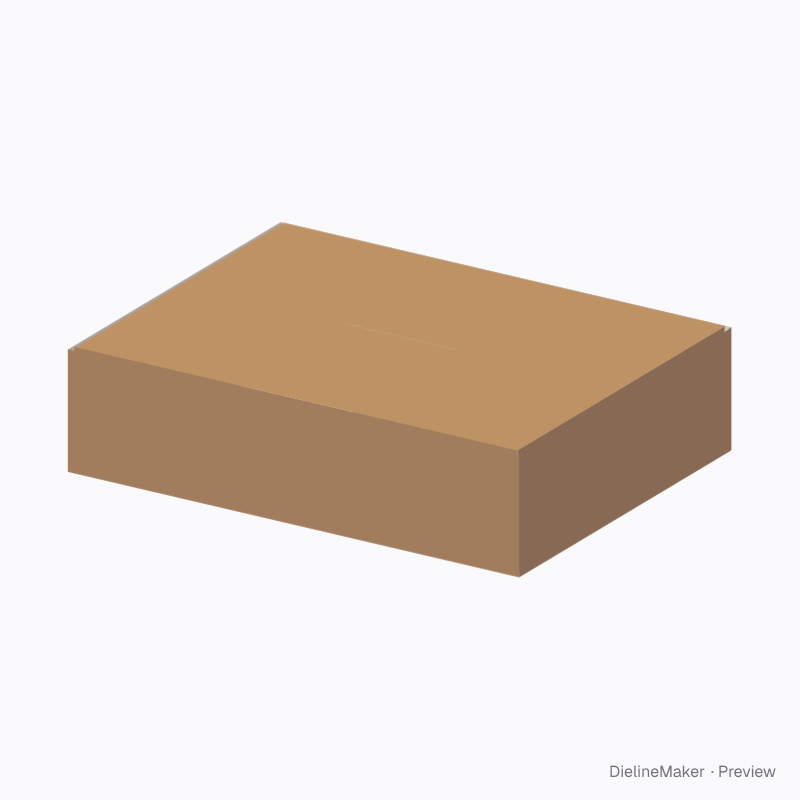

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0319Shipping
Nested half-slotted telescope dieline
Paired trays and capped sleeves with source-specific corner joints, wall returns and locking closures. A ready-sized preset of the standard telescope constructions — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside410.4 × 310.4 × 108 mm
Flat blank1453.6 × 256 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0319
- Inside size
- Inside length 400 · Inside width 300 · Inside height 100 mm
- Size range
- Inside length 160–1000 · Inside width 120–800 · Inside height 25–240 mm
- Manufacturing
- 401.6 × 301.6 × 101.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — outer, inner
- Board area
- 0.722 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0319 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Frontouter | 408.8 × 101.6 | L + T × H + T |
| Left sideouter | 308.8 × 101.6 | W + T × H + T |
| Backouter | 408.8 × 101.6 | L + T × H + T |
| Right sideouter | 307.2 × 101.6 | W × H + T |
| Glue flapouter | 20 × 101.6 | – × H + T |
| Bottom outer flapouter | 407.2 × 154.4 | – |
| Bottom inner flap ×2outer | 305.6 × 154.4 | – |
| Bottom outer flapouter | 405.6 × 154.4 | – |
| Frontinner | 401.6 × 101.6 | L + T × H + 2T |
| Left sideinner | 301.6 × 101.6 | W + T × H + 2T |
| Backinner | 401.6 × 101.6 | L + T × H + 2T |
| Right sideinner | 300 × 101.6 | W × H + 2T |
| Glue flapinner | 20 × 101.6 | – × H + T |
| Top outer flapinner | 400 × 150.8 | L × – |
| Top inner flap ×2inner | 298.4 × 150.8 | W − T × – |
| Top outer flapinner | 398.4 × 150.8 | L − T × – |
