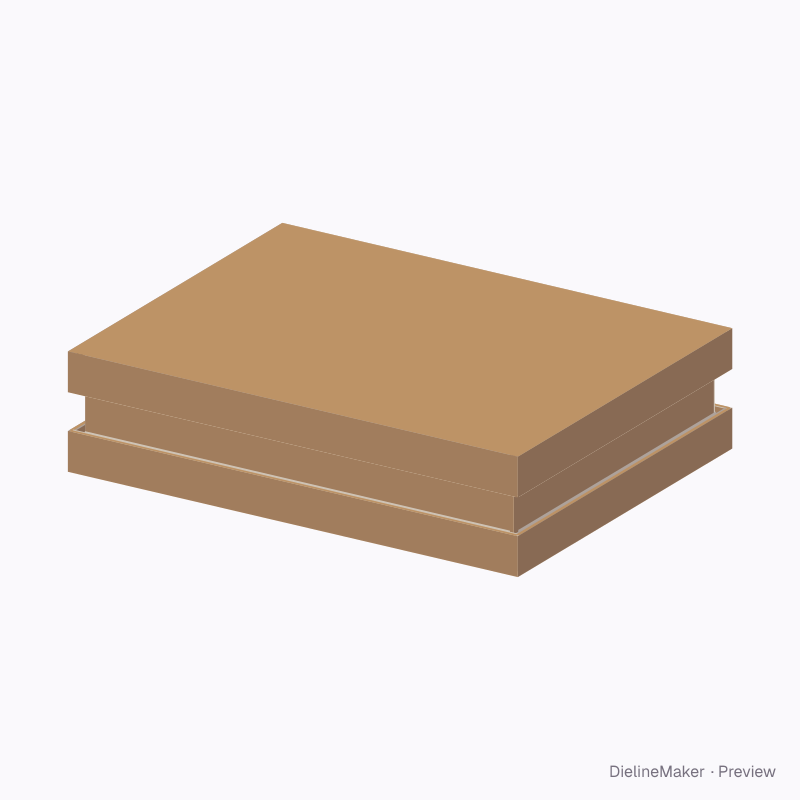

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0325Shipping
Flanged sleeve with two rolled caps dieline
Paired trays and capped sleeves with source-specific corner joints, wall returns and locking closures. A ready-sized preset of the standard telescope constructions — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside423.2 × 323.2 × 104.8 mm
Flat blank1434.8 × 173.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0325
- Inside size
- Inside length 400 · Inside width 300 · Inside height 100 mm
- Size range
- Inside length 160–1000 · Inside width 120–800 · Inside height 25–240 mm
- Manufacturing
- 401.6 × 301.6 × 100 mm score to score · inside vs outside sizes
- Parts
- 3 parts — lid, body, bottom cap
- Board area
- 0.725 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0325 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pose riglid | 100 × 32.5 | – |
| Floorlid | 100 × 289.1 | – |
| n walllid | 421.6 × 35 | – |
| n wall rolllid | 418.4 × 3.2 | – |
| n wall (inside)lid | 418.4 × 32.4 | – |
| e walllid | 35 × 321.6 | – |
| e wall rolllid | 3.2 × 318.4 | – |
| e wall (inside)lid | 32.4 × 318.4 | – |
| s walllid | 421.6 × 35 | – |
| s wall rolllid | 418.4 × 3.2 | – |
| s wall (inside)lid | 418.4 × 32.4 | – |
| w walllid | 35 × 321.6 | – |
| w wall rolllid | 3.2 × 318.4 | – |
| w wall (inside)lid | 32.4 × 318.4 | – |
| Frontbody | 401.6 × 100 | L + T × H |
| Left sidebody | 301.6 × 100 | W + T × H |
32 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
