FEFCO 0331Shipping
Friction rolled-wall telescope dieline
Paired trays and capped sleeves with source-specific corner joints, wall returns and locking closures. A ready-sized preset of the standard telescope constructions — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside416.8 × 320 × 103.2 mm
Flat blank601.6 × 709.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0331
- Inside size
- Inside length 400 · Inside width 300 · Inside height 100 mm
- Size range
- Inside length 160–1000 · Inside width 120–800 · Inside height 25–240 mm
- Manufacturing
- 401.6 × 308 × 100 mm score to score · inside vs outside sizes
- Parts
- 2 parts — lid, base
- Board area
- 0.766 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

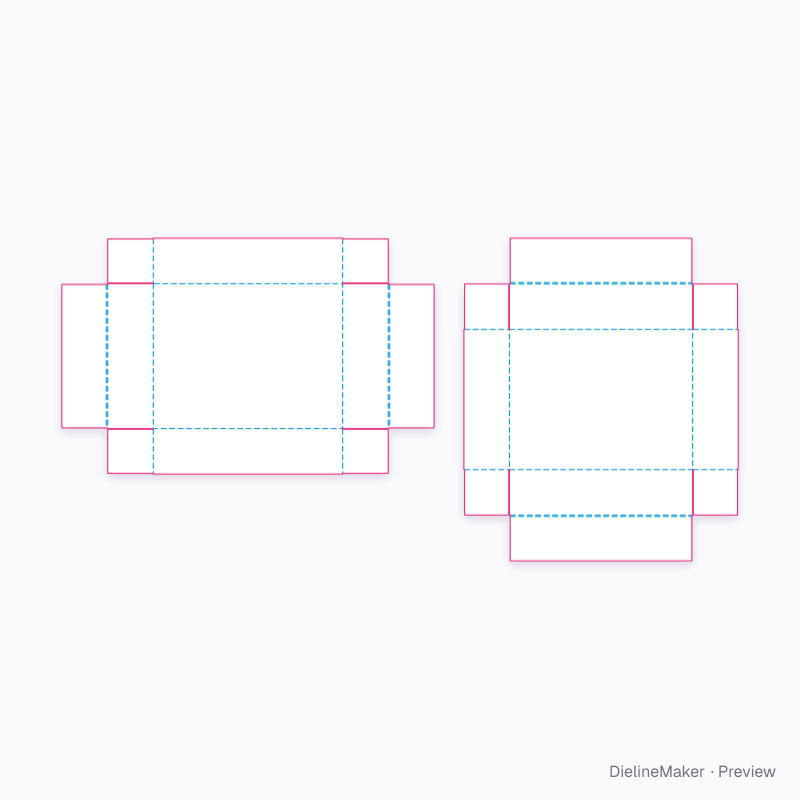

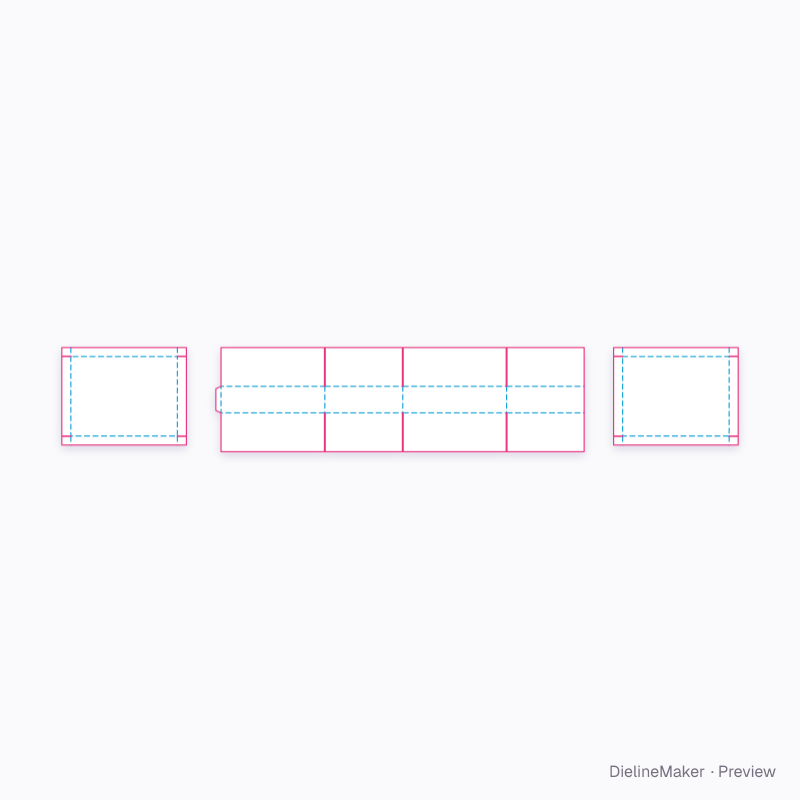

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0331 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pose riglid | 100 × 65 | – |
| Floorlid | 100 × 253.4 | – |
| nlid | 415.2 × 100 | – |
| e walllid | 100 × 318.4 | – |
| e wall rolllid | 3.2 × 315.2 | – |
| e wall (inside)lid | 97.4 × 315.2 | – |
| slid | 415.2 × 100 | – |
| w walllid | 100 × 318.4 | – |
| w wall rolllid | 3.2 × 315.2 | – |
| w wall (inside)lid | 97.4 × 315.2 | – |
| Trapped corner flap ×4lid | 100 × 96.8 | – |
| Floorbase | 401.6 × 308 | L + T × – |
| n wallbase | 401.6 × 100 | L + T × H |
| n wall rollbase | 398.4 × 3.2 | L − T × – |
| n wall (inside)base | 398.4 × 97.4 | L − T × – |
| ebase | 100 × 308 | H × – |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction14 options
- Cover depthmm
- Cover clearance per sidemm
