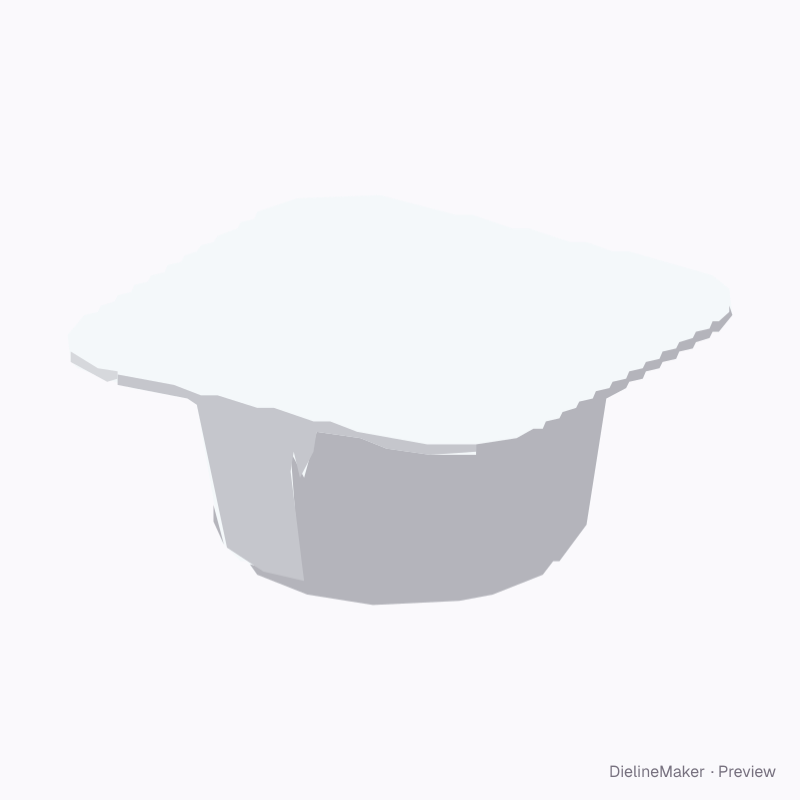

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FLANGECUP-01Labels
Flanged portion cup dieline
A round formed portion cup under a broad rounded-square (or round, square, oblong) flange, sealed by a printed peel lid. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside52 × 52 × 22 mm
Outside52 × 52 × 22 mm
Flat blank61.4 × 52 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FLANGECUP-01
- Inside size
- Flange length 52 · Flange width 52 · Cavity depth 22 mm
- Size range
- Flange length 25–160 · Flange width 25–160 · Cavity depth 8–100 mm
- Manufacturing
- 52 × 52 × 22 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.003 m² · about 180 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

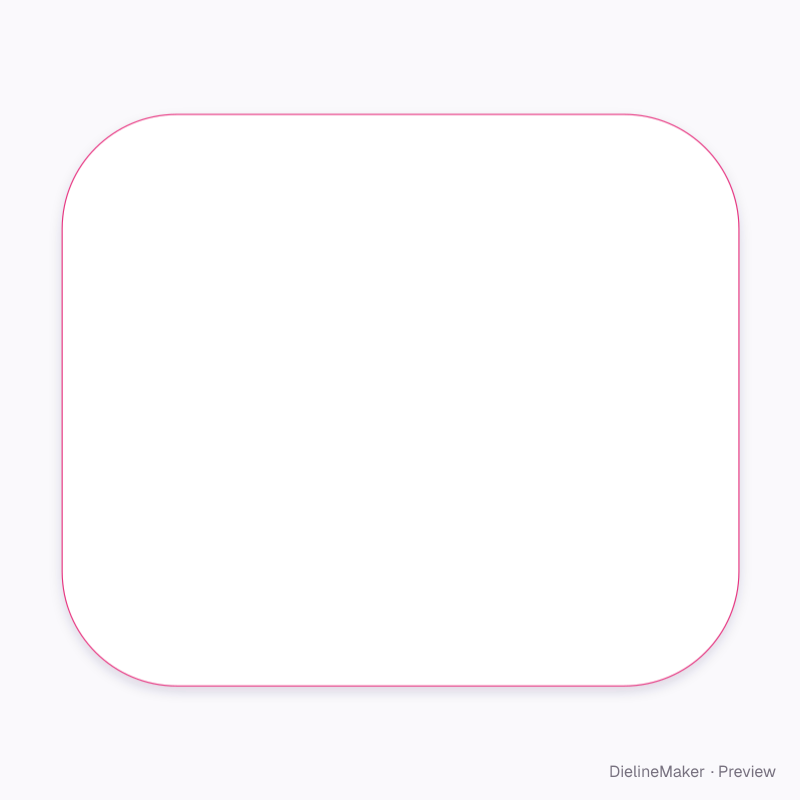

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Flange outline3 options
- Cavity diameter%
- Wall taper%
- Peel tabon / off
- Clear cupon / off
- Cup colour3 options

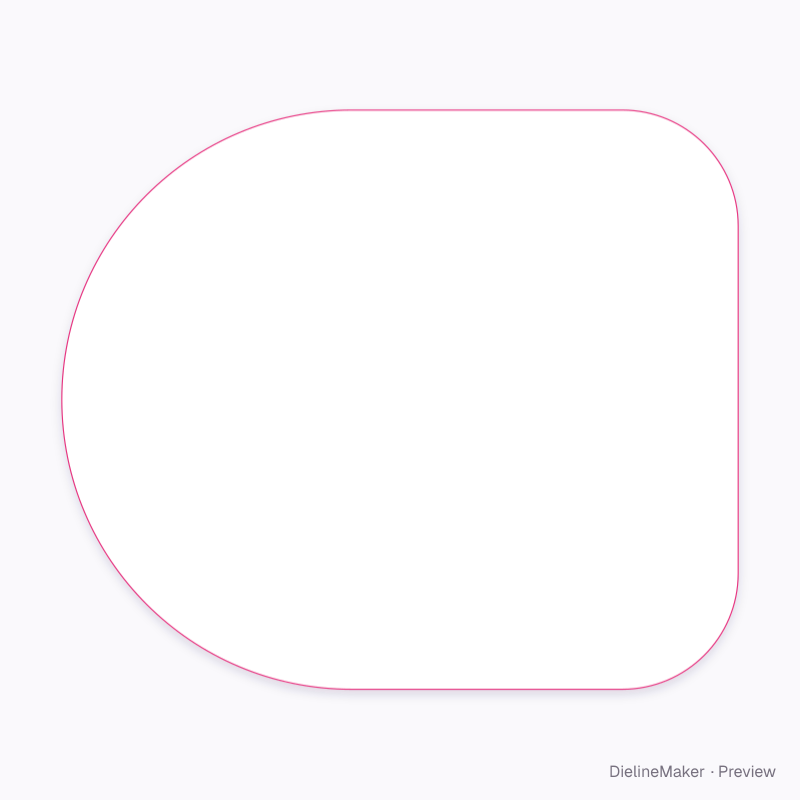

Ready-sized flanged portion cup presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset

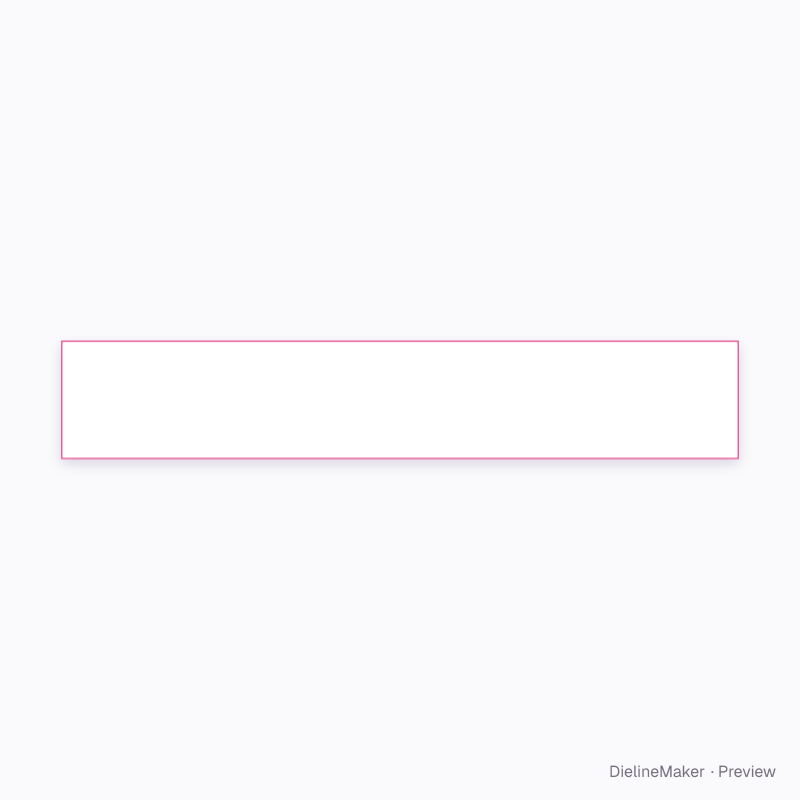

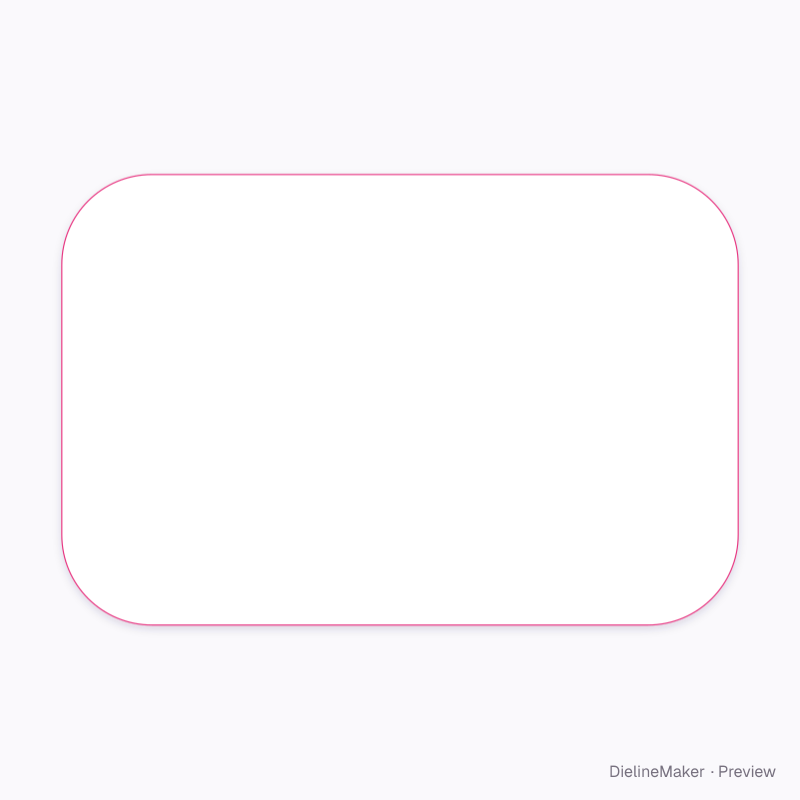

Similar structures
