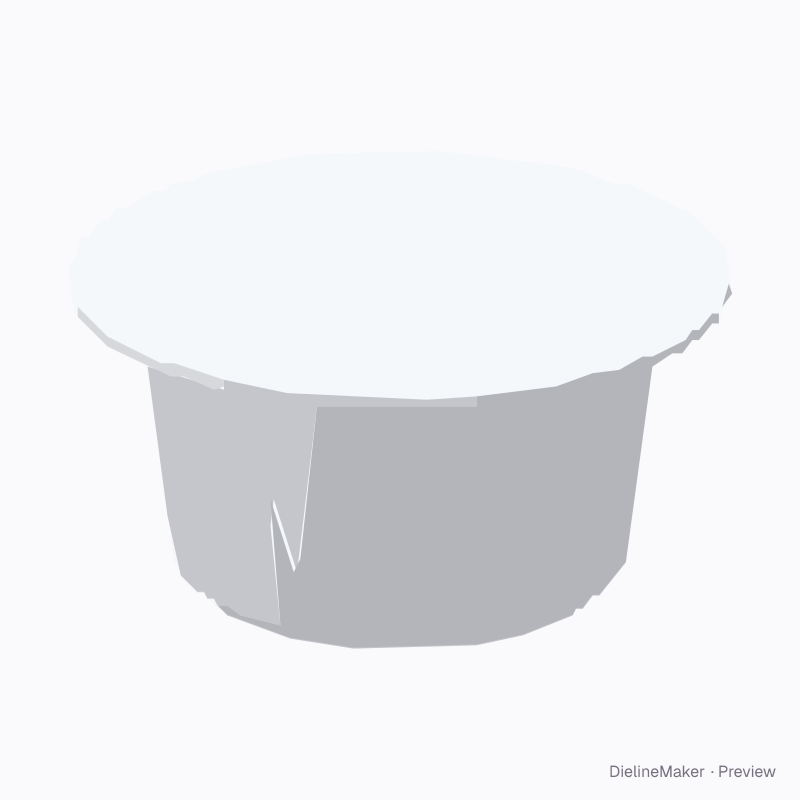

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FLANGECUP-01Labels
Round sealed portion cup dieline
A round formed portion cup under a broad rounded-square (or round, square, oblong) flange, sealed by a printed peel lid. A ready-sized preset of the flanged portion cup — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside60 × 60 × 28 mm
Outside60 × 60 × 28 mm
Flat blank70 × 60 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FLANGECUP-01
- Inside size
- Flange length 60 · Flange width 60 · Cavity depth 28 mm
- Size range
- Flange length 25–160 · Flange width 25–160 · Cavity depth 8–100 mm
- Manufacturing
- 60 × 60 × 28 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.004 m² · about 135 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Flange outline3 options
- Cavity diameter%
- Wall taper%
- Peel tabon / off
- Clear cupon / off
- Cup colour3 options
The flanged portion cup family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this round sealed portion cup yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
