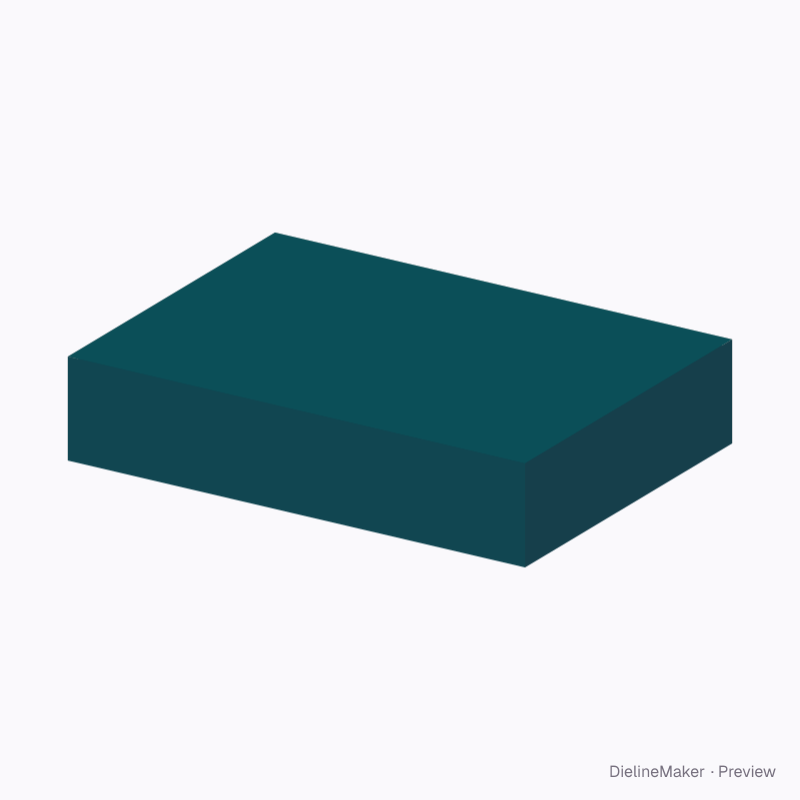

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0300Trays & lids
Tea assortment tray — Telescope box with flap corners dieline
Editable 260 × 180 × 55 mm starting point using telescope box with flap corners. Adjust the dimensions to your product before prototyping. A ready-sized preset of the telescope box with flap corners — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 55 mm
Outside269.4 × 195.8 × 58.2 mm
Flat blank379.4 × 305.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0300
- Inside size
- Length 260 · Width 180 · Height 55 mm
- Size range
- Length 100–1000 · Width 80–800 · Height 30–600 mm
- Manufacturing
- 261.6 × 184.8 × 55.8 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Lid, Base
- Board area
- 0.225 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0300 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pose rigLid | 100 × 42.9 | – |
| Lid topLid | 100 × 151.3 | – |
| BackLid | 267.8 × 55.8 | – × H + T/2 |
| FrontLid | 267.8 × 55.8 | – × H + T/2 |
| Left endLid | 55.8 × 194.2 | H + T/2 × – |
| Right endLid | 55.8 × 194.2 | H + T/2 × – |
| Corner flap ×4Lid | 54.2 × 55.8 | H − T/2 × H + T/2 |
| BaseBase | 261.6 × 184.8 | L + T × – |
| FrontBase | 261.6 × 55.8 | L + T × H + T/2 |
| BackBase | 261.6 × 55.8 | L + T × H + T/2 |
| Left endBase | 55.8 × 184.8 | H + T/2 × – |
| Right endBase | 55.8 × 184.8 | H + T/2 × – |
| Corner flap ×4Base | 54.2 × 55.8 | H − T/2 × H + T/2 |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid corner flaps2 options
- Lid depthmm
The telescope box with flap corners family
The same structure with sizes, boards and options set for a use.

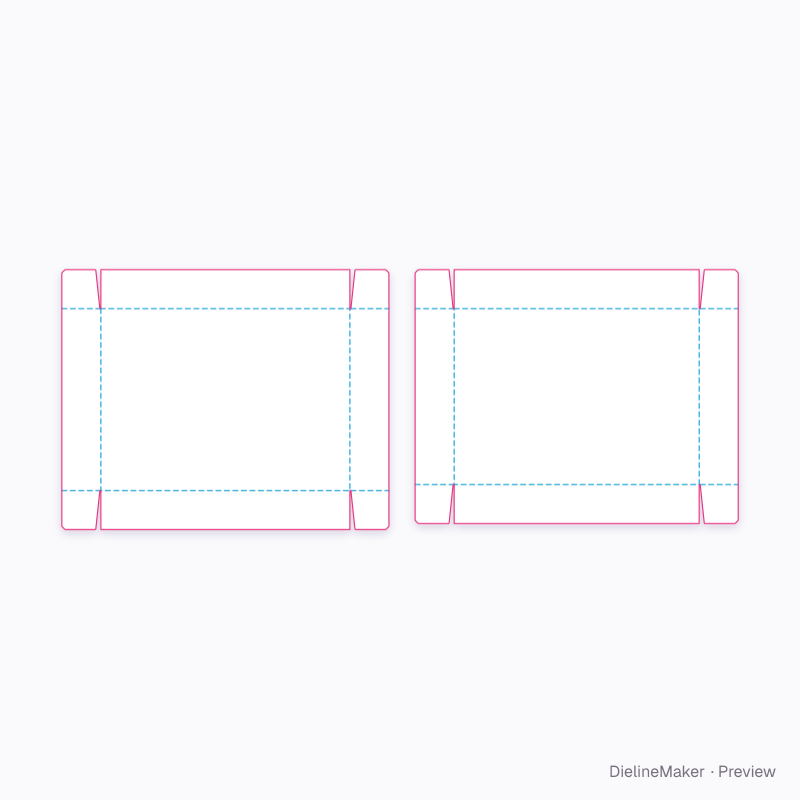

Preset

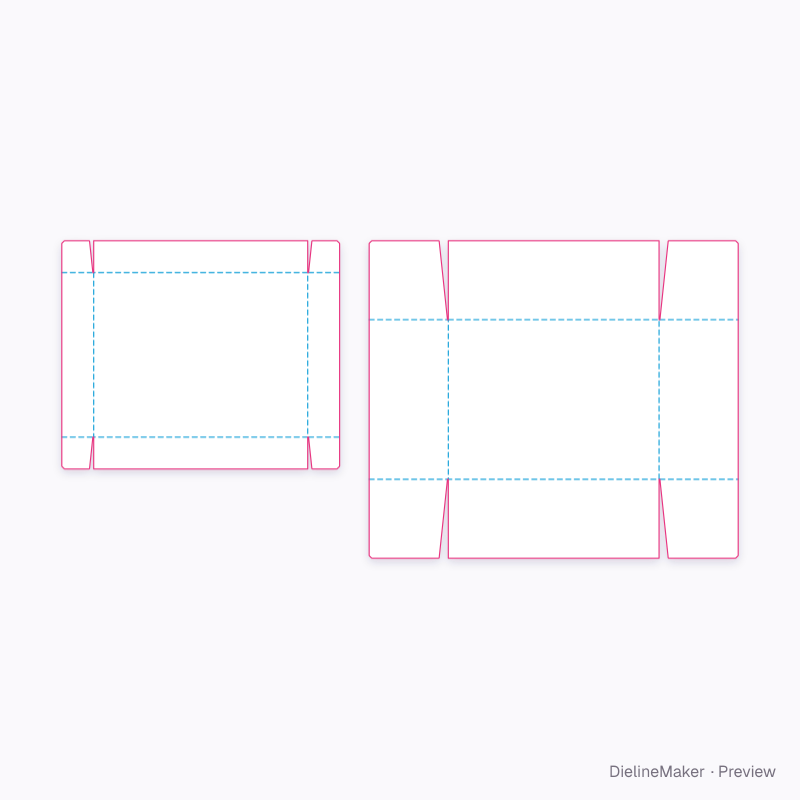

Preset

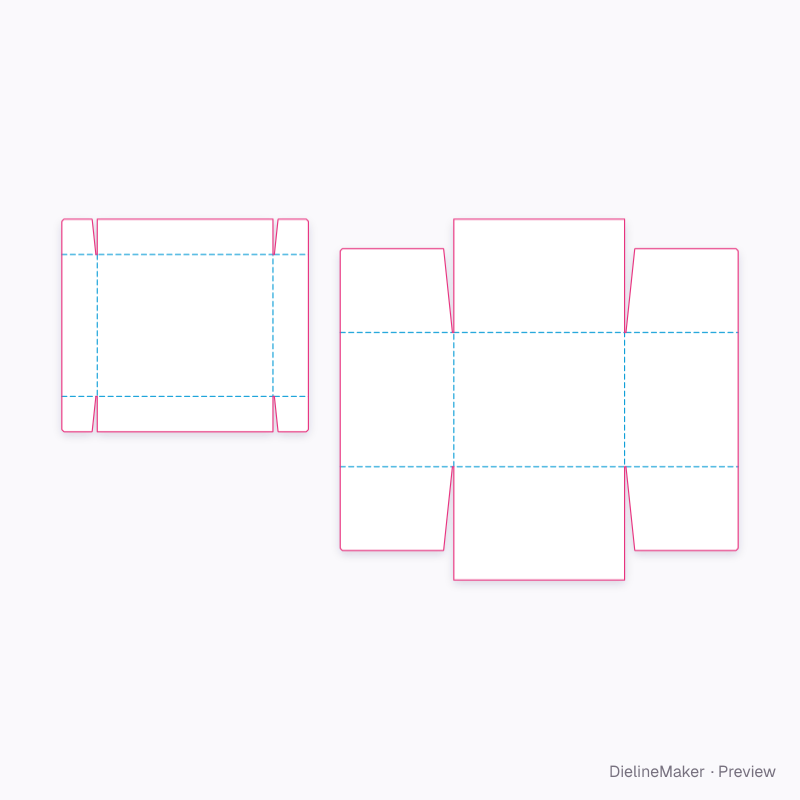

Preset

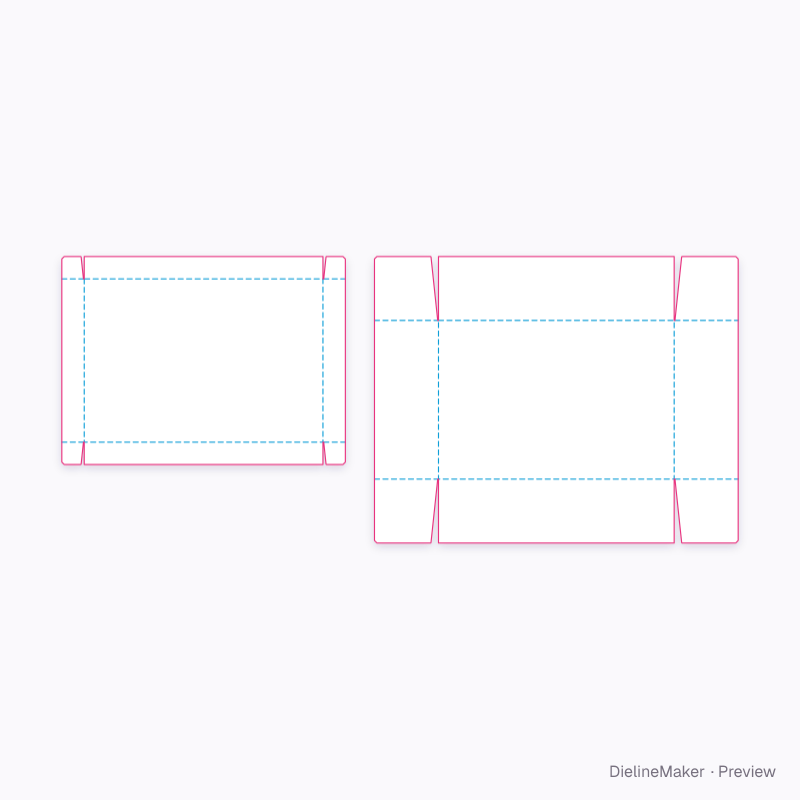

Preset

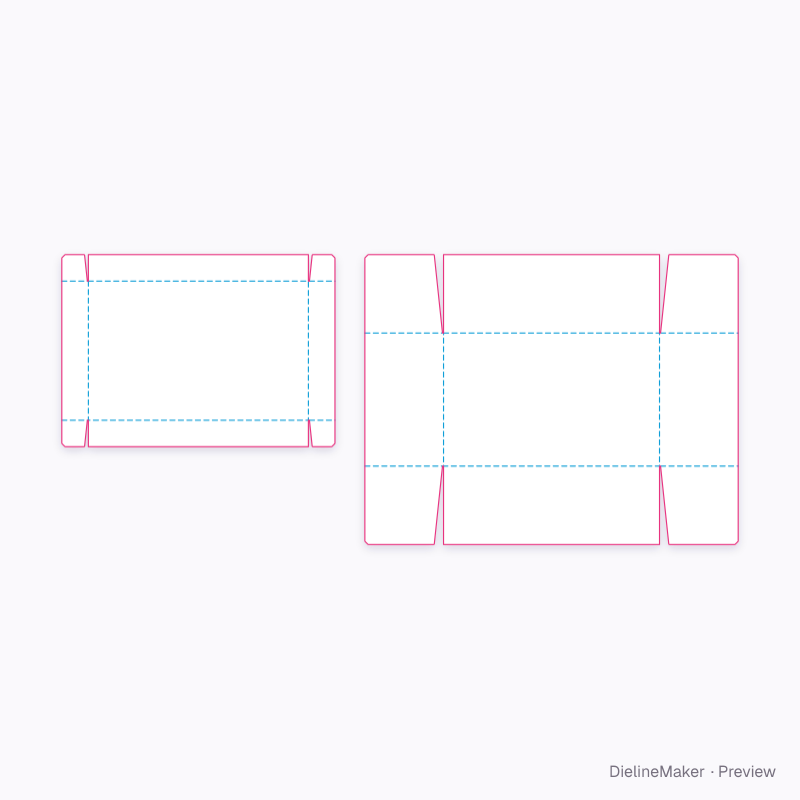

Preset
Preset
Preset
Preset
Preset
Preset
Preset

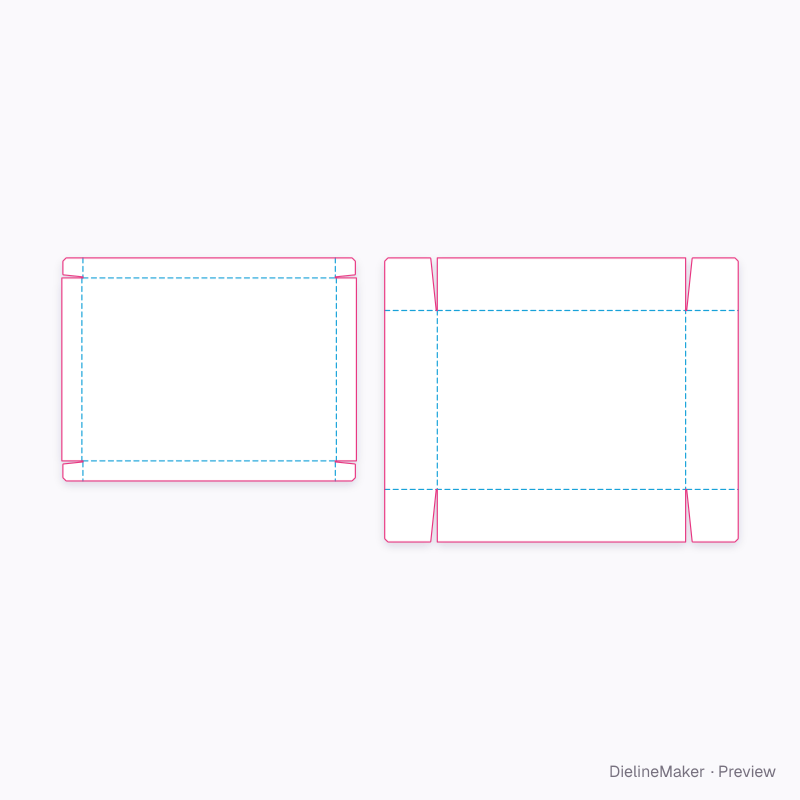

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tea assortment tray — telescope box with flap corners yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
