FEFCO 0300Trays & lids

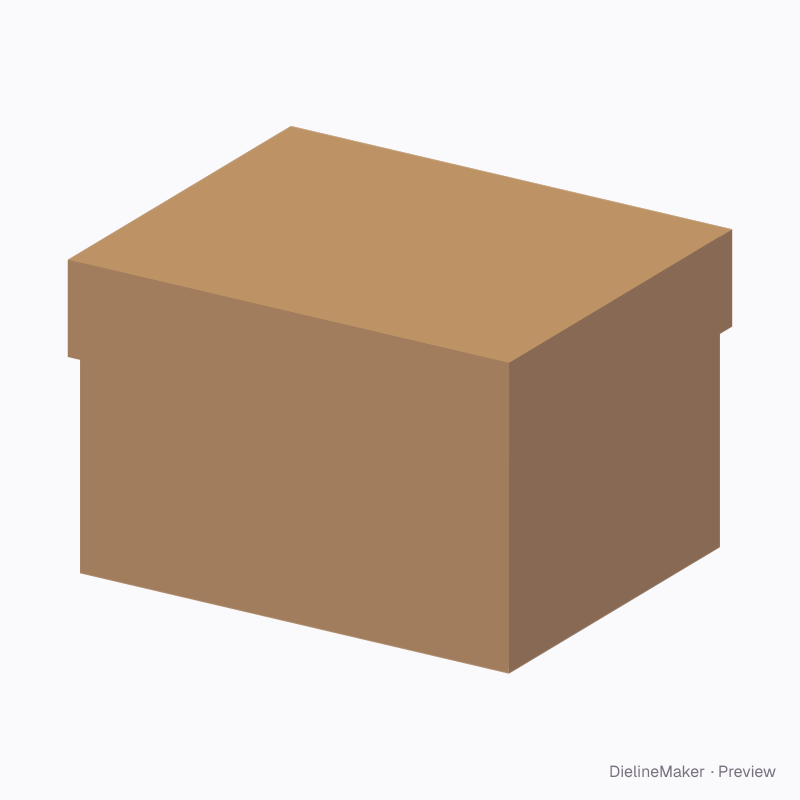

Lidded archive box 390×300×260 dieline
B-flute storage box with an 80 mm lid that lifts off for access. A ready-sized preset of the telescope box with flap corners — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside390 × 300 × 260 mm
Outside407.8 × 330.6 × 266.4 mm
Flat blank916.4 × 832.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0300
- Inside size
- Length 390 · Width 300 · Height 260 mm
- Size range
- Length 100–1000 · Width 80–800 · Height 30–600 mm
- Manufacturing
- 393.2 × 309.6 × 261.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Lid, Base
- Board area
- 0.957 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0300 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Pose rigLid | 100 × 55.8 | – |
| Lid topLid | 100 × 271.6 | – |
| BackLid | 404.6 × 81.6 | – |
| FrontLid | 404.6 × 81.6 | – |
| Left endLid | 81.6 × 327.4 | – |
| Right endLid | 81.6 × 327.4 | – |
| Corner flap ×4Lid | 78.4 × 81.6 | – |
| BaseBase | 393.2 × 309.6 | L + T × – |
| FrontBase | 393.2 × 261.6 | L + T × H + T/2 |
| BackBase | 393.2 × 261.6 | L + T × H + T/2 |
| Left endBase | 261.6 × 309.6 | H + T/2 × – |
| Right endBase | 261.6 × 309.6 | H + T/2 × – |
| Corner flap ×4Base | 258.4 × 193.4 | H − T/2 × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid corner flaps2 options
- Lid depthmm
The telescope box with flap corners family
