Stationery floor display — Floor display dieline
Editable 480 × 280 × 1550 mm starting point using floor display. Adjust the dimensions to your product before prototyping. A ready-sized preset of the floor display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside480 × 280 × 1550 mm
Outside486.4 × 283.2 × 1550 mm
Flat blank1125.6 × 1833.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 480 · Depth 280 · Height 1550 mm
- Size range
- Width 250–1000 · Depth 200–600 · Height 900–2000 mm
- Manufacturing
- 483.2 × 283.2 × 1550 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Body, Header, Plinth, Shelf 1, Shelf 2, Shelf 3, Shelf 4, Shelf 5
- Board area
- 3.404 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for

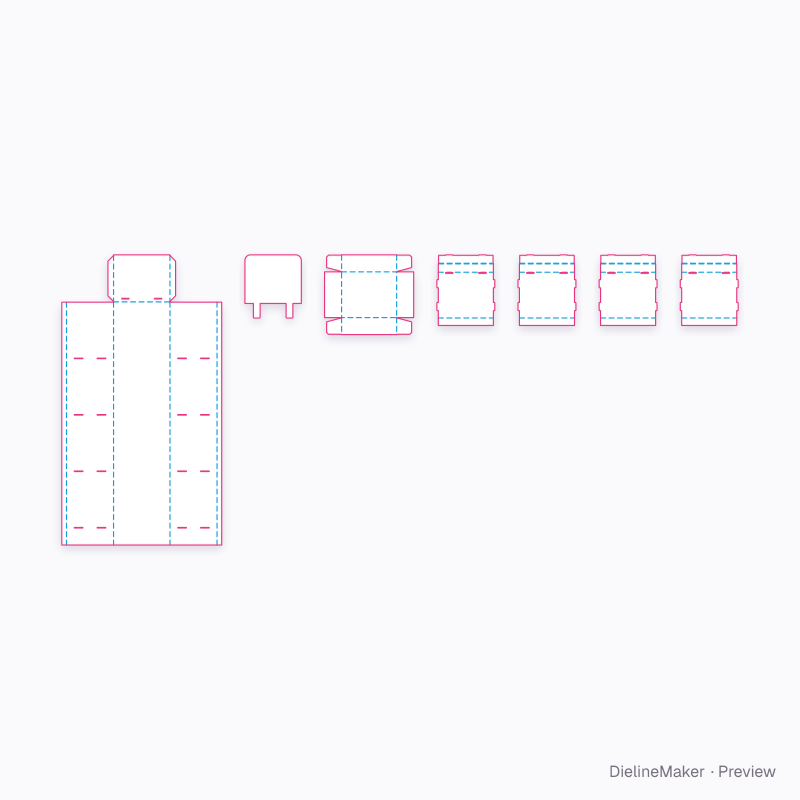

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackBody | 483.2 × 1550 | L + T × H |
| Right sideBody | 283.2 × 1546.8 | W + T × H − T |
| Left sideBody | 283.2 × 1546.8 | W + T × H − T |
| TopBody | 483.2 × 283.2 | L + T × W + T |
| Right returnBody | 38 × 1546.8 | – × H − T |
| Left returnBody | 38 × 1546.8 | – × H − T |
| Top flap ×2Body | 33.6 × 273.8 | – |
| HeaderHeader | 483.2 × 403 | L + T × header |
| Plinth topPlinth | 472.8 × 272.8 | – |
| Kick platePlinth | 472.8 × 109 | L − T − 2c × plinth |
| Plinth backPlinth | 472.8 × 109 | – |
| Plinth side ×2Plinth | 109 × 272.8 | – |
| Corner flap ×4Plinth | 80 × 102.6 | – |
| ShelfShelf 1 | 491.2 × 272.8 | L − T − 2c × shelf depth |
| Shelf lipShelf 1 | 472.8 × 58 | – |
| Shelf lip rollShelf 1 | 466.4 × 6.4 | – |
22 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Shelvescount
- Headermm
- Plinthmm
- Shelf lipmm
- Front returnsmm

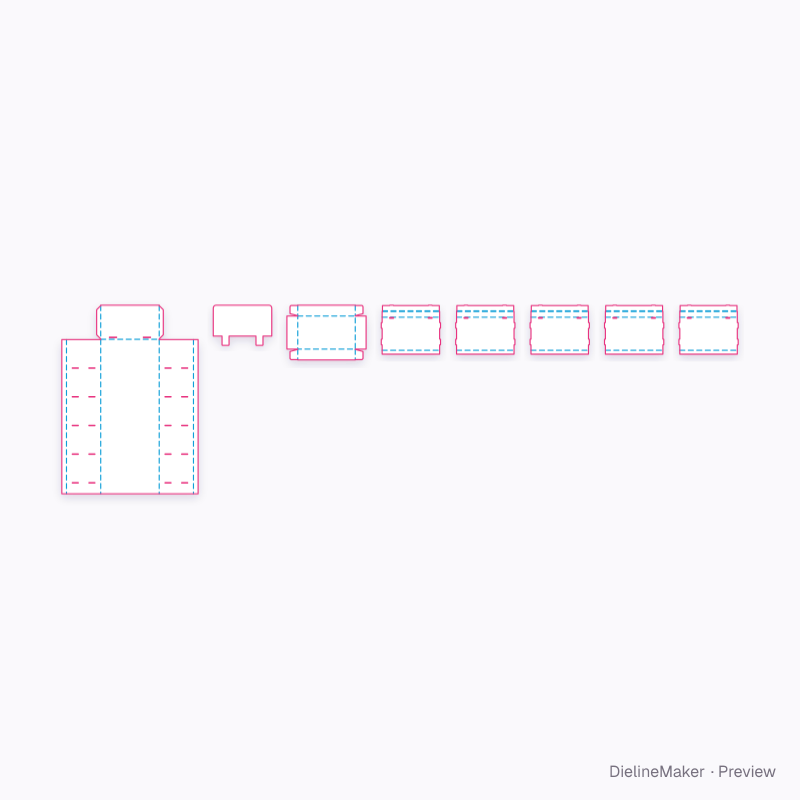

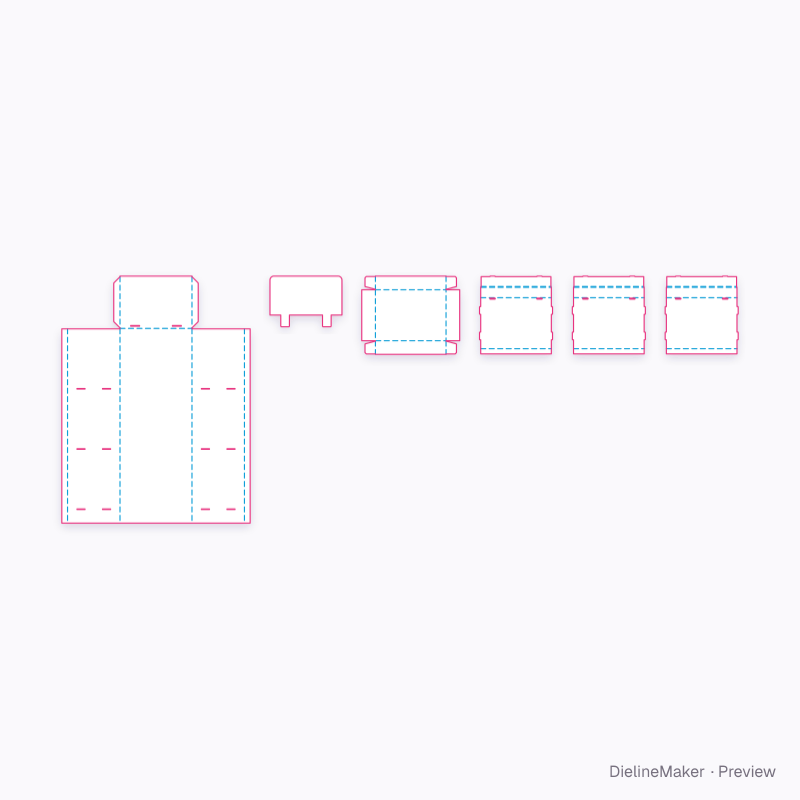

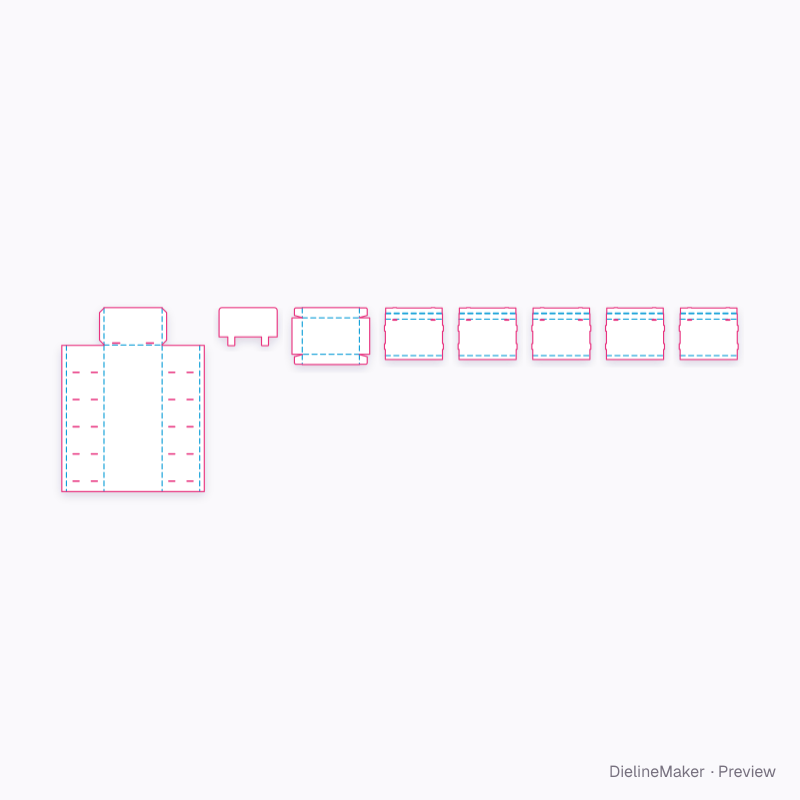

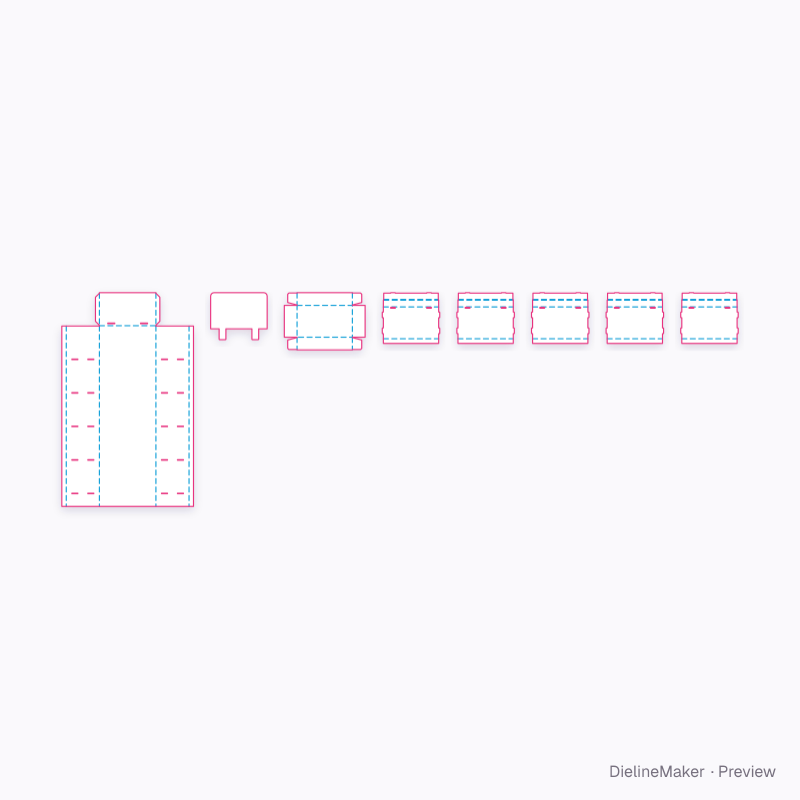

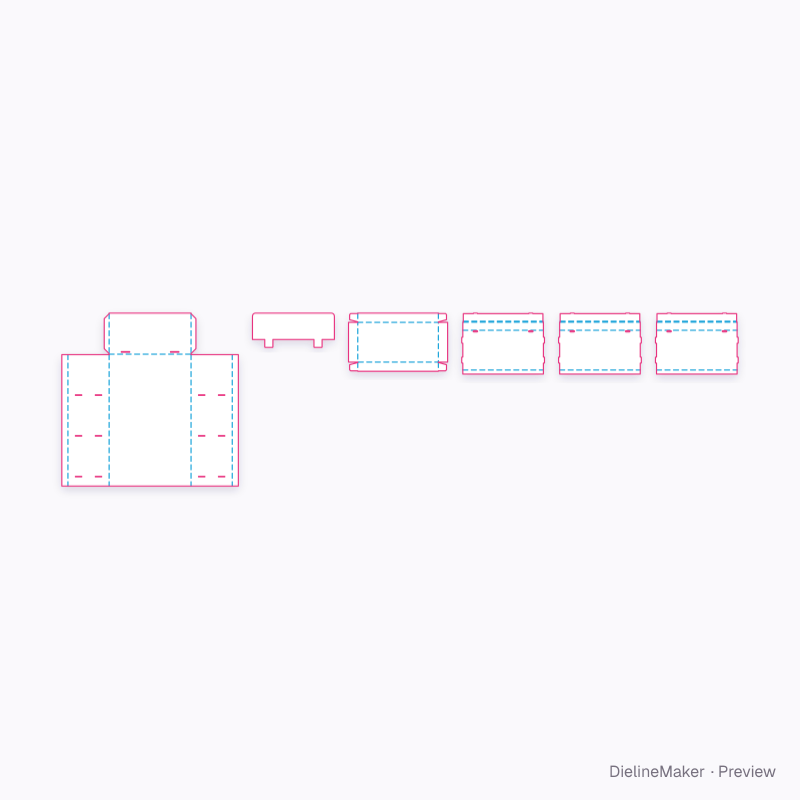

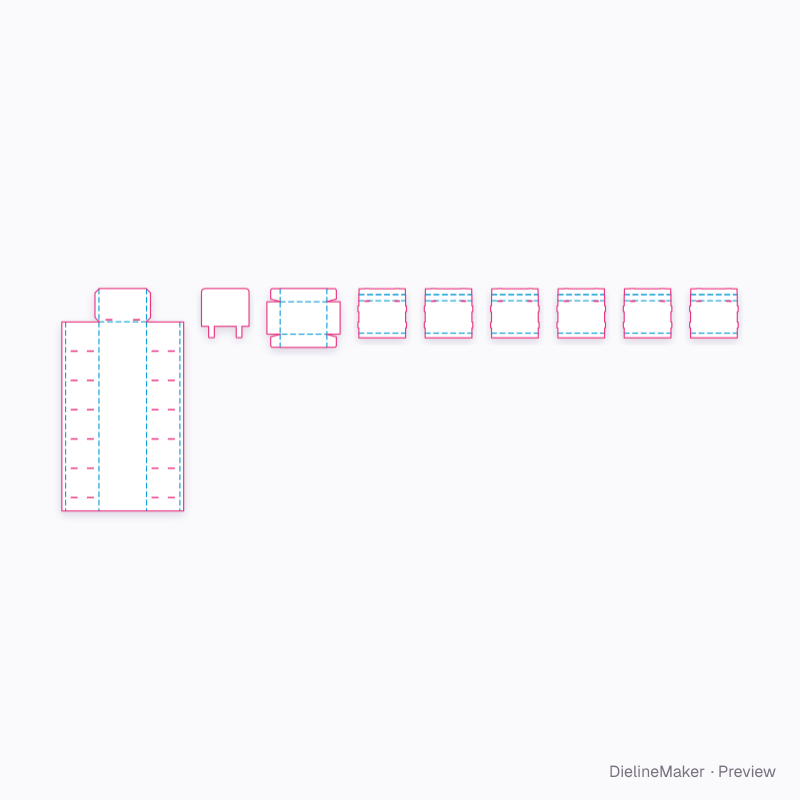

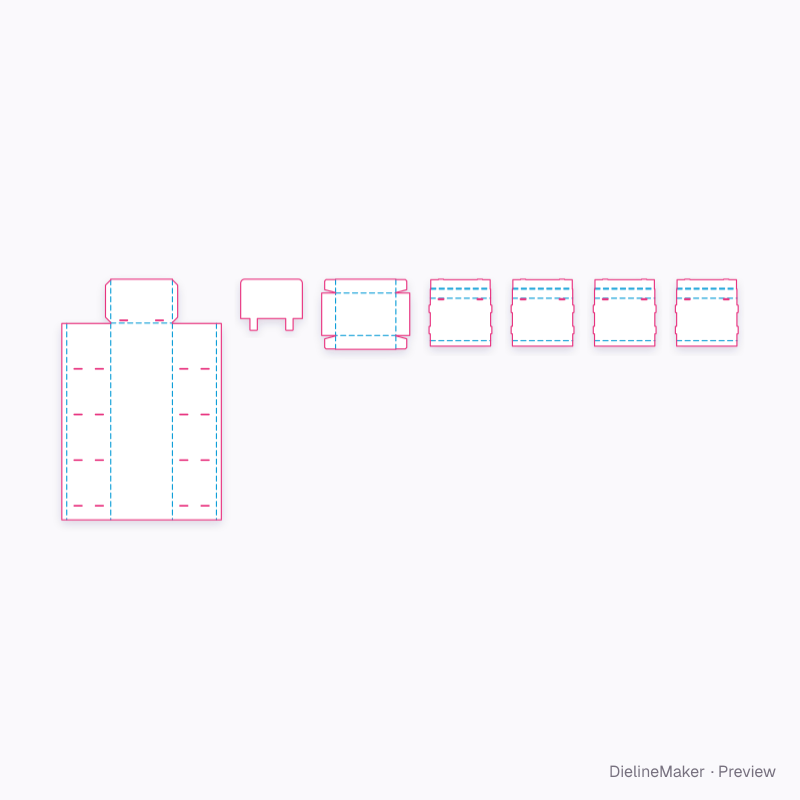

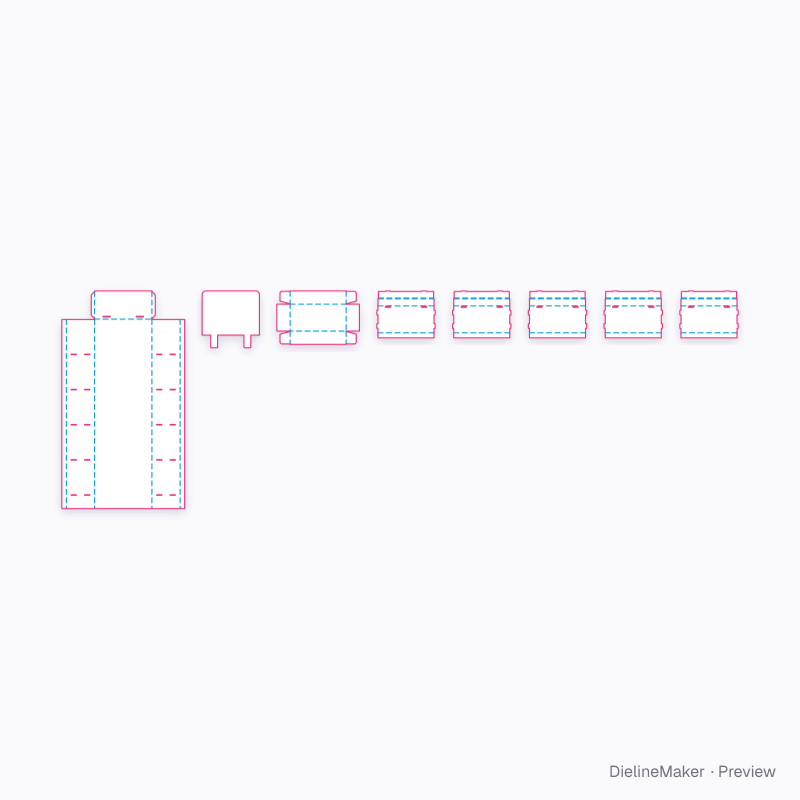

The floor display family
