Wellness floor display — Floor display dieline
Editable 420 × 300 × 1450 mm starting point using floor display. Adjust the dimensions to your product before prototyping. A ready-sized preset of the floor display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside420 × 300 × 1450 mm
Outside426.4 × 303.2 × 1450 mm
Flat blank1097.6 × 1753.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 420 · Depth 300 · Height 1450 mm
- Size range
- Width 250–1000 · Depth 200–600 · Height 900–2000 mm
- Manufacturing
- 423.2 × 303.2 × 1450 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Body, Header, Plinth, Shelf 1, Shelf 2, Shelf 3, Shelf 4
- Board area
- 2.941 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline

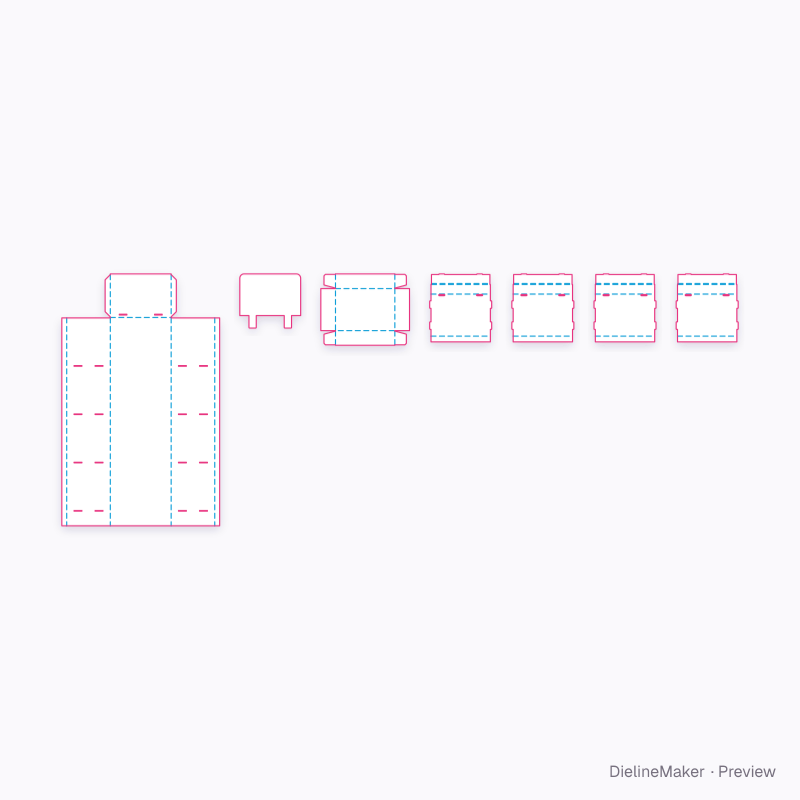

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackBody | 423.2 × 1450 | L + T × H |
| Right sideBody | 303.2 × 1446.8 | W + T × H − T |
| Left sideBody | 303.2 × 1446.8 | W + T × H − T |
| TopBody | 423.2 × 303.2 | L + T × W + T |
| Right returnBody | 34 × 1446.8 | – × H − T |
| Left returnBody | 34 × 1446.8 | – × H − T |
| Top flap ×2Body | 36 × 293.8 | – |
| HeaderHeader | 423.2 × 377 | L + T × header |
| Plinth topPlinth | 412.8 × 292.8 | – |
| Kick platePlinth | 412.8 × 102 | L − T − 2c × plinth |
| Plinth backPlinth | 412.8 × 102 | – |
| Plinth side ×2Plinth | 102 × 292.8 | – |
| Corner flap ×4Plinth | 80 × 95.6 | – |
| ShelfShelf 1 | 431.2 × 292.8 | L − T − 2c × shelf depth |
| Shelf lipShelf 1 | 412.8 × 67 | – |
| Shelf lip rollShelf 1 | 406.4 × 6.4 | – |
17 more panels are listed in the editor’s structure step.
