Parametric structureBags & pouches
Pillow bag (chips) dieline

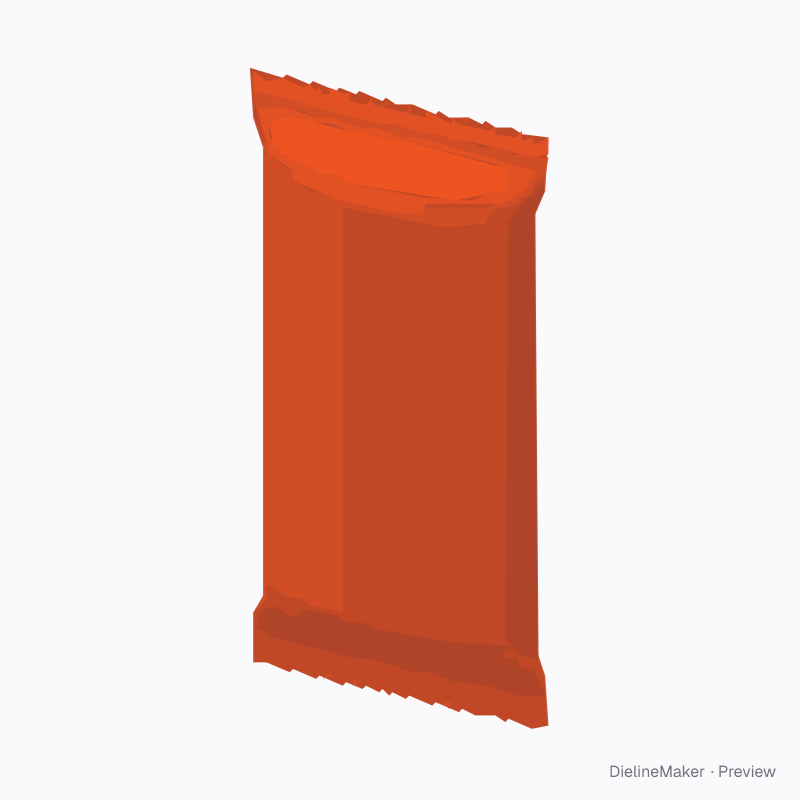

Vertical pillow bag for crisps and puffed snacks: fin seal on the back, crimped top and bottom. A ready-sized preset of the flow wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 150 × 55 mm
Outside230 × 150 × 55 mm
Flat blank366.5 × 310.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Product length 230 · Product width 150 · Product height 55 mm
- Size range
- Product length 30–400 · Product width 8–250 · Product height 3–150 mm
- Manufacturing
- 230 × 150 × 55 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.113 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
