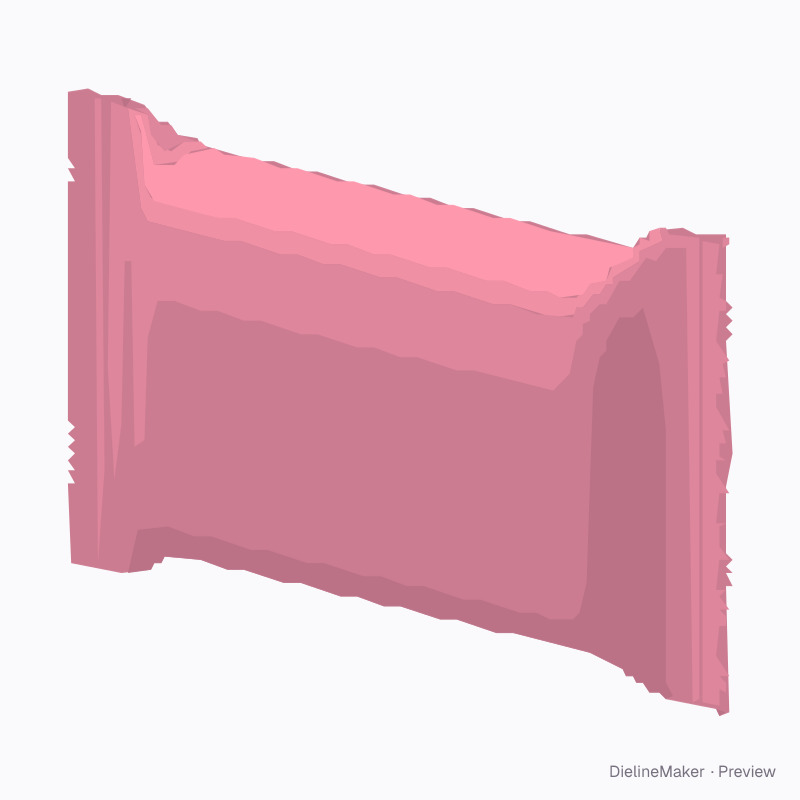

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Cookie-stack flow wrap dieline
110 × 75 × 35 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the flow wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 75 × 35 mm
Outside110 × 75 × 35 mm
Flat blank166.5 × 243 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Product length 110 · Product width 75 · Product height 35 mm
- Size range
- Product length 30–400 · Product width 8–250 · Product height 3–150 mm
- Manufacturing
- 110 × 75 × 35 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.040 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline

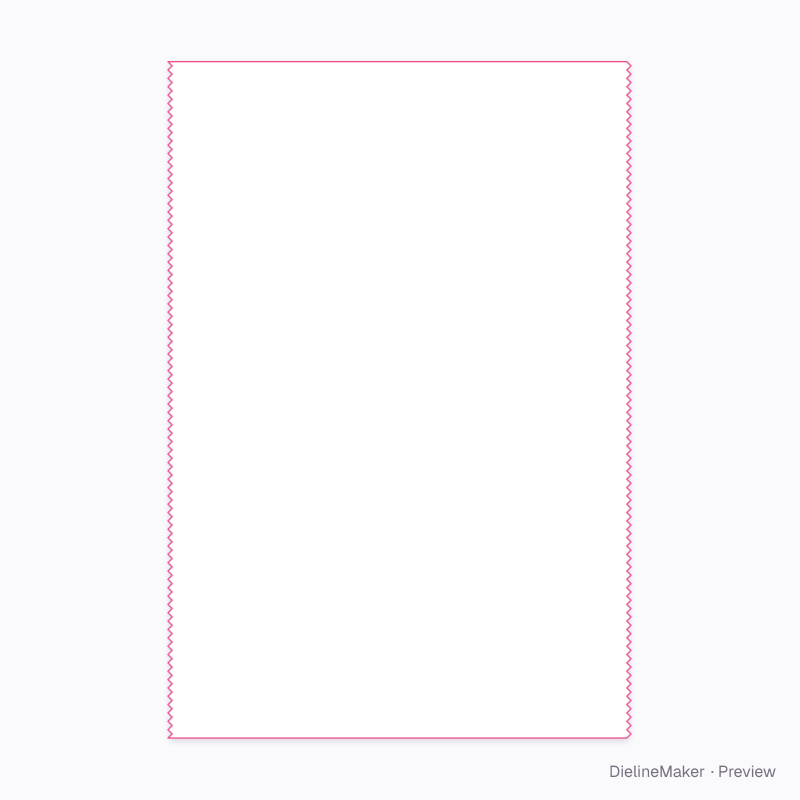

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Fin seal (inner) | 165 × 10 | – |
| Back (upper half) | 165 × 37.5 | – |
| Top | 165 × 36.5 | – |
| Front | 166.5 × 75 | – × W |
| Bottom | 165 × 36.5 | – |
| Back (lower half) | 165 × 37.5 | – |
| Fin seal (outer) | 165 × 10 | – |
