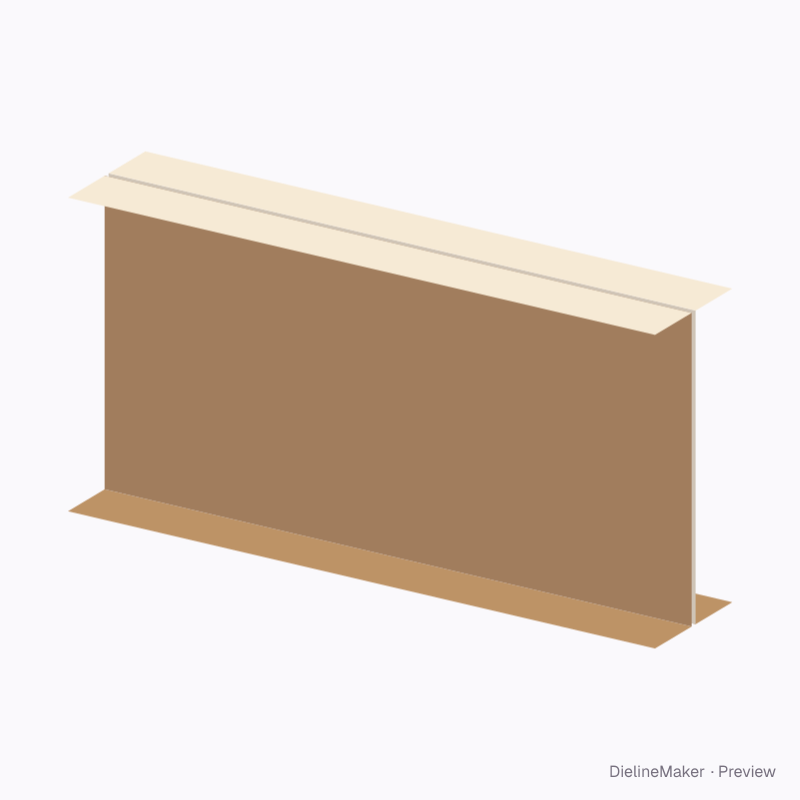

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAPPED-WEB-01Shipping
Capped-web divider 300×120×150 dieline
One connected blank with a doubled upright and independently sized upper and lower flanges. Dimensions describe the case inside envelope; make a sample to qualify the return crease and fit. A ready-sized preset of the one-piece fold-up divider — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Case inside reference300 × 120 × 150 mm
Flat blank205.4 × 596 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAPPED-WEB-01
- Case inside reference
- Case inside length 300 · Case inside width 120 · Case inside height 150 mm
- Size range
- Case inside length 60–1200 · Case inside width 40–800 · Case inside height 30–800 mm
- Parts
- One blank
- Board area
- 0.122 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteE-flute KE-flute WF-flute
- Good for

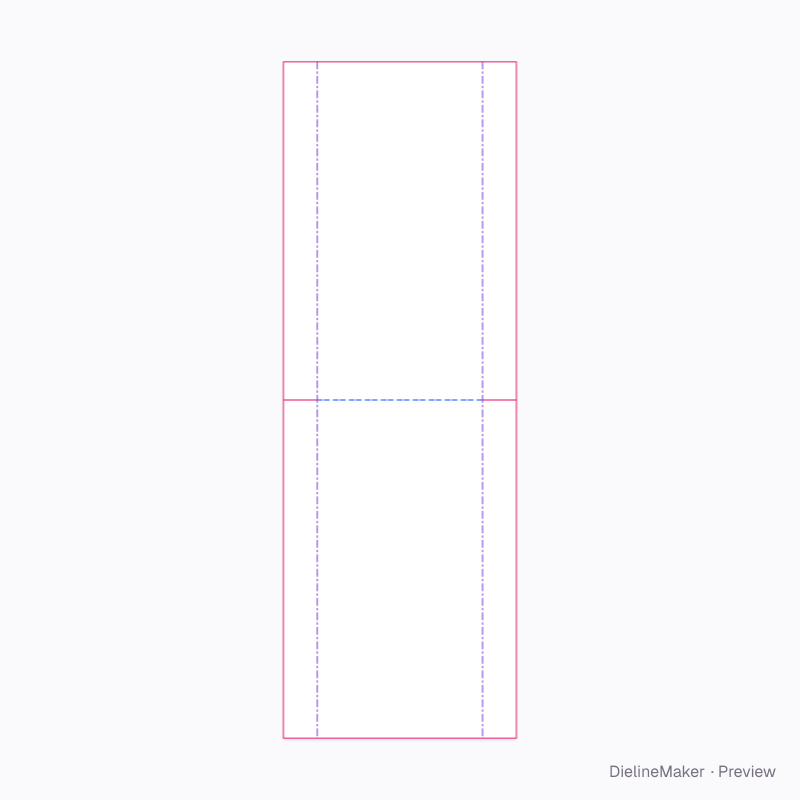

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Divider7 options
- Flange / footmm
- Upper flangemm
The one-piece fold-up divider family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this capped-web divider 300×120×150 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
