Preview image

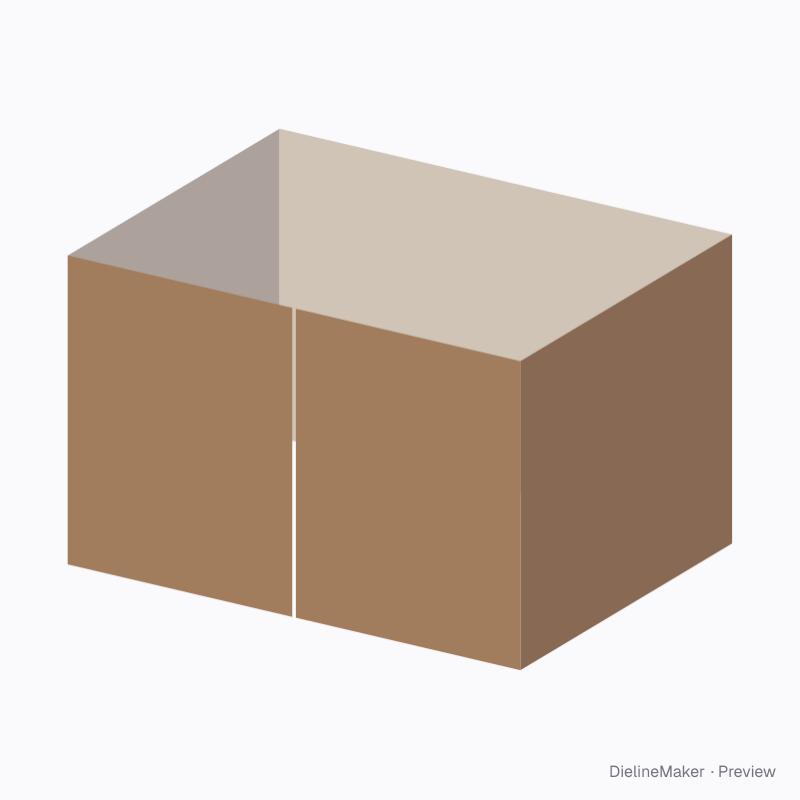

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0908Shipping
Wall liner, joint mid-side 400×300×250 dieline
Lines the four walls; the strip ends meet in the middle of a side. A ready-sized preset of the folded case liner — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Case inside reference400 × 300 × 250 mm
Flat blank1388.8 × 249 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0908
- Case inside reference
- Case inside length 400 · Case inside width 300 · Case inside height 250 mm
- Size range
- Case inside length 60–1500 · Case inside width 50–1200 · Case inside height 40–1200 mm
- Parts
- One blank
- Board area
- 0.346 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Liner10 options
The folded case liner family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wall liner, joint mid-side 400×300×250 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
