FEFCO 0950Trays & lids
Pad with Z-folded edges 300×10×400 dieline
A pad whose edges fold over twice, three plies thick at each edge. A ready-sized preset of the folded profile insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 10 × 400 mm
Outside301.6 × 10 × 400 mm
Flat blank616.8 × 400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0950
- Inside size
- Span 300 · Profile height 10 · Length 400 mm
- Size range
- Span 30–800 · Profile height 10–600 · Length 30–1500 mm
- Manufacturing
- 300 × 8.4 × 400 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.247 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteE-flute KEB doubleF-flute
- Good for

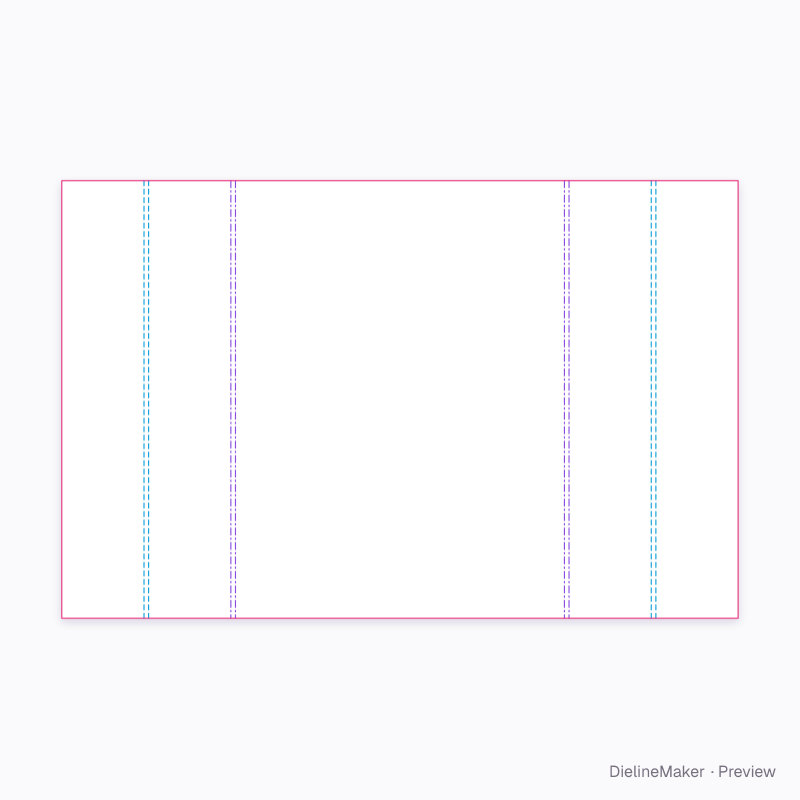

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0950 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Ply | 75 × 400 | – × H |
| Ply 2 | 4.2 × 400 | – × H |
| Ply 3 | 75 × 400 | – × H |
| Ply 4 | 4.2 × 400 | – × H |
| Ply 5 | 300 × 400 | L × H |
| Ply 6 | 4.2 × 400 | – × H |
| Ply 7 | 75 × 400 | – × H |
| Ply 8 | 4.2 × 400 | – × H |
| Ply 9 | 75 × 400 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Profile25 options
- Footmm
- Leg widthmm
