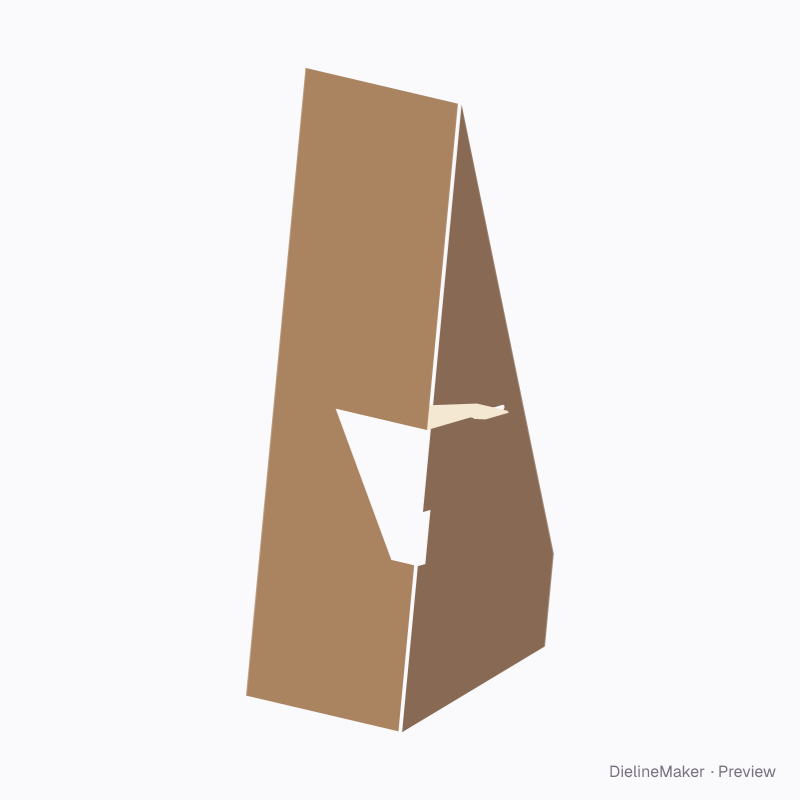

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Angled tabletop back support dieline
An A5 portrait support with a 10° backward viewing lean. Mount the spine along the back center line and align its bottom with the sign. A ready-sized preset of the cardboard folding back support — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside50 × 75 × 180 mm
Outside50 × 75 × 180 mm
Flat blank123.9 × 180 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Mounting width 50 · Stand depth 75 · Support height 180 mm
- Size range
- Mounting width 40–300 · Stand depth 30–600 · Support height 80–1800 mm
- Manufacturing
- 50 × 75 × 180 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.017 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- Solid chipboard 1.2 mm · 1.2 mm caliper
- Board options
- E-flute KE-flute WF-fluteFBB 400Kraft 350B-fluteChipboard 1.2Chipboard 2
- Good for

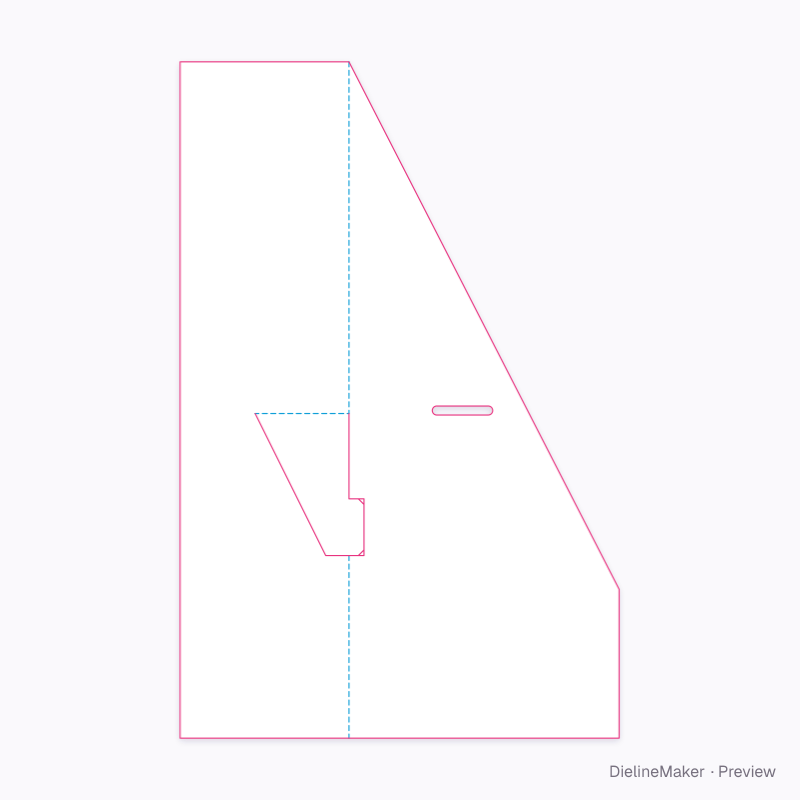

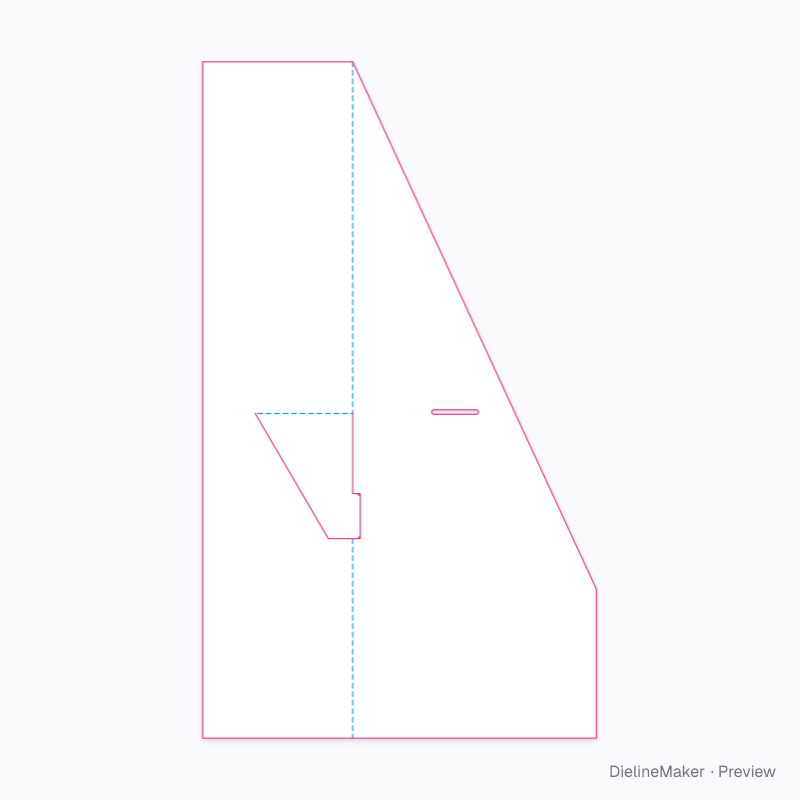

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.2 mm for Solid chipboard 1.2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Mounting spine | 50 × 180 | L × H |
| Triangular rear leg | 73.9 × 180 | – × H |
| Locking brace | 30 × 38.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Brace reachmm
- Brace from basemm
- Display lean°

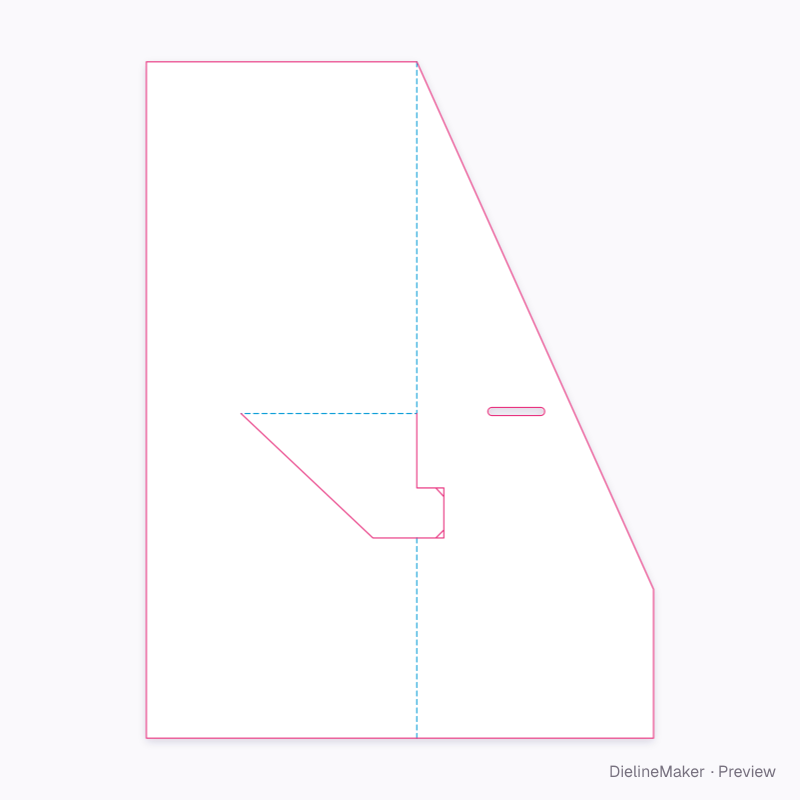

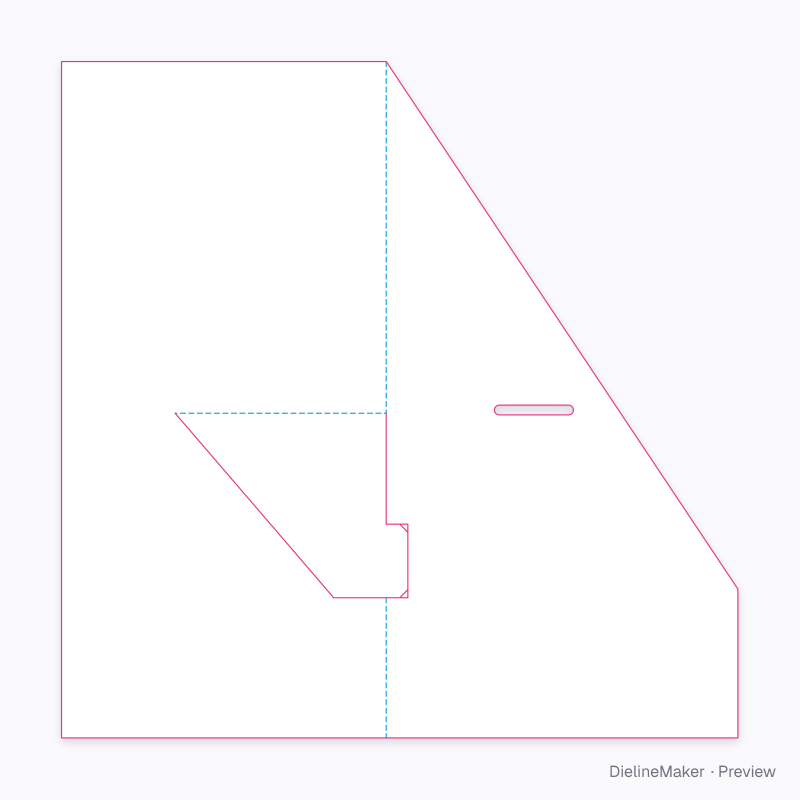

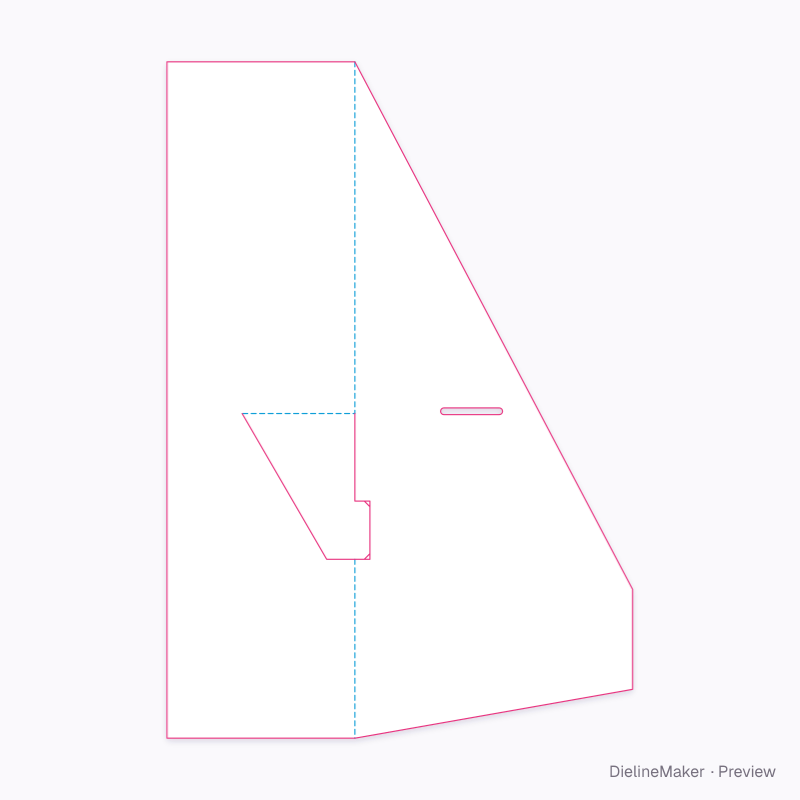

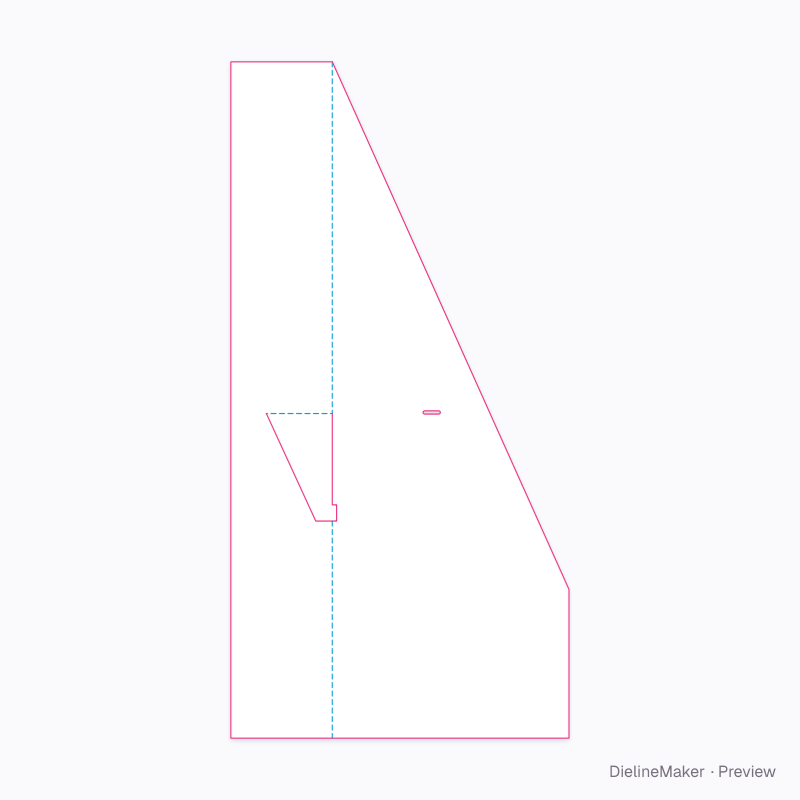

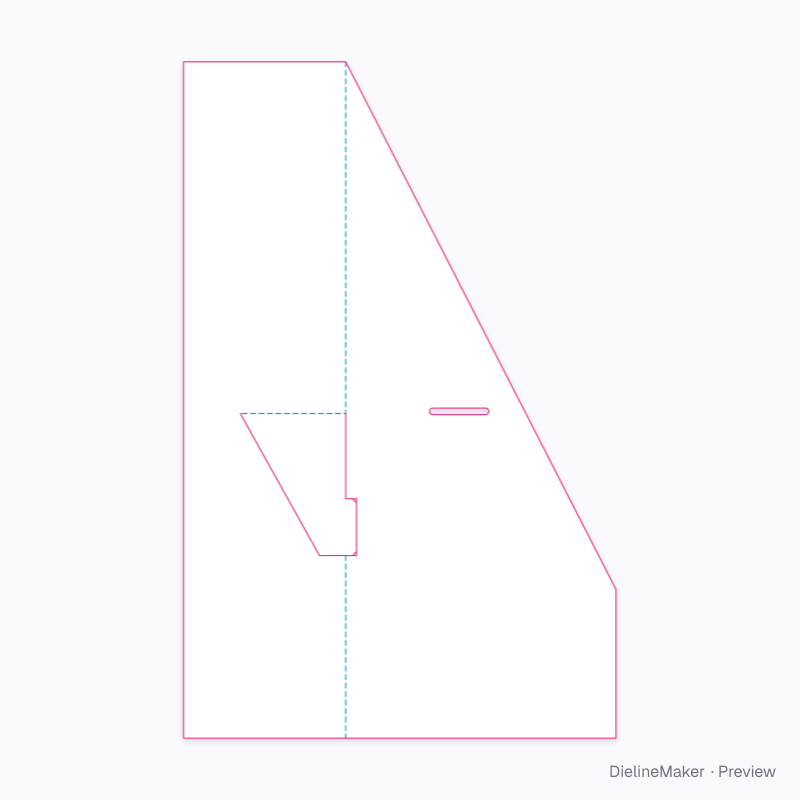

The cardboard folding back support family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset

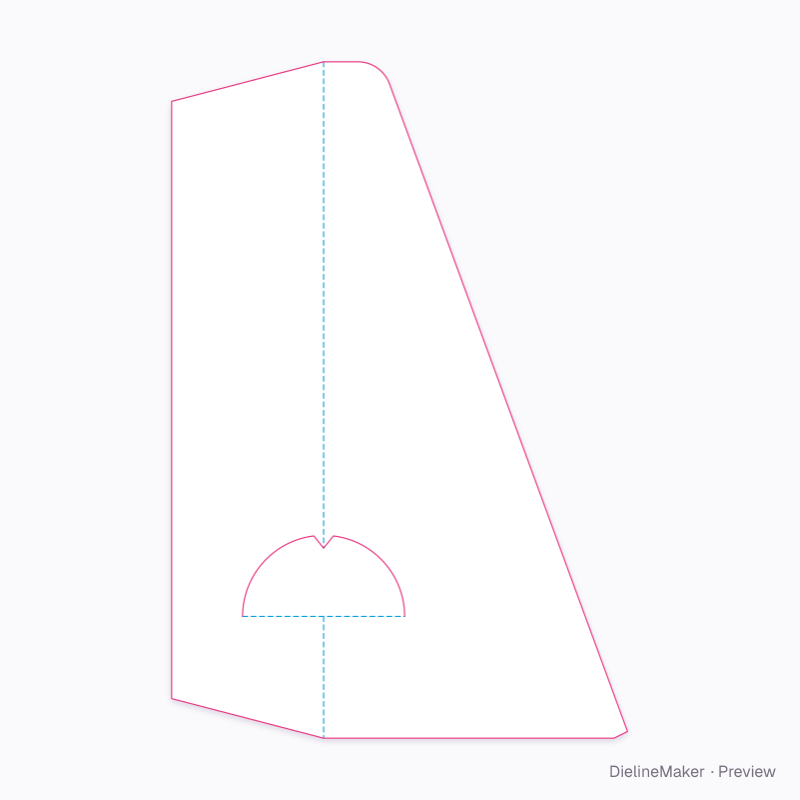

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this angled tabletop back support yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
