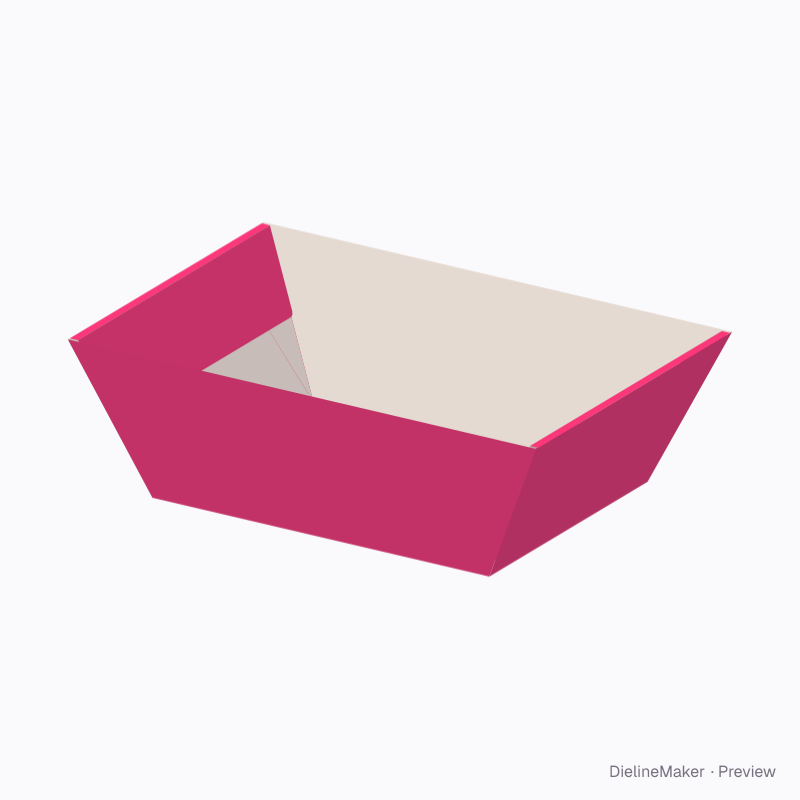

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOOD-BOAT-01Food
Glue-free food tray dieline
Folds flat and locks by hand under rolled ends. A ready-sized preset of the food boat — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 45 mm
Outside151 × 101 × 45.5 mm
Flat blank264.4 × 174.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOOD-BOAT-01
- Inside size
- Length 150 · Width 100 · Height 45 mm
- Size range
- Length 60–280 · Width 40–200 · Height 25–90 mm
- Manufacturing
- 150.5 × 100.5 × 45.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.040 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- End rake°
- Side flare°
- Corners2 options
- Lock flapmm

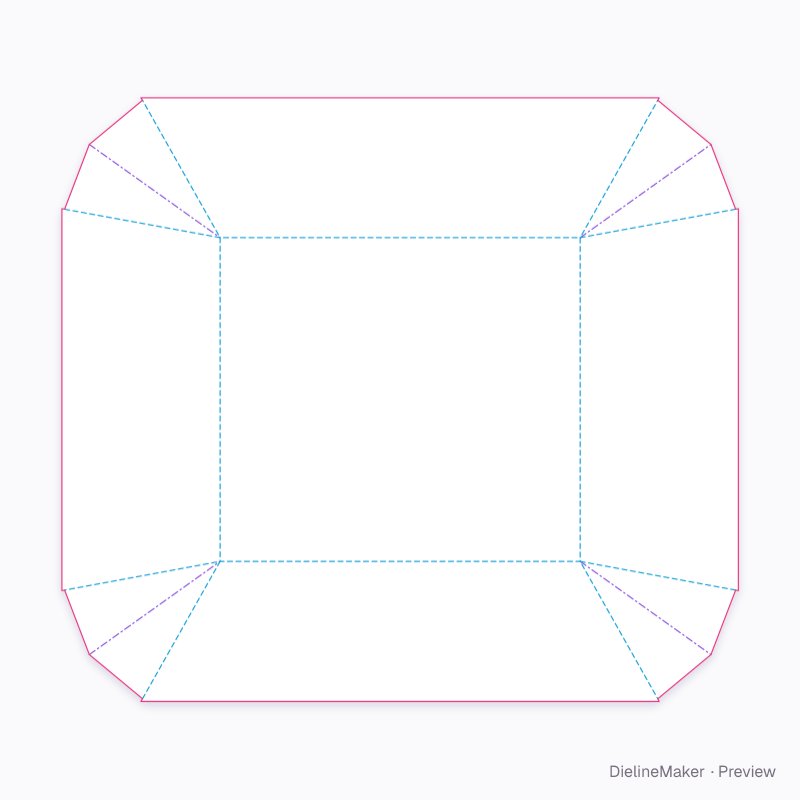

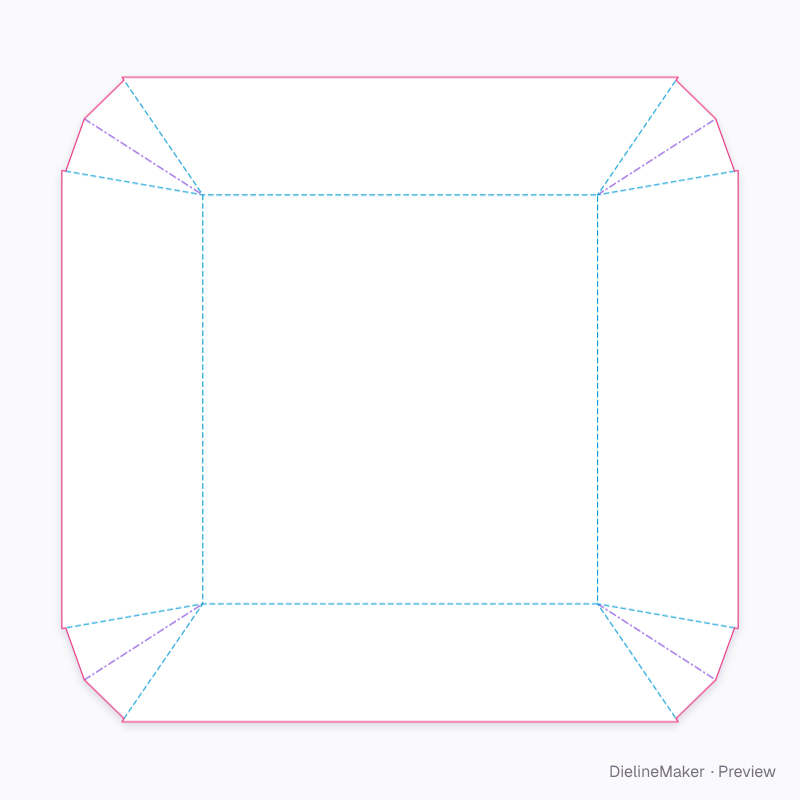

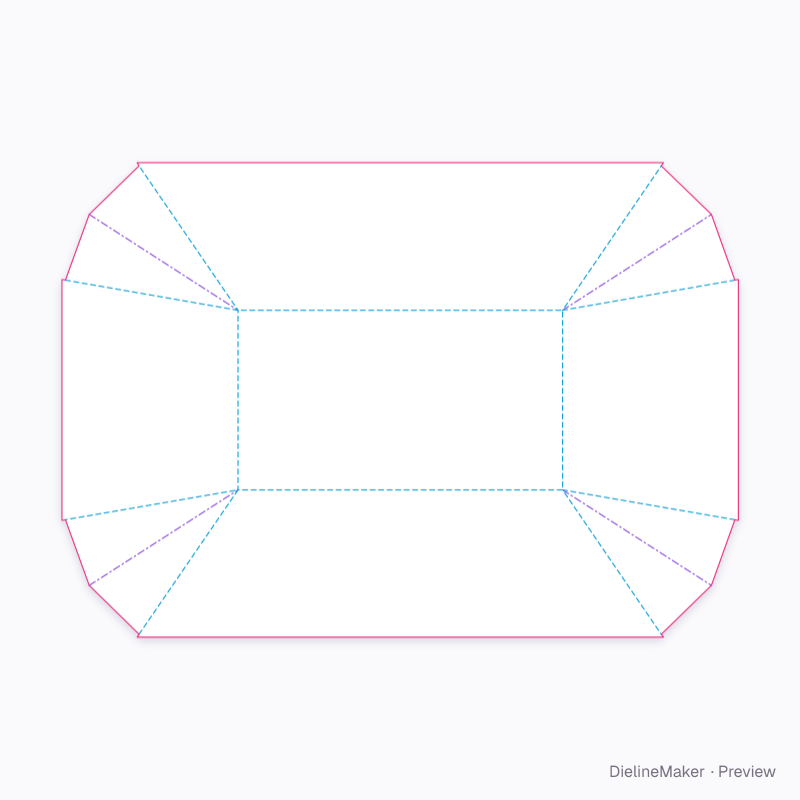

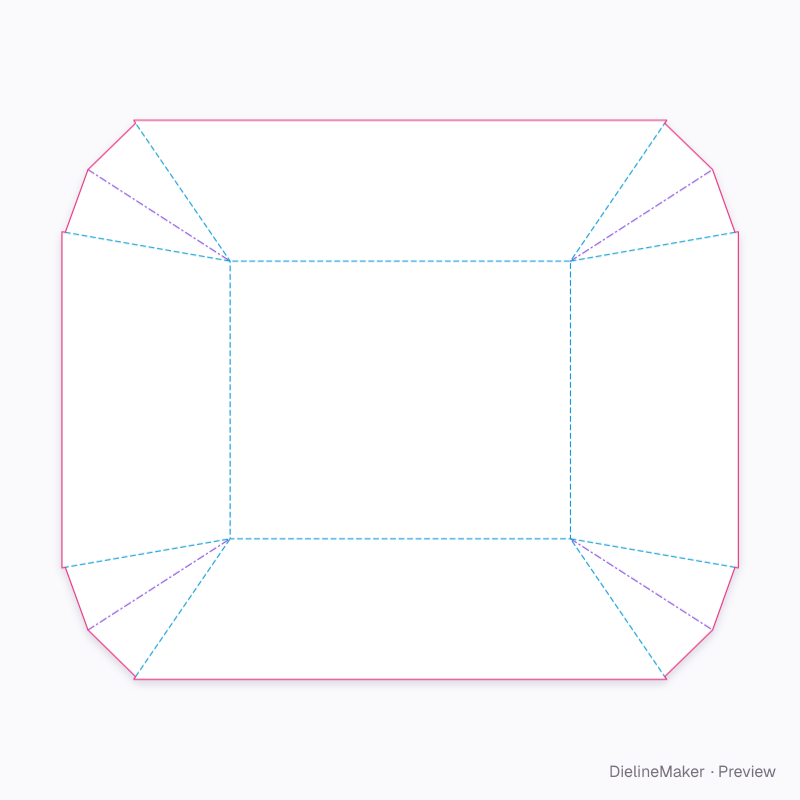

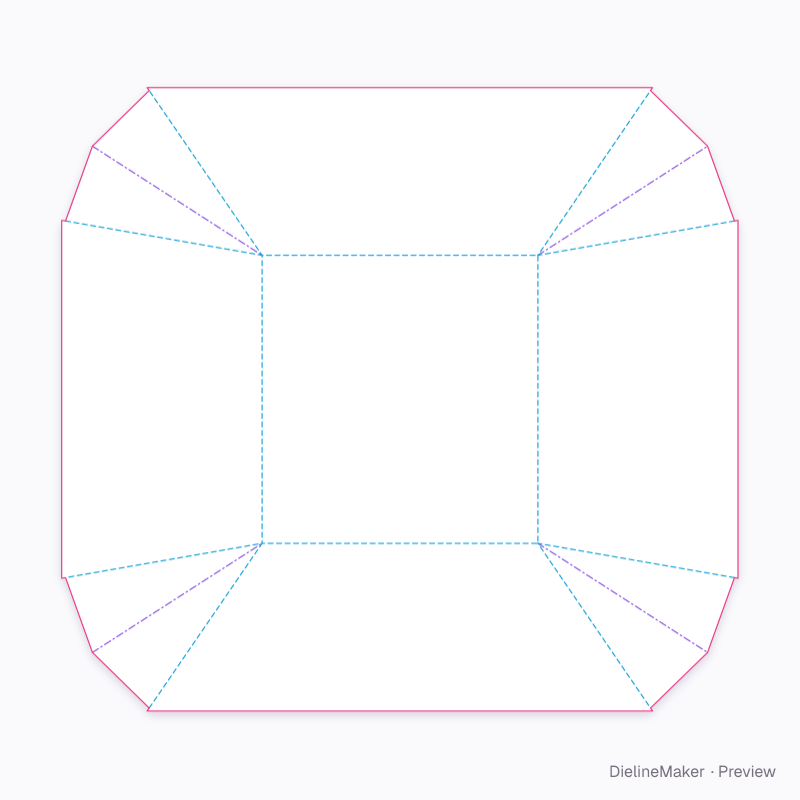

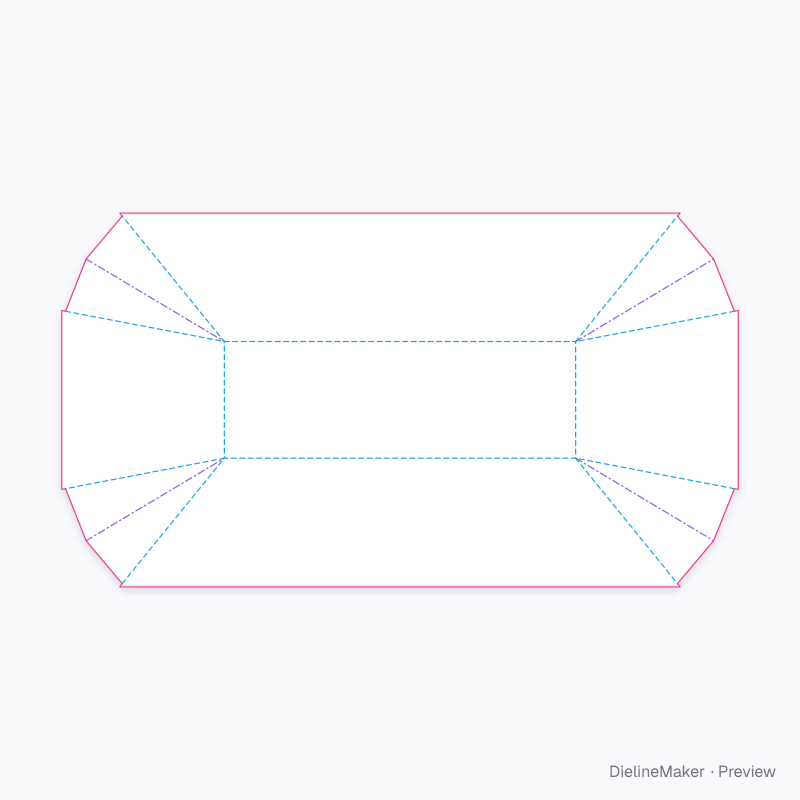

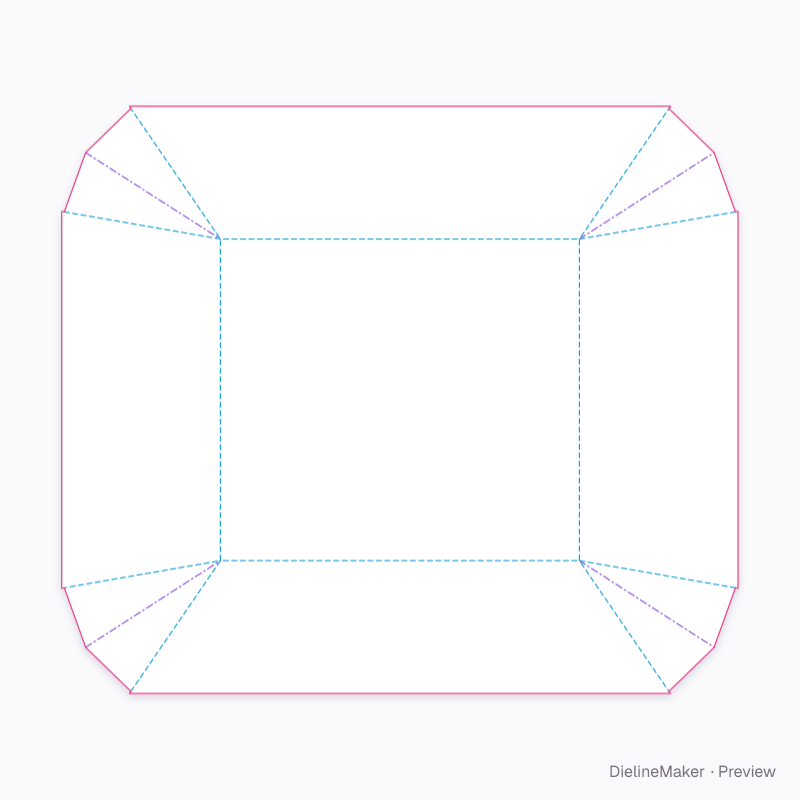

The food boat family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

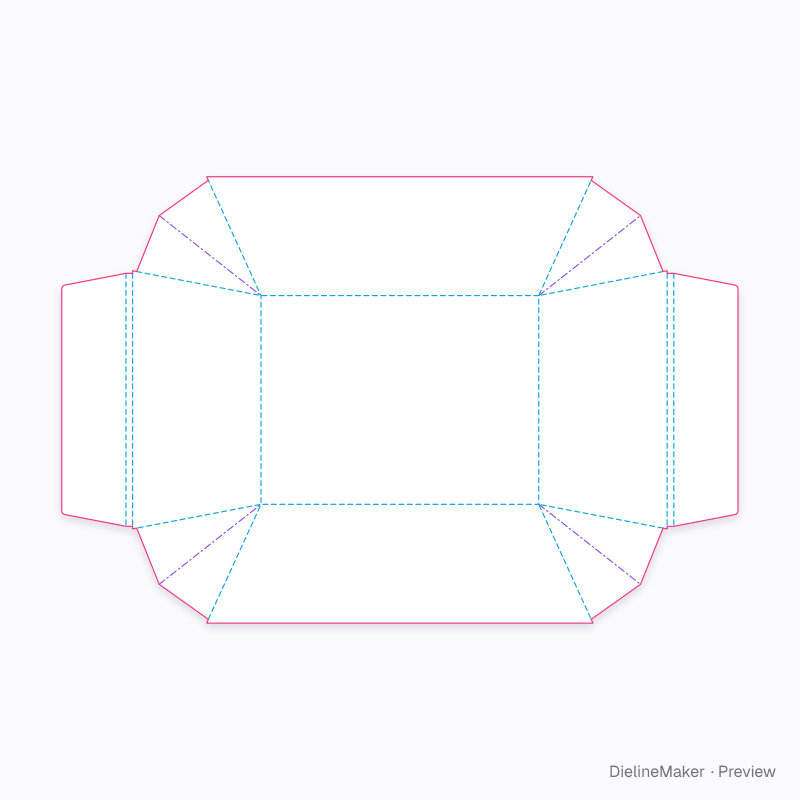

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this glue-free food tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
