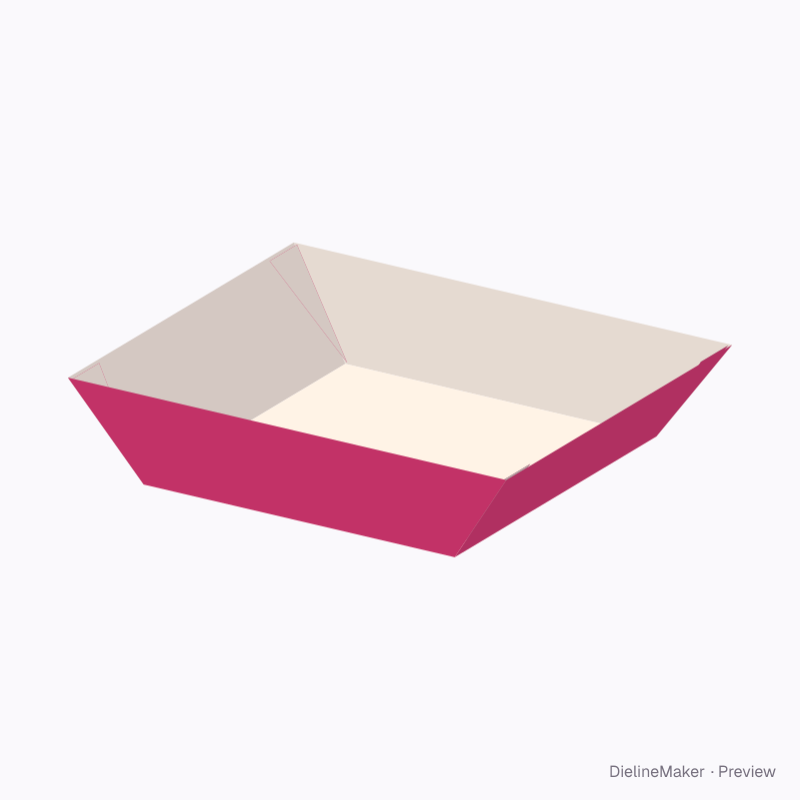

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOOD-BOAT-01Food
Waffle serving boat — Food boat dieline
Editable 170 × 140 × 35 mm starting point using food boat. Adjust the dimensions to your product before prototyping. A ready-sized preset of the food boat — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside170 × 140 × 35 mm
Outside170.9 × 140.9 × 35.5 mm
Flat blank207.8 × 198.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOOD-BOAT-01
- Inside size
- Length 170 · Width 140 · Height 35 mm
- Size range
- Length 60–280 · Width 40–200 · Height 25–90 mm
- Manufacturing
- 170.4 × 140.4 × 35.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.040 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- End rake°
- Side flare°
- Corners2 options
The food boat family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this waffle serving boat — food boat yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
