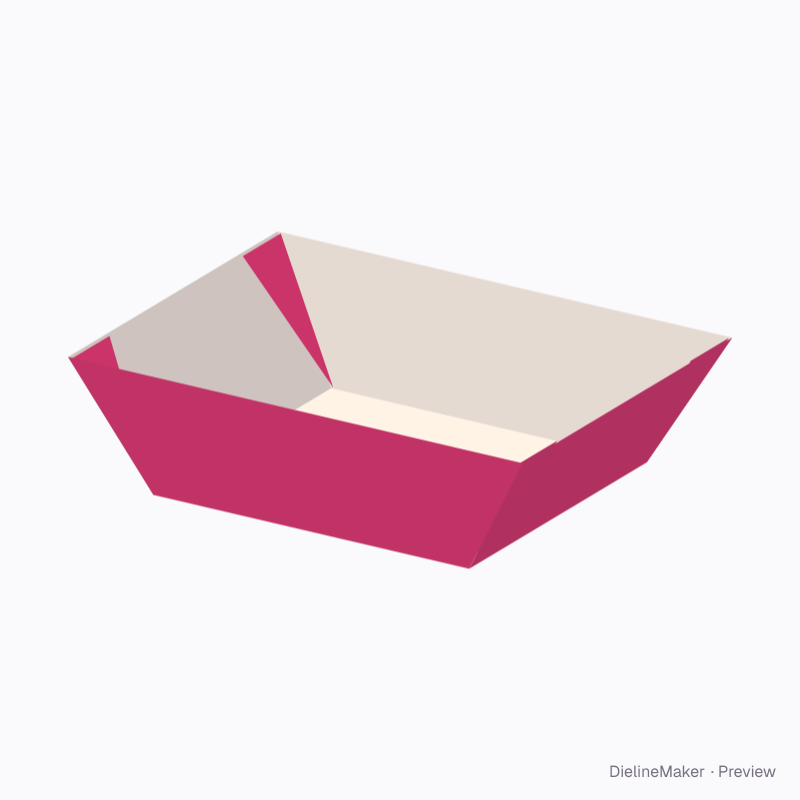

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOOD-BOAT-01Food
Nacho tray dieline
A wide, deep boat for loaded nachos and tacos. A ready-sized preset of the food boat — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 140 × 50 mm
Outside191 × 141 × 50.5 mm
Flat blank249.3 × 222.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOOD-BOAT-01
- Inside size
- Length 190 · Width 140 · Height 50 mm
- Size range
- Length 60–280 · Width 40–200 · Height 25–90 mm
- Manufacturing
- 190.5 × 140.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.054 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- End rake°
- Side flare°
- Corners2 options
The food boat family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this nacho tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
