Flared tray with glued webbed corners

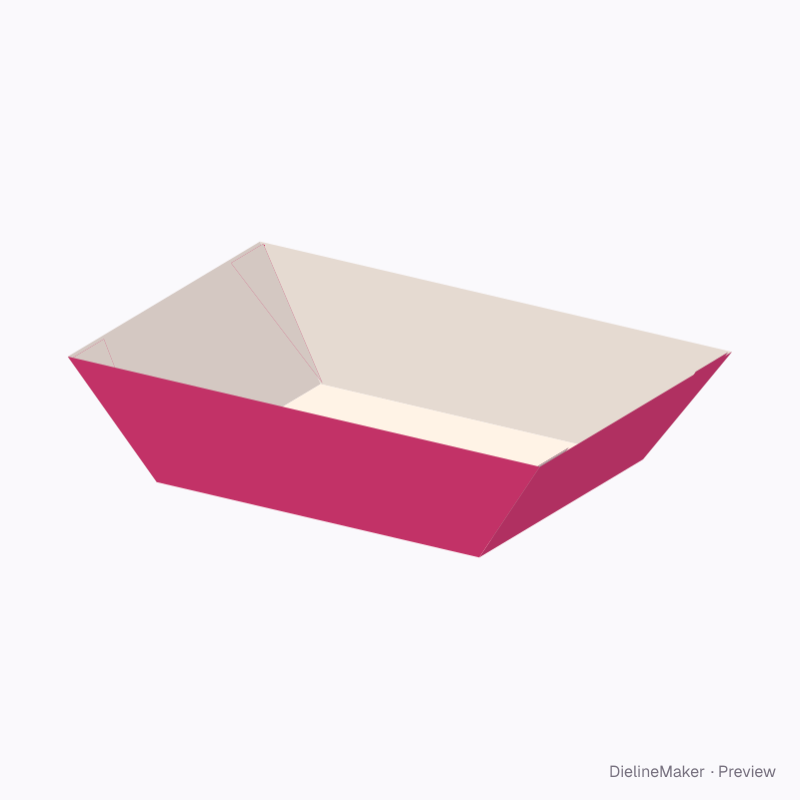

Preview image

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.

DM-FOOD-BOAT-01Food

Flared tray with glued webbed corners dieline

Glued tray whose four walls flare outward; the corner webs fold flat and are glued inside. A ready-sized preset of the food boat — change the length, width and height and every panel, tuck and glue flap is redrawn to match.

Inside200 × 130 × 45 mm
Outside201 × 131 × 45.5 mm
Flat blank248.4 × 204.7 mm
Customize freeOpen in 3D Studio
Download the dielinePro
Flat dieline preview

Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans

Reference
DM-FOOD-BOAT-01
Inside size
Length 200 · Width 130 · Height 45 mm
Size range
Length 60–280 · Width 40–200 · Height 25–90 mm
Manufacturing
200.5 × 130.5 × 45.3 mm score to score · inside vs outside sizes
Parts
One blank
Board area
0.049 m² · about 8 up on a 720 × 1020 mm sheet
Default board
SBS white board 350 g · 0.5 mm caliper
Board options
Food SBS PEFood kraft PESBS 350Kraft 350SBS 300SBS 18 pt
Good for
non rectangular trayflared wallswebbed cornersglued webbed cornersfood boatfood traypaper boatboat trayhot dog traynacho tray

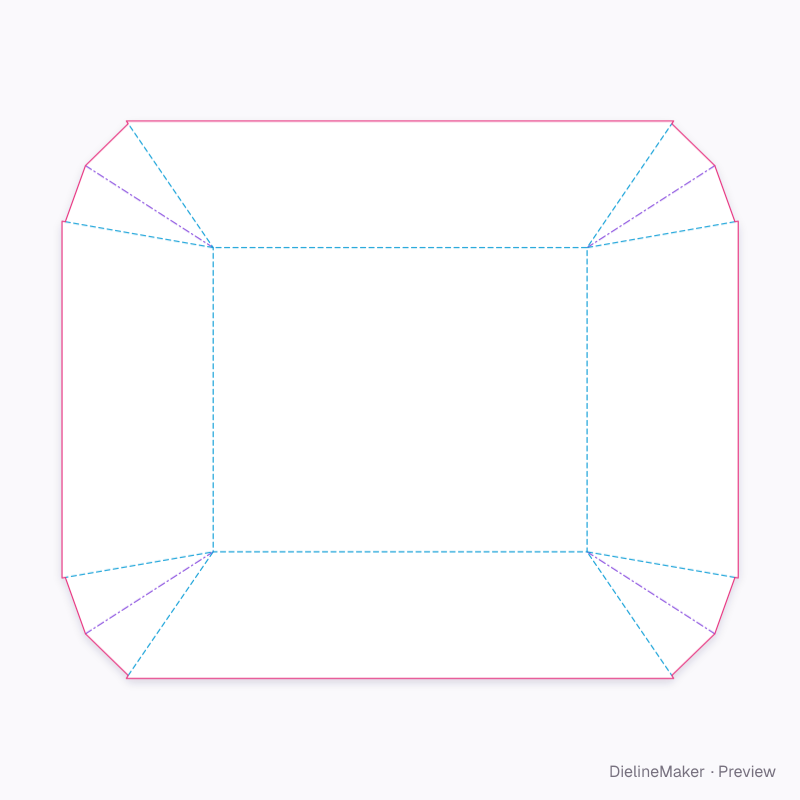

The flat dieline

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.

  • Reverse crease
  • Crease
  • Cut
  • Bleed 3 mm
Flared tray with glued webbed corners flat dieline with cut and crease lines

Adjustable in the editor

Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.

  • End rake°
  • Side flare°
  • Corners2 options
