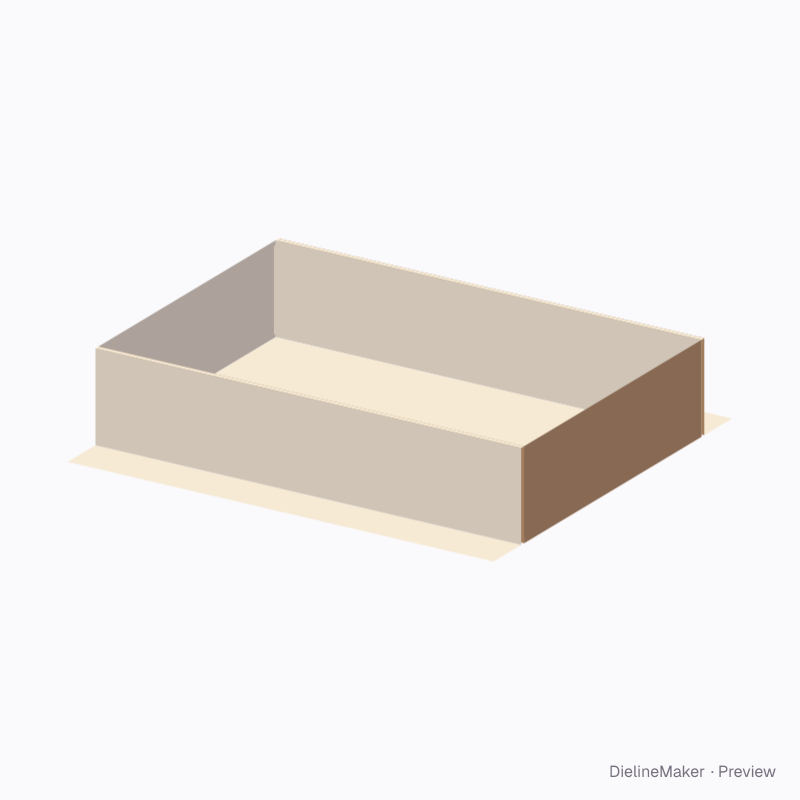

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOOT-RETURN-TRAY-01Trays & lids
Footed display tray 240×160×50 dieline
A tray whose long walls roll over into outer plies that turn outward at the base as wide feet. A ready-sized preset of the tray with external foot returns — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 160 × 50 mm
Outside243.2 × 163.2 × 53.2 mm
Flat blank340 × 415.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOOT-RETURN-TRAY-01
- Inside size
- Length 240 · Width 160 · Height 50 mm
- Size range
- Length 60–600 · Width 40–400 · Height 15–200 mm
- Manufacturing
- 241.6 × 161.6 × 51.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.119 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KSBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FOOT-RETURN-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 240 × 160 | L × W |
| Long wall ×2 | 240 × 50 | L × H |
| End wall ×2 | 50 × 160 | H × W |
| Rim roll ×2 | 240 × 2.6 | L × – |
| Glue flap ×4 | 46 × 20 | – |
| Outer ply ×2 | 240 × 50 | L × H |
| Foot flange ×2 | 240 × 25 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Foot widthmm
The tray with external foot returns family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this footed display tray 240×160×50 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
