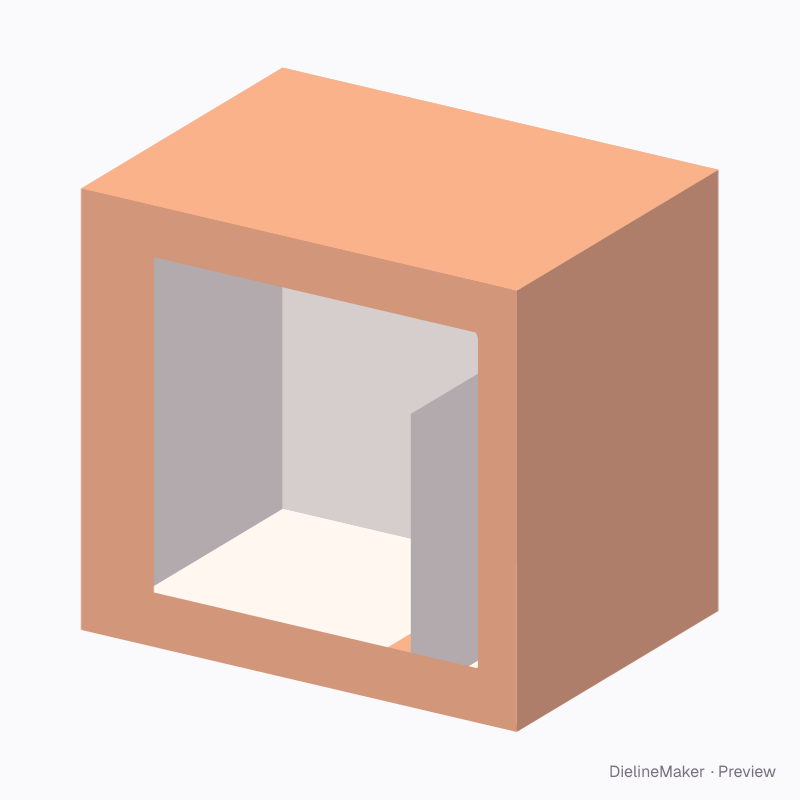

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FRAMED-MUG-CARTON-01Tuck end
15 oz open-front mug carton dieline
A tuck-end carton with a framed open front and an inner retaining panel in front of the mug handle. A ready-sized preset of the open-front framed mug carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside135 × 100 × 125 mm
Outside136.8 × 101.8 × 126.8 mm
Flat blank492 × 355 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FRAMED-MUG-CARTON-01
- Inside size
- Length 135 · Depth 100 · Height 125 mm
- Size range
- Length 80–250 · Depth 60–200 · Height 60–250 mm
- Manufacturing
- 135.9 × 100.9 × 125.9 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Framed mug carton, Retaining insert
- Board area
- 0.122 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- F-flute micro corrugated · 0.9 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FRAMED-MUG-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.9 mm for F-flute micro corrugated). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frameFramed mug carton | 135 × 125 | L × H |
| Right sideFramed mug carton | 100 × 125 | W × H |
| BackFramed mug carton | 135 × 125 | L × H |
| Dust flap ×4Framed mug carton | 100 × 65.5 | W × – |
| Left sideFramed mug carton | 100 × 125 | W × H |
| Top lidFramed mug carton | 135 × 100 | L × W |
| Bottom lidFramed mug carton | 135 × 100 | L × W |
| Glue flapFramed mug carton | 22 × 121 | – |
| Tuck ×2Framed mug carton | 135 × 15 | L × – |
| Retaining panelRetaining insert | 45 × 81.3 | – |
| Glued footRetaining insert | 45 × 25 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Front frame widthmm
- Retaining panel offsetmm
- Retaining panel heightmm
- Tuck depthmm
The open-front framed mug carton family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 15 oz open-front mug carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
