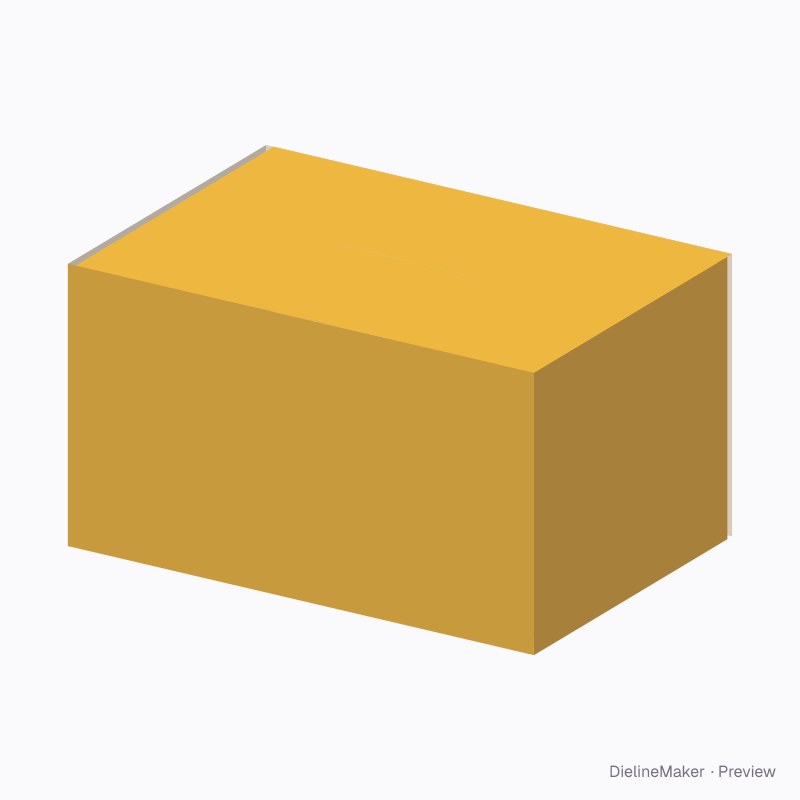

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0320Shipping
Compact parcel carton — Full telescope shipper dieline
Editable 180 × 120 × 100 mm starting point using full telescope shipper. Adjust the dimensions to your product before prototyping. A ready-sized preset of the full telescope shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 100 mm
Outside201 × 137.8 × 112.8 mm
Flat blank693.6 × 176.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0320
- Inside size
- Length 180 · Width 120 · Height 100 mm
- Size range
- Length 100–1000 · Width 80–800 · Height 60–800 mm
- Manufacturing
- 183.2 × 123.2 × 103.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 0.221 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for

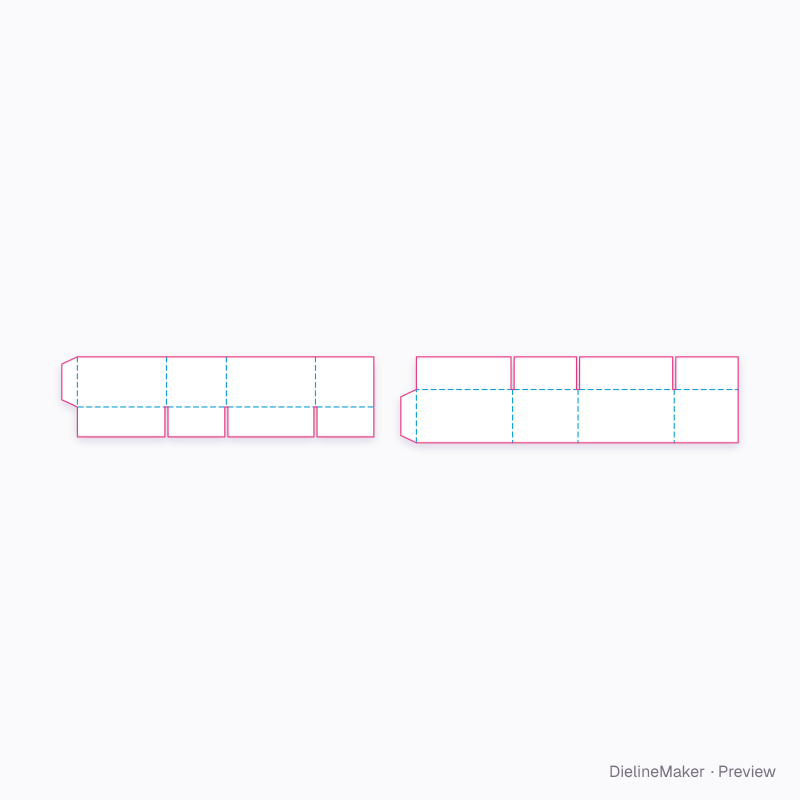

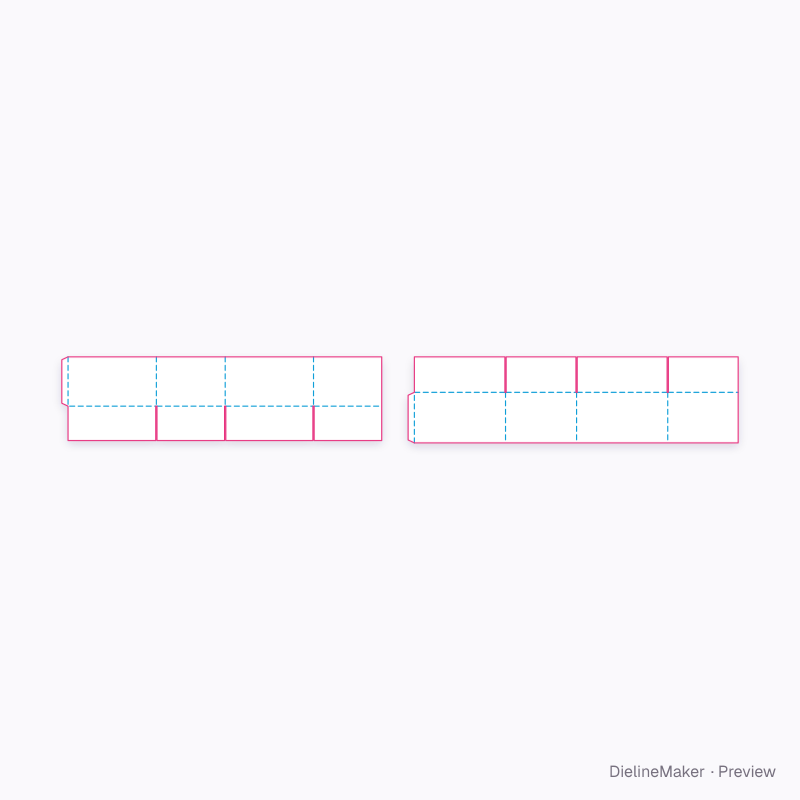

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0320 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 183.2 × 103.2 | L + T × H + T |
| Left sideBody | 123.2 × 103.2 | W + T × H + T |
| BackBody | 183.2 × 103.2 | L + T × H + T |
| Right sideBody | 120 × 103.2 | W × H + T |
| Glue flapBody | 32 × 103.2 | – × H + T |
| Bottom outer flapBody | 180 × 61.6 | L × – |
| Bottom inner flap ×2Body | 116.8 × 61.6 | W − T × – |
| Bottom outer flapBody | 176.8 × 61.6 | L − T × – |
| Pose rigCover | 100 × 139.6 | – |
| FrontCover | 100 × 139.6 | – |
| Left sideCover | 134.6 × 109.6 | – |
| BackCover | 197.8 × 109.6 | – |
| Right sideCover | 131.4 × 109.6 | – |
| Glue flapCover | 32 × 109.6 | – |
| Top outer flapCover | 194.6 × 67.3 | – |
| Top inner flap ×2Cover | 128.2 × 67.3 | – |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
The full telescope shipper family
The same structure with sizes, boards and options set for a use.

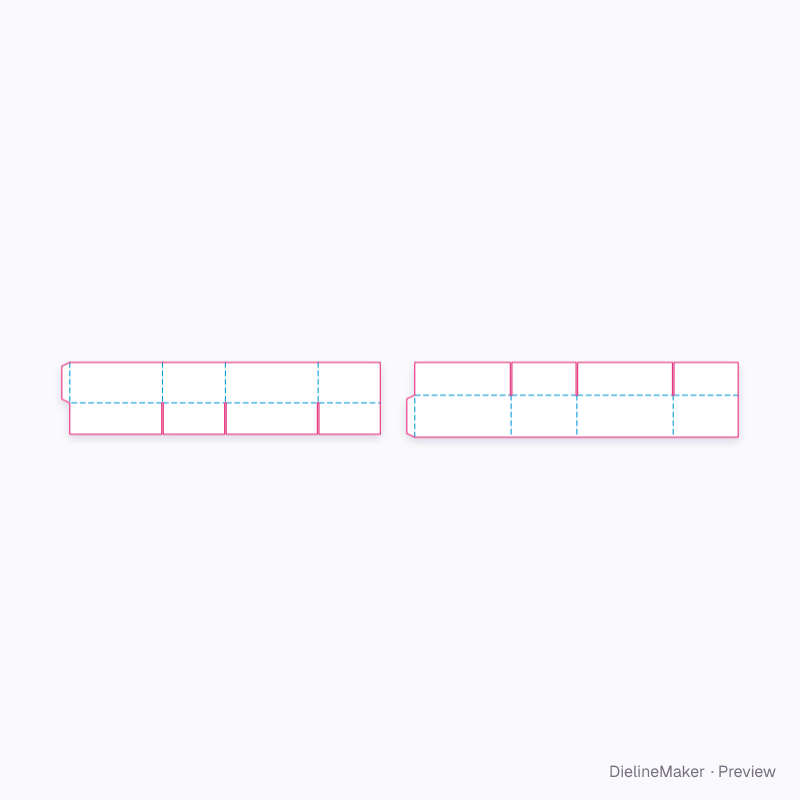

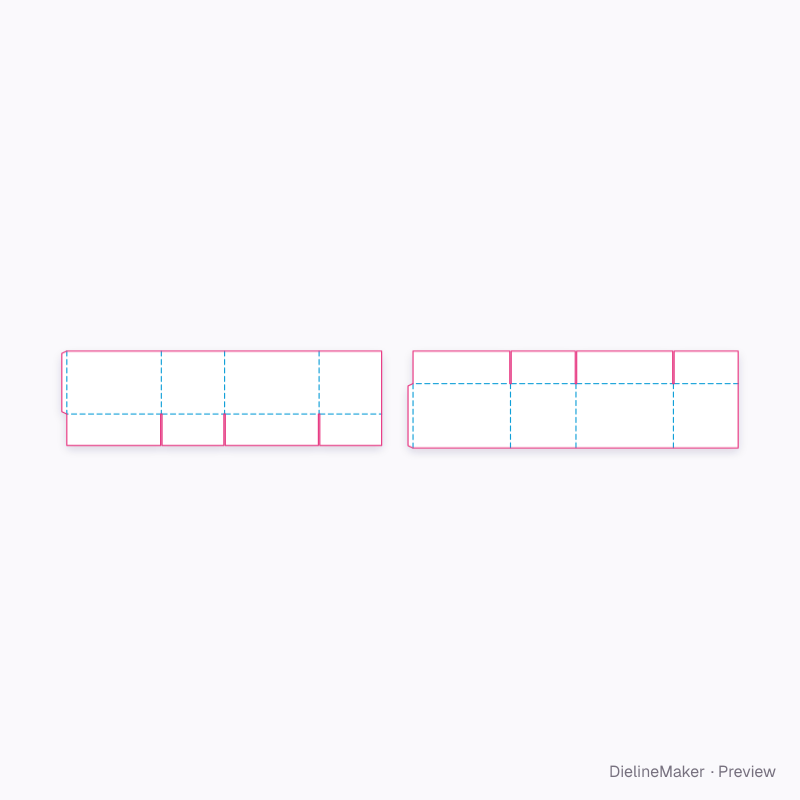

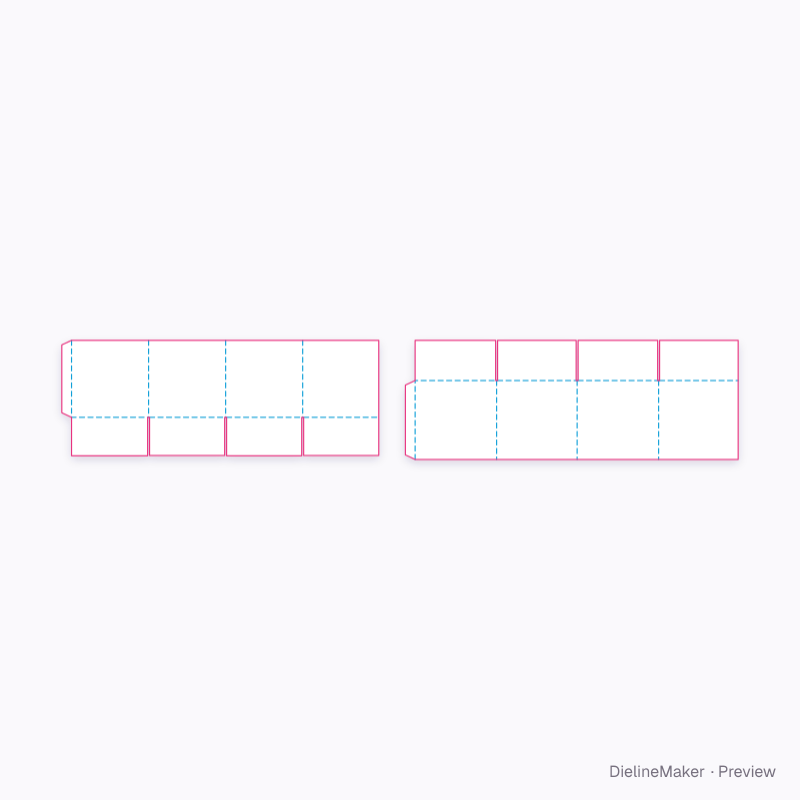

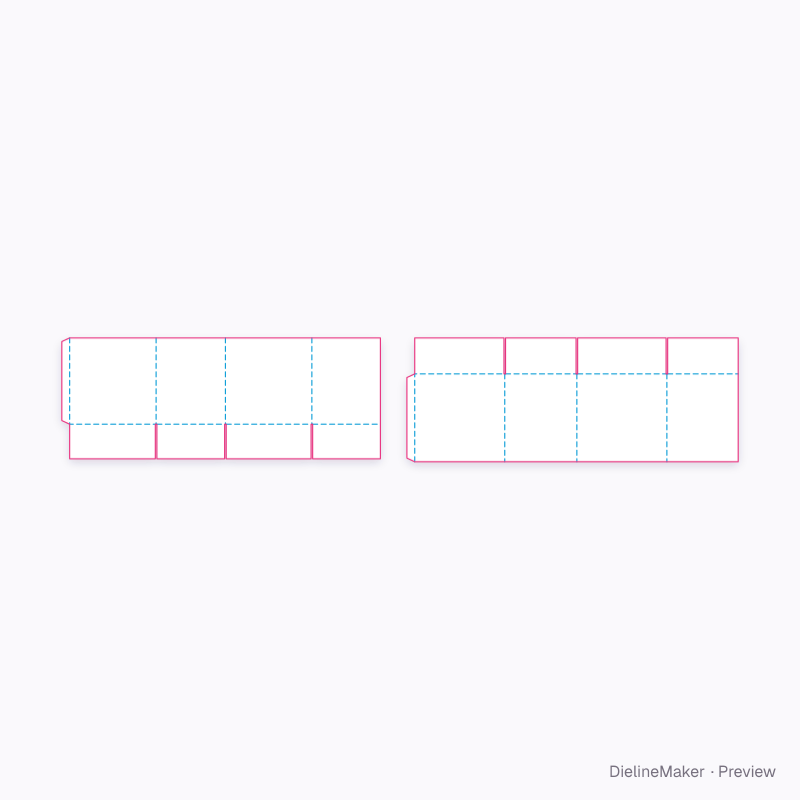

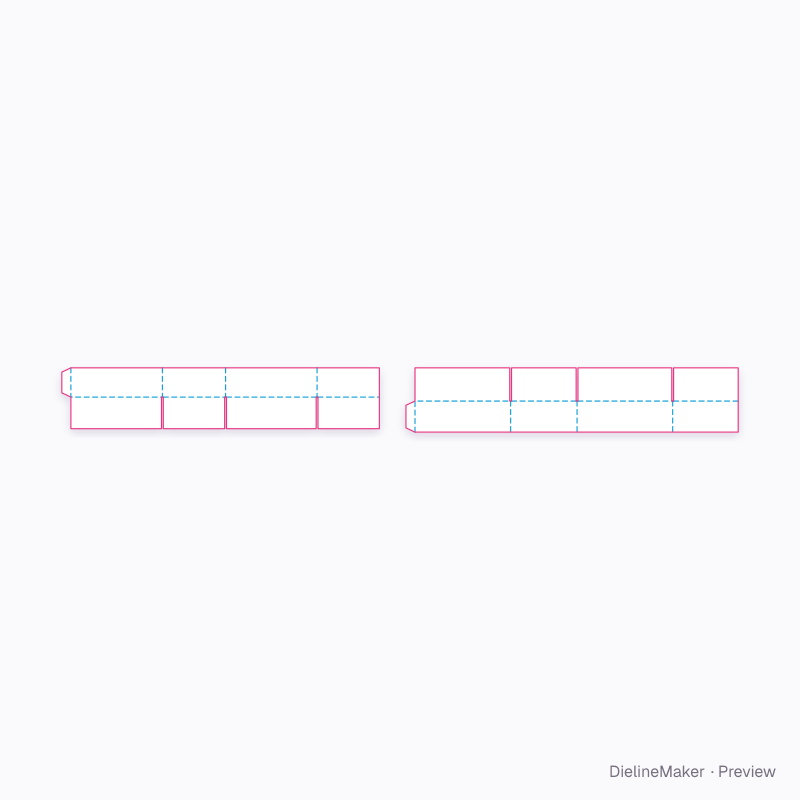

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

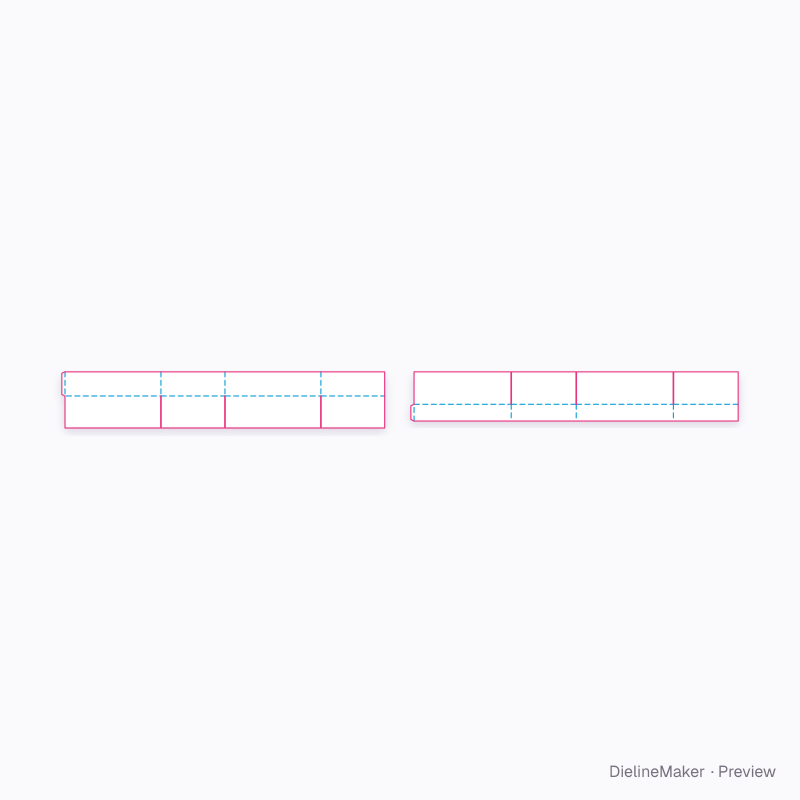

Similar structures
