Preview image

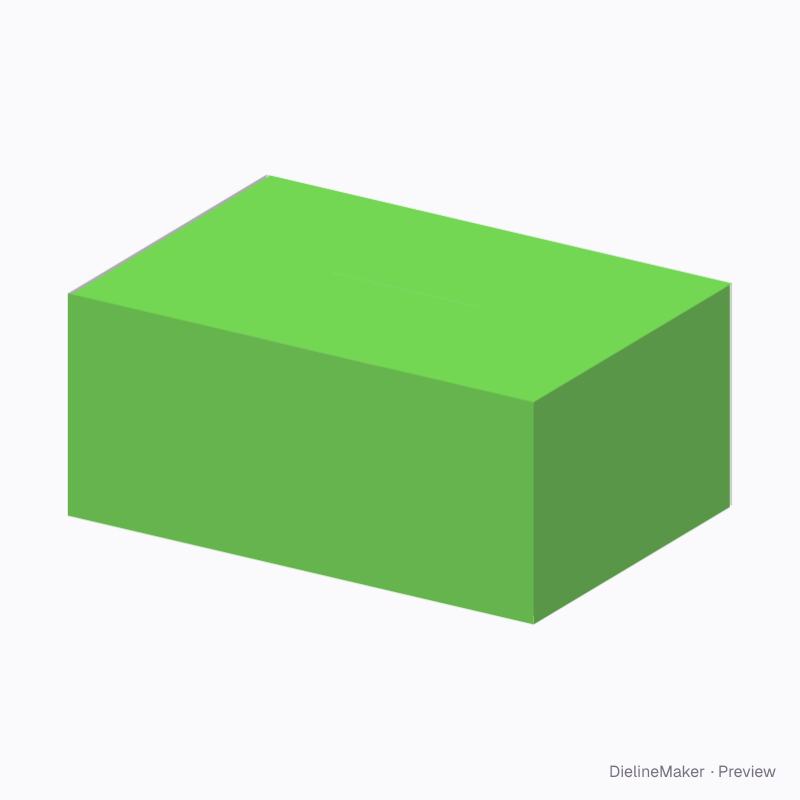

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0320Shipping
Footwear shipping carton — Full telescope shipper dieline
Editable 370 × 250 × 160 mm starting point using full telescope shipper. Adjust the dimensions to your product before prototyping. A ready-sized preset of the full telescope shipper — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside370 × 250 × 160 mm
Outside391 × 267.8 × 172.8 mm
Flat blank1333.6 × 301.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0320
- Inside size
- Length 370 · Width 250 · Height 160 mm
- Size range
- Length 100–1000 · Width 80–800 · Height 60–800 mm
- Manufacturing
- 373.2 × 253.2 × 163.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body, Cover
- Board area
- 0.760 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0320 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontBody | 373.2 × 163.2 | L + T × H + T |
| Left sideBody | 253.2 × 163.2 | W + T × H + T |
| BackBody | 373.2 × 163.2 | L + T × H + T |
| Right sideBody | 250 × 163.2 | W × H + T |
| Glue flapBody | 32 × 163.2 | – × H + T |
| Bottom outer flapBody | 370 × 126.6 | L × – |
| Bottom inner flap ×2Body | 246.8 × 126.6 | W − T × – |
| Bottom outer flapBody | 366.8 × 126.6 | L − T × – |
| Pose rigCover | 100 × 199.6 | – |
| FrontCover | 100 × 199.6 | – |
| Left sideCover | 264.6 × 169.6 | – |
| BackCover | 387.8 × 169.6 | – |
| Right sideCover | 261.4 × 169.6 | – |
| Glue flapCover | 32 × 169.6 | – |
| Top outer flapCover | 384.6 × 132.3 | – |
| Top inner flap ×2Cover | 258.2 × 132.3 | – |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
The full telescope shipper family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this footwear shipping carton — full telescope shipper yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
