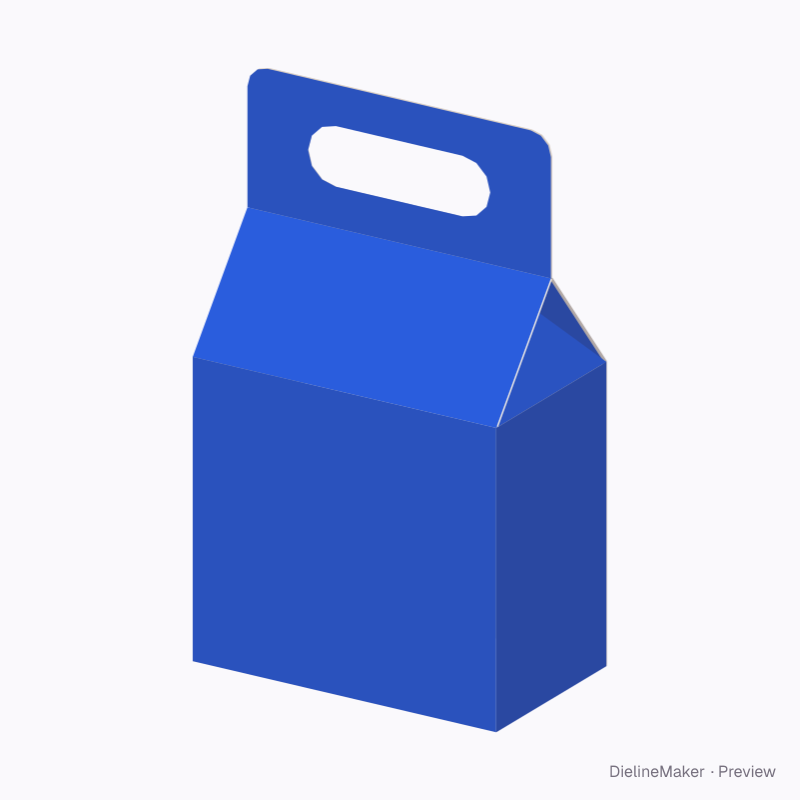

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HANDLED-GABLE-SNAP-01Food
Cookie gable box dieline
Kraft carry box for four cookies. A ready-sized preset of the gable box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 70 × 110 mm
Outside120.9 × 70.9 × 110.9 mm
Flat blank393.4 × 262.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HANDLED-GABLE-SNAP-01
- Inside size
- Length 120 · Width 70 · Height 110 mm
- Size range
- Length 50–400 · Width 30–250 · Height 30–400 mm
- Manufacturing
- 120.5 × 70.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.089 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350F-fluteSBS 18 pt
- Good for

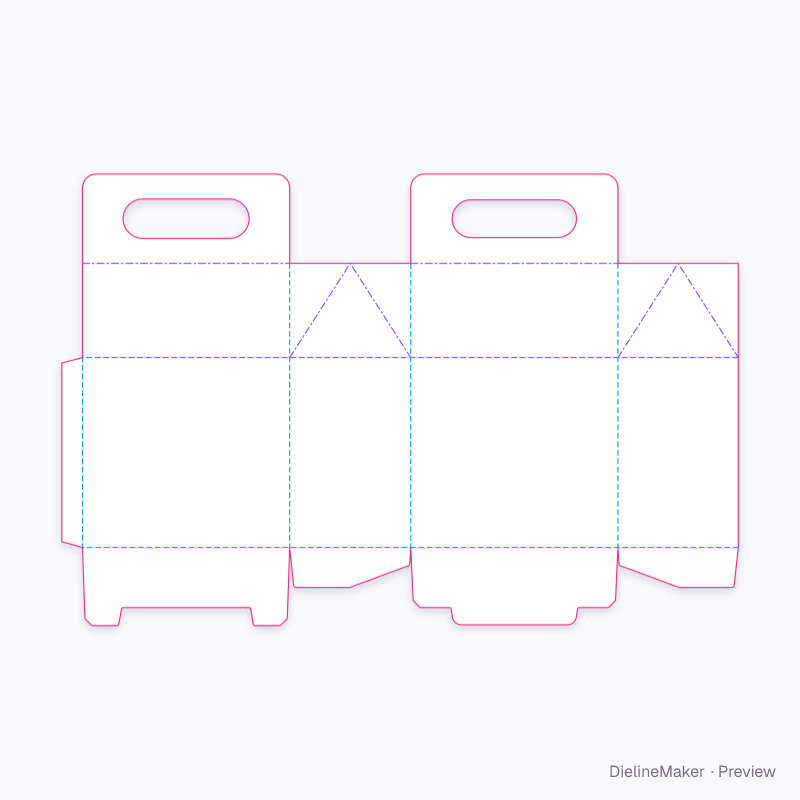

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HANDLED-GABLE-SNAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.5 × 110.5 | L + T × H + T |
| Left side | 70.5 × 110.5 | W + T × H + T |
| Back | 120.5 × 110.5 | L + T × H + T |
| Right side | 70 × 110.5 | W × H + T |
| Glue flap | 12 × 110.5 | – × H + T |
| Snap end | 70.5 × 23.3 | W + T × – |
| Snap end | 70 × 23.3 | W × – |
| Snap bottom | 120.5 × 45.5 | L + T × – |
| Snap tuck | 120.5 × 45 | L + T × – |
| Front roof | 120.5 × 54.8 | L + T × √(rise² + (W/2)²) |
| Back roof | 120.5 × 54.8 | L + T × √(rise² + (W/2)²) |
| Front handle | 120.5 × 52 | L + T × – |
| Back handle | 120.5 × 52 | L + T × – |
| Left gable end | 70.5 × 54.8 | W + T × – |
| Right gable end | 70 × 54.8 | W × – |
| Gable fold-in ×2 | 35.2 × 54.8 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Roof heightmm
- Bottom3 options
- Handle holeon / off
- Handle heightmm
- Hole widthmm
- Body windows3 options
- Body window width%
- Body window height%
- Cord holeson / off
The gable box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

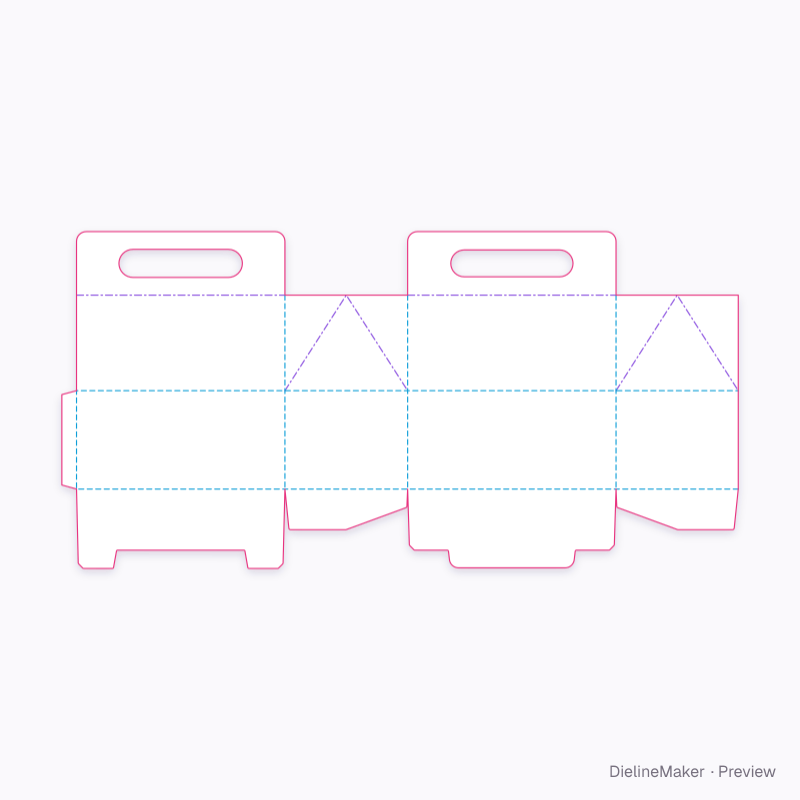

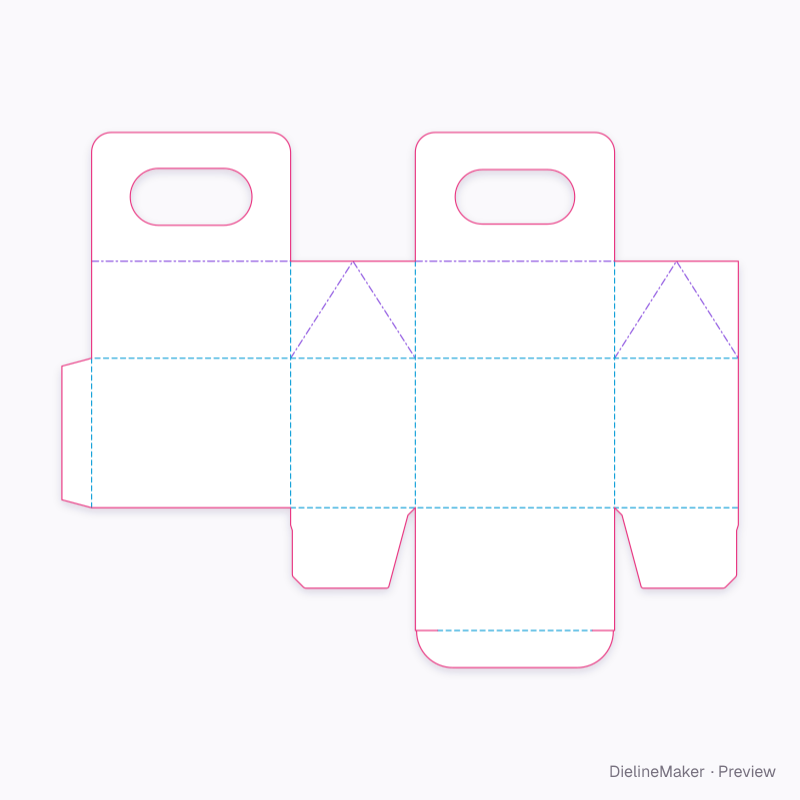

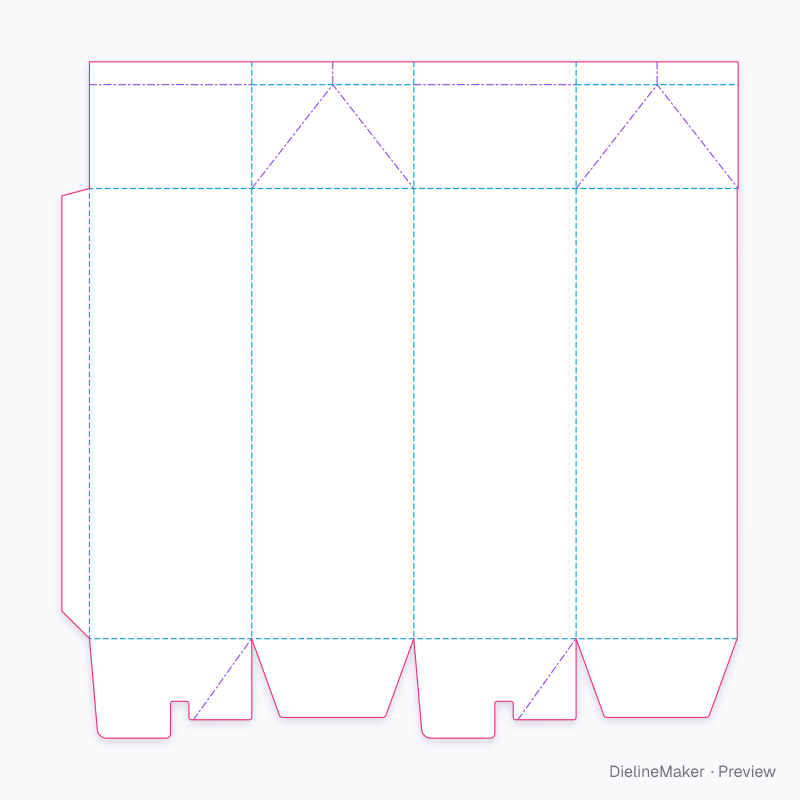

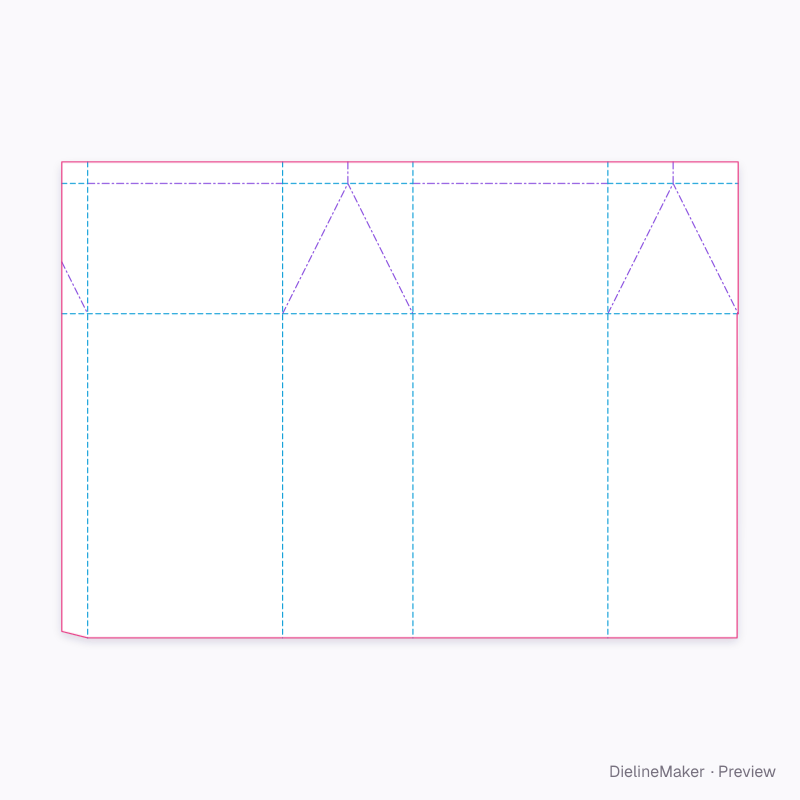

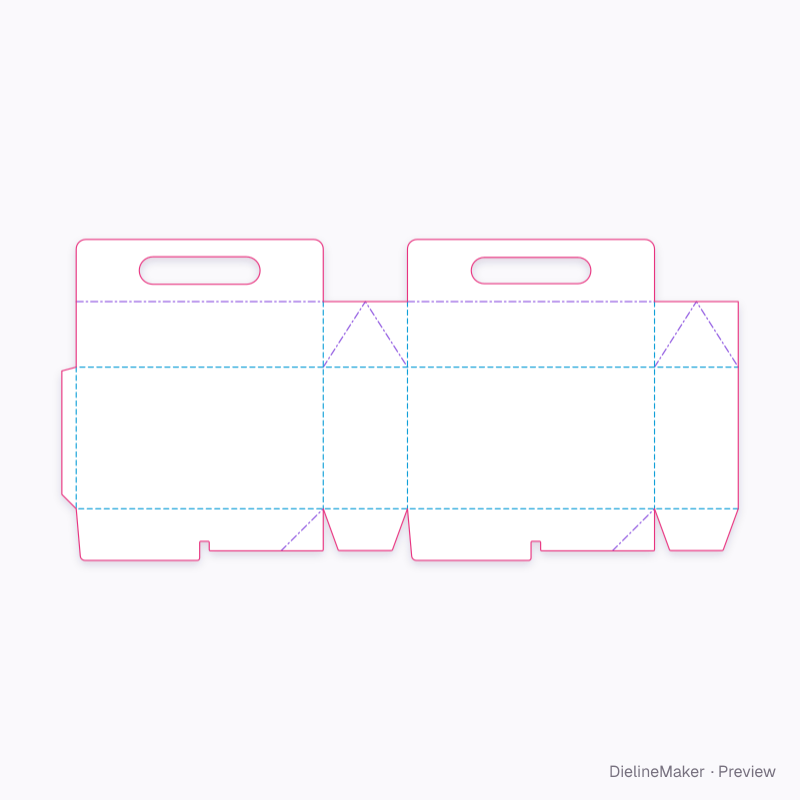

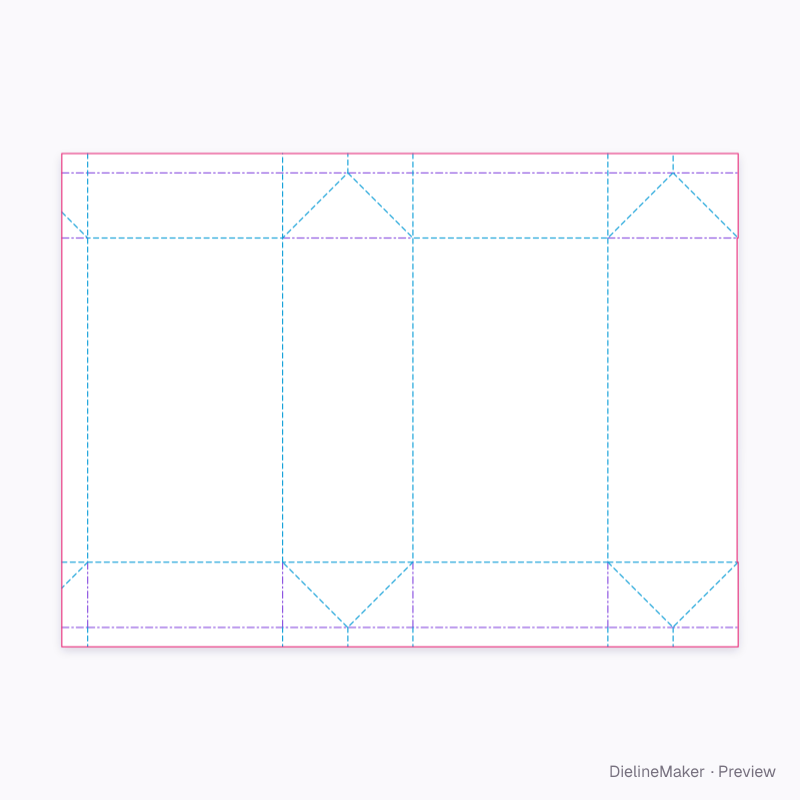

Similar structures
