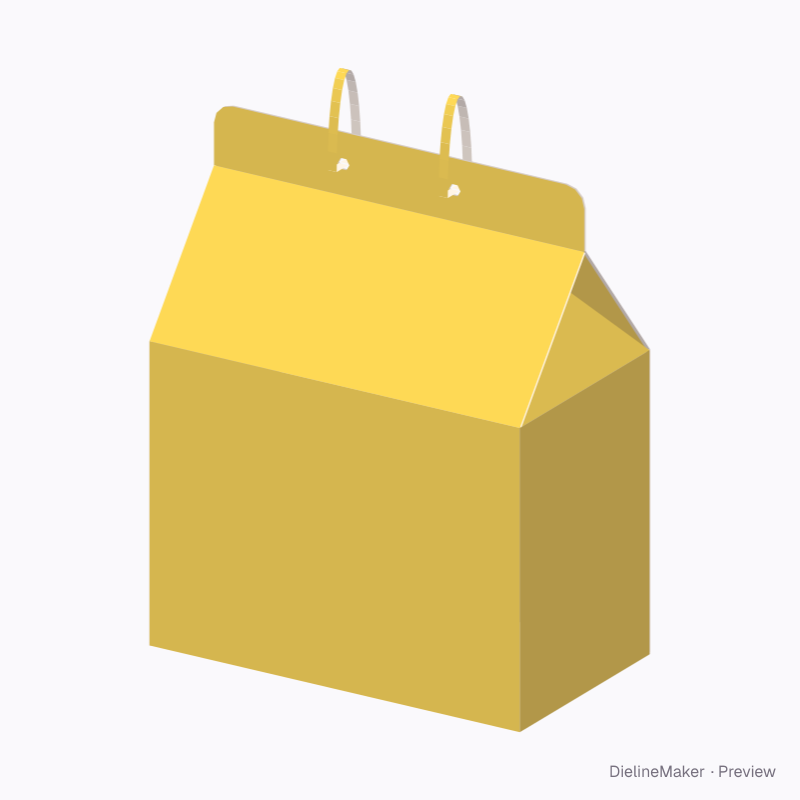

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CORD-GABLE-SNAP-01Food
Cord-tied gable carrier dieline
Pitched roof whose handle panels end in a pair of small cord holes instead of a hand hole; snap-lock bottom. A ready-sized preset of the gable box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 90 × 120 mm
Outside161 × 91 × 121 mm
Flat blank513.5 × 274.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CORD-GABLE-SNAP-01
- Inside size
- Length 160 · Width 90 · Height 120 mm
- Size range
- Length 50–400 · Width 30–250 · Height 30–400 mm
- Manufacturing
- 160.5 × 90.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Gable box, Cord loop 1, Cord loop 2
- Board area
- 0.127 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CORD-GABLE-SNAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontGable box | 160.5 × 120.5 | L + T × H + T |
| Left sideGable box | 90.5 × 120.5 | W + T × H + T |
| BackGable box | 160.5 × 120.5 | L + T × H + T |
| Right sideGable box | 90 × 120.5 | W × H + T |
| Glue flapGable box | 12 × 120.5 | – × H + T |
| Snap endGable box | 90.5 × 30 | W + T × – |
| Snap endGable box | 90 × 30 | W × – |
| Snap bottomGable box | 160.5 × 58.5 | L + T × – |
| Snap tuckGable box | 160.5 × 58 | L + T × – |
| Front roofGable box | 160.5 × 70.5 | L + T × √(rise² + (W/2)²) |
| Back roofGable box | 160.5 × 70.5 | L + T × √(rise² + (W/2)²) |
| Front handleGable box | 160.5 × 25 | L + T × – |
| Back handleGable box | 160.5 × 25 | L + T × – |
| Left gable endGable box | 90.5 × 70.5 | W + T × – |
| Right gable endGable box | 90 × 70.5 | W × – |
| Gable fold-in ×2Gable box | 45.3 × 70.5 | – |
20 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 11 options; the template and 3D preview follow each change.
- Roof heightmm
- Bottom3 options
- Handle holeon / off
- Handle heightmm
- Body windows3 options
- Body window width%
- Body window height%
- Cord holeson / off
- Cord hole diametermm
- Cord hole spacingmm
- Cord colour (preview)6 options
