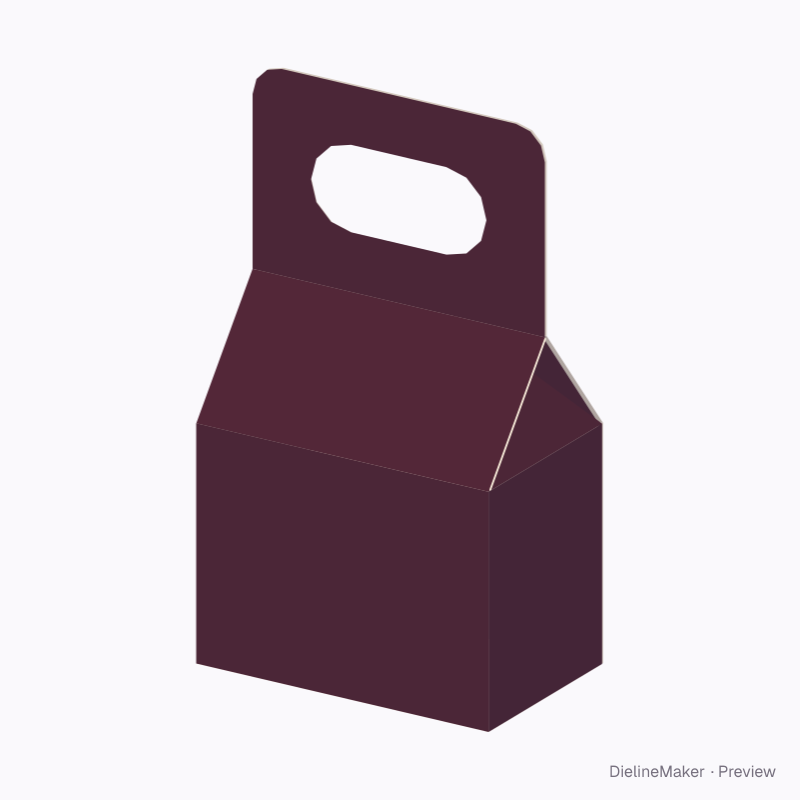

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HANDLED-GABLE-TUCK-01Food
Party favour dieline
Small gable for sweets and party gifts. A ready-sized preset of the gable box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 50 × 60 mm
Outside80.8 × 50.8 × 60.8 mm
Flat blank273.3 × 216.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HANDLED-GABLE-TUCK-01
- Inside size
- Length 80 · Width 50 · Height 60 mm
- Size range
- Length 50–400 · Width 30–250 · Height 30–400 mm
- Manufacturing
- 80.4 × 50.4 × 60.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.043 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HANDLED-GABLE-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80.4 × 60.4 | L + T × H + T |
| Left side | 50.4 × 60.4 | W + T × H + T |
| Back | 80.4 × 60.4 | L + T × H + T |
| Right side | 50 × 60.4 | W × H + T |
| Glue flap | 12 × 60.4 | – × H + T |
| Bottom closure | 80.4 × 49.6 | L + T × W − T |
| Bottom tuck | 79.6 × 15 | L − T × – |
| Bottom dust flap | 50.4 × 32.5 | W + T × – |
| Bottom dust flap | 50 × 32.5 | W × – |
| Front roof | 80.4 × 39.2 | L + T × √(rise² + (W/2)²) |
| Back roof | 80.4 × 39.2 | L + T × √(rise² + (W/2)²) |
| Front handle | 80.4 × 52 | L + T × – |
| Back handle | 80.4 × 52 | L + T × – |
| Left gable end | 50.4 × 39.2 | W + T × – |
| Right gable end | 50 × 39.2 | W × – |
| Gable fold-in ×2 | 25.2 × 39.2 | – |
2 more panels are listed in the editor’s structure step.
