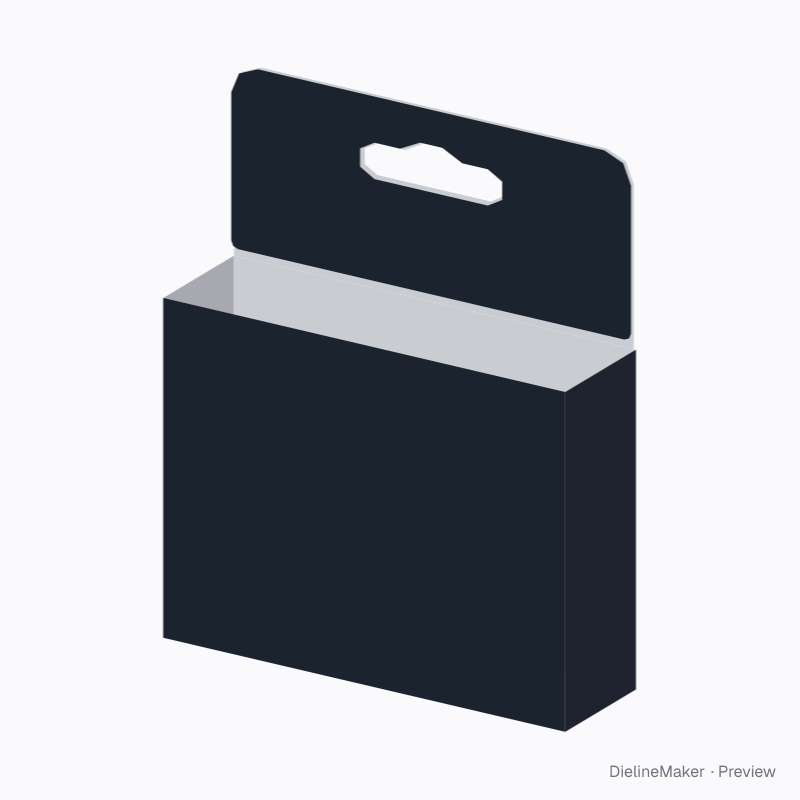

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureSleeves
Cable hang sleeve dieline
Band round a coiled charging cable, ready for a peg hook. A ready-sized preset of the hang sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 25 × 70 mm
Outside91 × 26 × 70 mm
Flat blank243.5 × 148 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 90 · Width 25 · Height 70 mm
- Size range
- Length 30–300 · Width 5–150 · Height 25–300 mm
- Manufacturing
- 90.5 × 25.5 × 70 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.024 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 70 | L + T × H |
| Left side | 25.5 × 70 | W + T × H |
| Back | 90 × 70 | L × H |
| Right side | 25.5 × 70 | W + T × H |
| Glue flap | 12 × 70 | – × H |
| Hang header | 90 × 40 | L × – |
| Header back ply | 78 × 38 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Header heightmm
- Header cornersmm
- Hang hole3 options
- Hole from topmm
- Double-ply headeron / off
The hang sleeve family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cable hang sleeve yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
