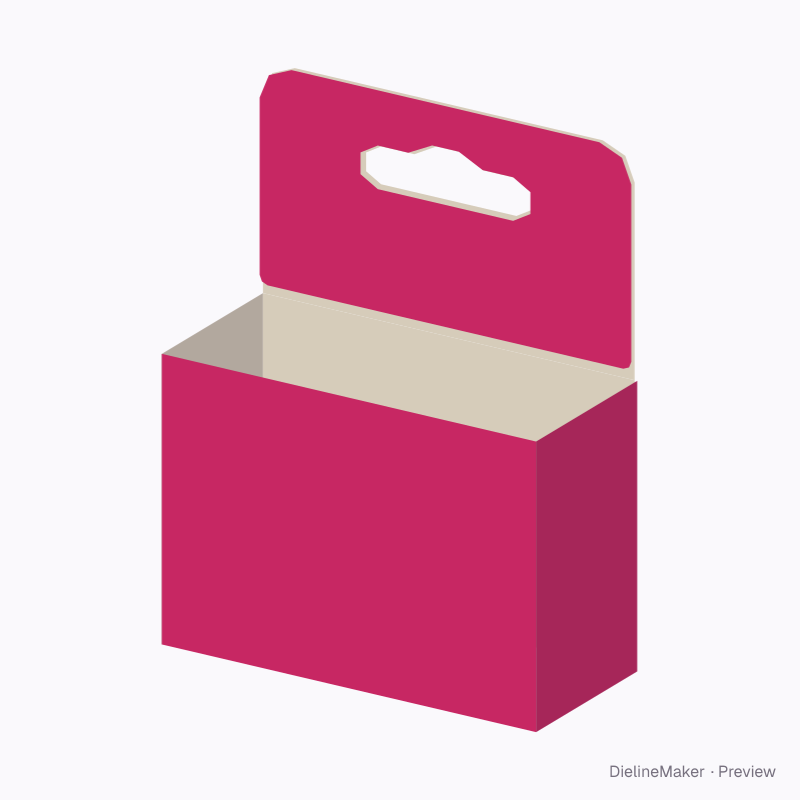

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureSleeves
Hair accessory sleeve dieline
Band for a stack of scrunchies or hair ties on a peg. A ready-sized preset of the hang sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 30 × 50 mm
Outside71 × 31 × 50 mm
Flat blank213.5 × 128 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 70 · Width 30 · Height 50 mm
- Size range
- Length 30–300 · Width 5–150 · Height 25–300 mm
- Manufacturing
- 70.5 × 30.5 × 50 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.016 m² · about 28 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.5 × 50 | L + T × H |
| Left side | 30.5 × 50 | W + T × H |
| Back | 70 × 50 | L × H |
| Right side | 30.5 × 50 | W + T × H |
| Glue flap | 12 × 50 | – × H |
| Hang header | 70 × 40 | L × – |
| Header back ply | 58 × 38 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Header heightmm
- Header cornersmm
- Hang hole3 options
- Hole from topmm
- Double-ply headeron / off
