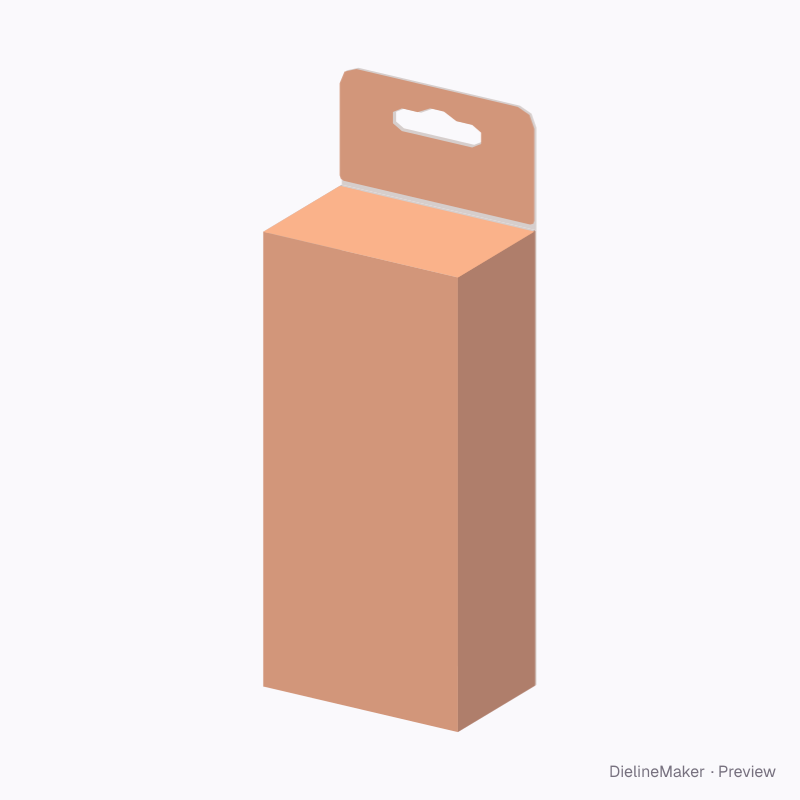

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HANG-CRASH-01Display
Auto-bottom hanging cosmetic carton dieline
A peg-hook carton with a front or back header and a Euro slot. Choose a tuck, snap-lock or pre-glued crash-lock base; fold the header double to print both sides. A ready-sized preset of the hang tab box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 45 × 150 mm
Outside71.2 × 46.2 × 151.2 mm
Flat blank243.8 × 256.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HANG-CRASH-01
- Inside size
- Length 70 · Width 45 · Height 150 mm
- Size range
- Length 25–250 · Width 10–150 · Height 20–400 mm
- Manufacturing
- 70.6 × 45.6 × 150.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.054 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HANG-CRASH-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.6 × 150.6 | L + T × H + T |
| Left side | 45.6 × 150.6 | W + T × H + T |
| Back | 70.6 × 150.6 | L + T × H + T |
| Right side | 45 × 150.6 | W × H + T |
| Glue flap | 12 × 150.6 | – × H + T |
| Top closure | 70.6 × 44.4 | L + T × W − T |
| Top tuck | 69.4 × 15 | L − T × – |
| Top dust flap | 45.6 × 30 | W + T × – |
| Top dust flap | 45 × 30 | W × – |
| Crash-lock flap (back) | 70.6 × 28.3 | L + T × – |
| Glued web | 15.7 × 32.2 | – |
| Bottom side flap | 45.6 × 22.5 | W + T × – |
| Crash-lock flap (front) | 70.6 × 28.3 | L + T × – |
| Glued web | 32.2 × 15.7 | – |
| Bottom side flap | 45 × 22.5 | W × – |
| Hang header | 70.6 × 40 | L + T × – |
1 more panels are listed in the editor’s structure step.
